62 DB2 Recovery Expert for Multiplatforms
5.3 The DB2 log analysis tool
The DB2 log analysis tool is the graphical interface to log analysis that can be
accessed from the DB2 Recovery Expert GUI.
5.3.1 Getting started with the DB2 log analysis tool
To access the DB2 log analysis tool, first launch DB2 Recovery Expert and
connect to a database (as described in 3.4, “Getting started” on page 30).
Select the log analysis function from the Tools menu, as shown in Figure 5-1.

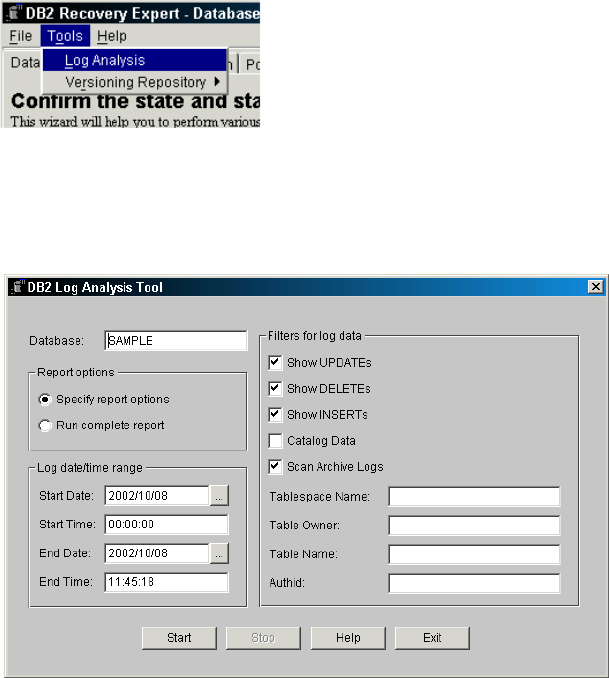

Figure 5-1 Accessing log analysis
The first window of the log analysis interface is shown in Figure 5-2. The various
areas of the initial window are described below.
Figure 5-2 The ...
