36 Servicing Personal Computers
WE-
RAS-
CAS-
A0-
Al -
A2-
A3-
A4-
A5-
A6-
PO
Row
clocks
ΠΟΗ
Column
clocks
Multiplex
clocks
Address
buffers
^
Write
clocks
128
lines
Memory cell
matrix
128 x 128
128
lines
Column decoder
Ή
Data
buffer
D IN
DOUT

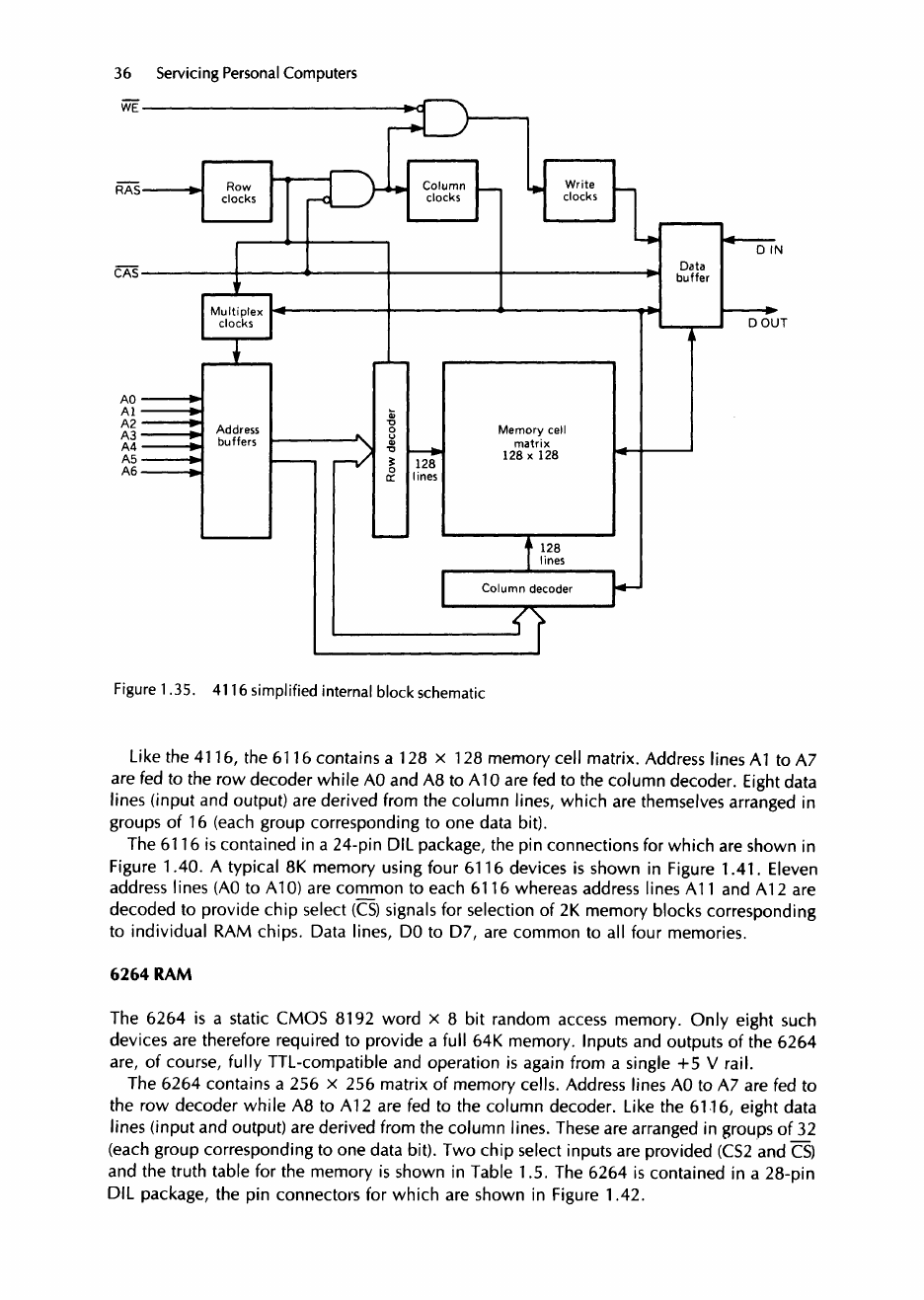

Figure 1.35. 4116 simplified internal block schematic
Like the 4116, the 6116 contains a 128 x 128 memory cell matrix. Address lines A1 to A7
are fed to the row decoder while AO and A8 to A10 are fed to the column decoder. Eight data
lines (input and output) are derived from the column lines, which are themselves arranged in
groups of 16 (each group corresponding to one data bit).
The 6116 is contained in a 24-pi ...
