91
Logic 1
(a)
Logic 1
(d)
Logic 1
(e)
(f)
(9)

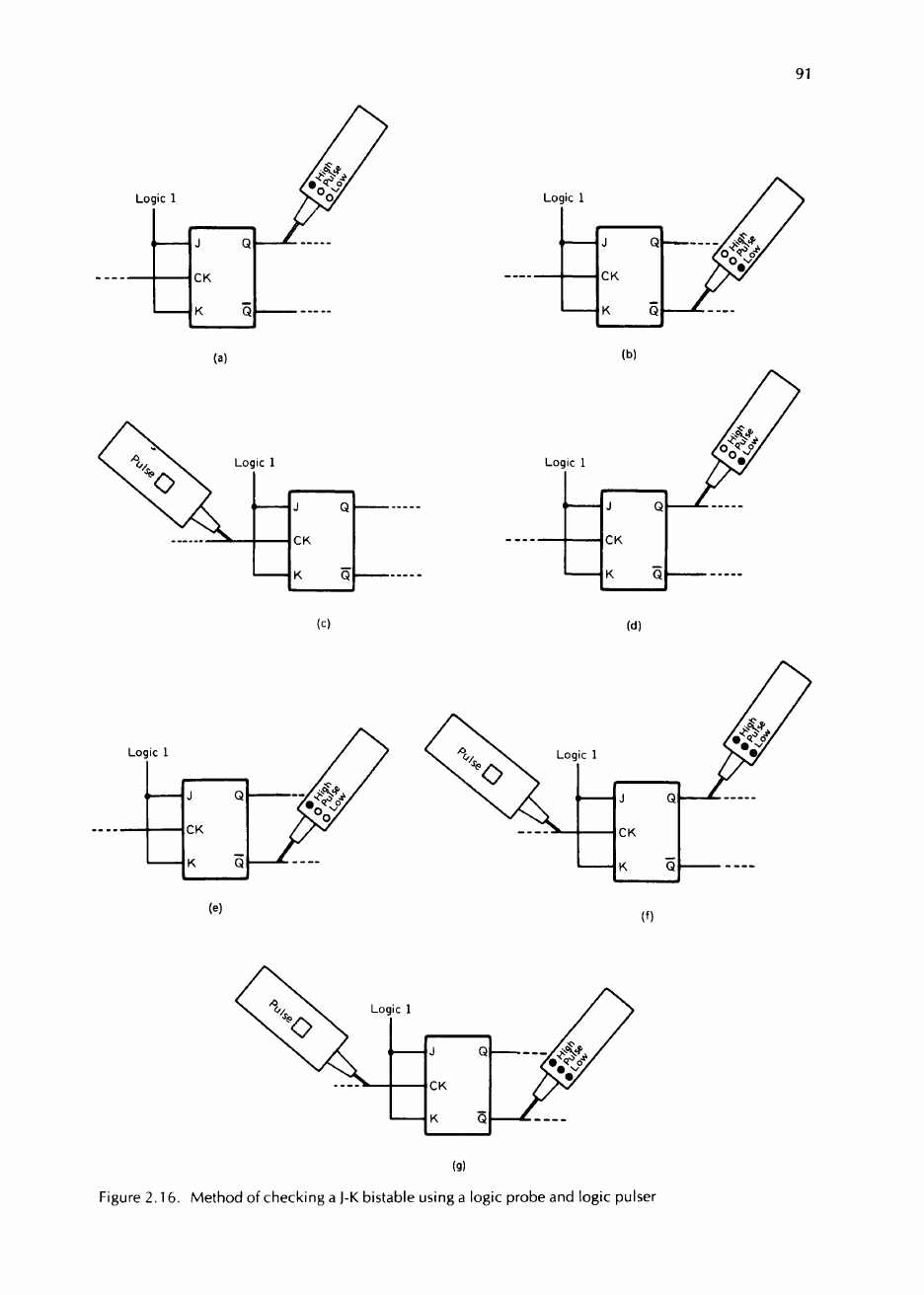

Figure 2.16. Method of checking a J-K bistable using a logic probe and logic puiser
92 Servicing Personal Computers

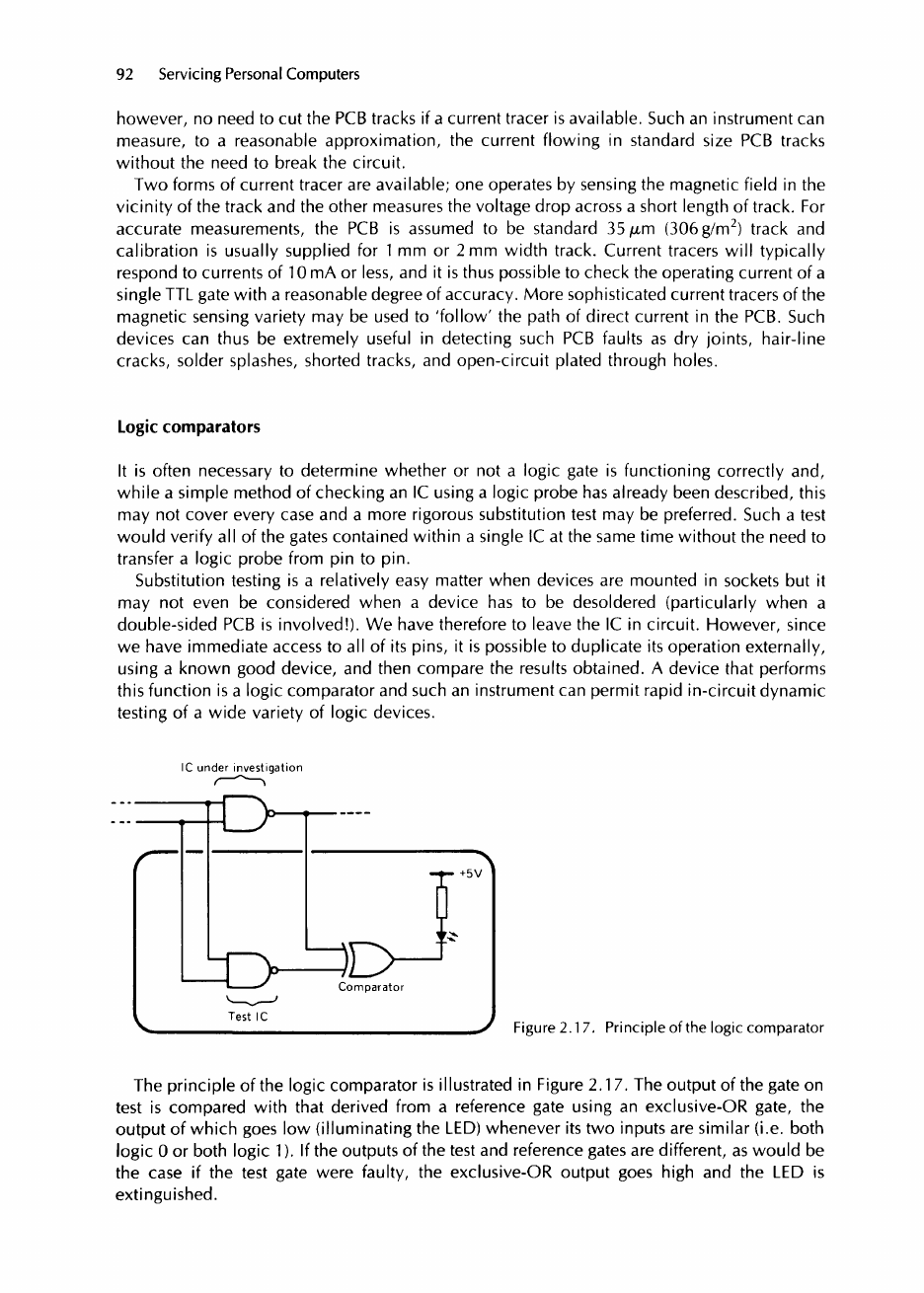

however, no need to cut the PCB tracks if a current tracer is available. Such an instrument can
measure, to a reasonable approximation, the current flowing in standard size PCB tracks
without the need to break the circuit.
Two forms of current tracer are available; one operates by sensing the magnetic field in the
vicinity of the track and the other measures the voltage drop across
