Understanding Visual Tree and Logical Tree

When talking about WPF applications, you will often hear about the Logical Tree and the Visual Tree. The Logical Tree is a tree representation of the .NET classes for user interface controls. Consider the following XAML code:

Click here to view code image

<Window>    <StackPanel Orientation="Horizontal" Margin="5">        <TextBlock Text="Sample controls" Margin="5"/>        <Button Content="Test button" Margin="5"/>    </StackPanel></Window>

This code uses .NET objects within a hierarchical structure that can be reconfigured in a Logical Tree, as shown in Figure 28.8.

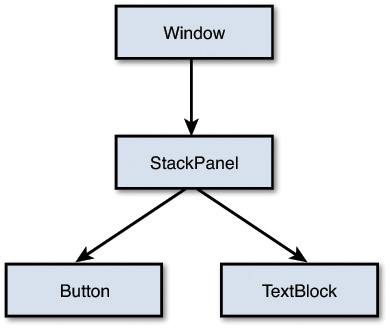

FIGURE 28.8 The Logical Tree ...
