Matrix factorization vs. deep matrix factorization
Matrix factorization vs. deep matrix factorization (source: Courtesy of Jacob Schreiber, used with permission)

Recommendation engines are widely used models that attempt to identify items that a person will like based on that person's past behavior. We're all familiar with Amazon's recommendations based on your past purchasing history, and Netflix recommending shows to you based on your history and the ratings you've given other shows. Naturally, deep learning is behind many of these systems. In this tutorial, we will delve into how to use deep learning to build these recommender systems, and specifically how to implement a technique called matrix factorization using Apache MXNet. It presumes basic familiarity with MXNet.

The Netflix Prize is likely the most famous example many data scientists explored in detail for matrix factorization. Simply put, the challenge was to predict a viewer's rating of shows that they hadn't yet watched based on their ratings of shows that they had watched in the past, as well as the ratings that other viewers had given a show. This takes the form of a matrix where the rows are users, the columns are shows, and the values in the matrix correspond to the rating of the show. Most of the values in this matrix are missing, as users have not rated (or seen) the majority of shows. Below is an illustrative example of what this data tends to look like, where ratings are shown in purple and missing values are denoted in white.

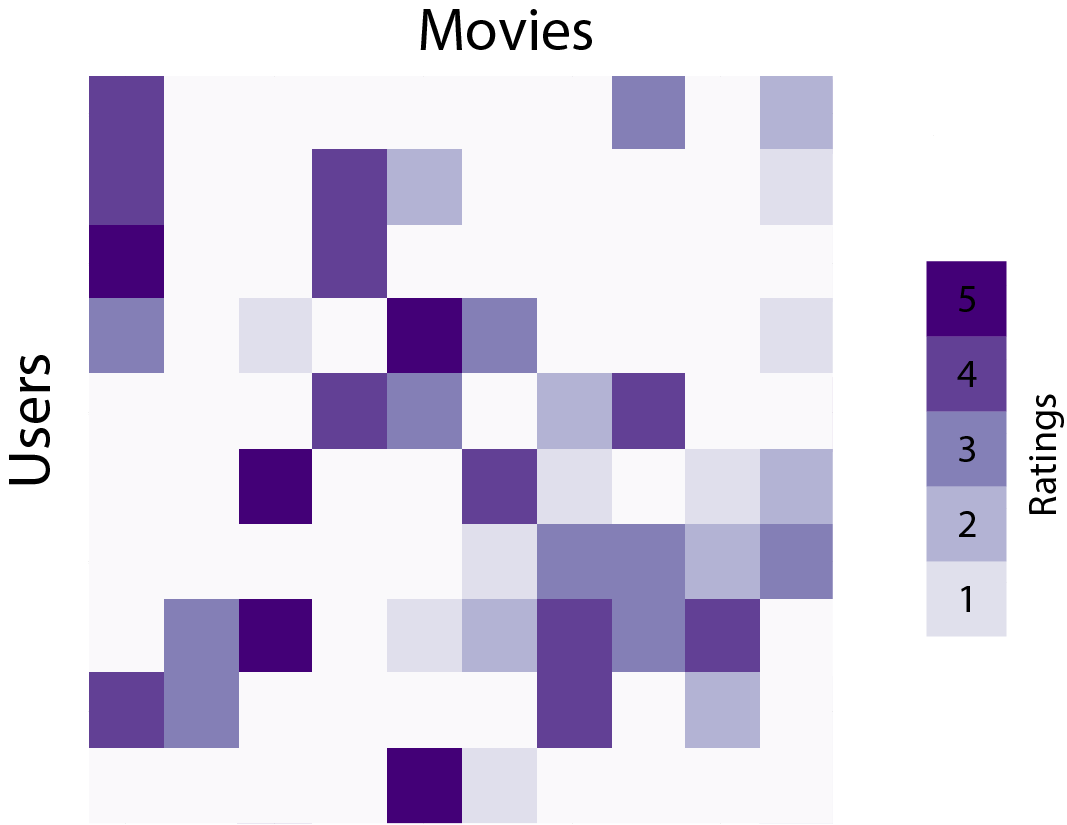

mf matrix
Figure 1. Source: Jacob Schreiber.

The best techniques for filling in these missing values can vary depending on how sparse the matrix is. If there are not many missing values, frequently the mean or median value of the observed values can be used to fill in the missing values. If the data is categorical, as opposed to numeric, the most frequently observed value is used to fill in the missing values. This technique, while simple and fast, is fairly naive, as it misses the interactions that can happen between the variables in a data set. Most egregiously, if the data is numeric and bimodal between two distant values, the mean imputation method can create values that otherwise would not exist in the data set at all. These improper imputed values increase the noise in the data set the sparser it is, so this becomes an increasingly bad strategy as sparsity increases.

Matrix factorization is a simple idea that tries to learn connections between the known values in order to impute the missing values in a smart fashion. Simply put, for each row and for each column, it learns (k) numeric "factors" that represent the row or column. In the example of the Netflix challenge, the factors for movies could correspond to "is this a comedy?" or "is a big name actor/actress in this movie?" The factors for users might correspond to "does this user like comedies?" and "does this user like this actor/actress?" Ratings are then determined by a dot product between these two smaller matrices (the user factors and the movie factors) such that an individual prediction for how user (i) will rate movie (j) is calculated by:

\( rating_{i, j} = \sum\limits_{l=1}^{k} user_{i, l} \cdot movie_{j, l} \)

This would line up the user factor "does this user like comedies?" with the movie factor "is this a comedy?" and give a boost if both were positive.

It is impractical to pre-assign meaning to these factors at large scale; rather, we need to learn the values directly from data. Once these factors are learned using the observational data, a simple dot product between the matrices can allow one to fill in all of the missing values. If two movies are similar to each other, they will likely have similar factors, and their corresponding matrix columns will have similar values. The upside to this approach is that an informative set of factors can be learned automatically from data, but the downside is that the meaning of these factors might not be easily interpretable. This may or may not be an issue for your application. Figure 2 shows the two steps in this approach. On the left is the training step, where the factors are learned using the observed data, and on the right is the prediction step, where the missing values are imputed using the dot product between the two factor matrices.

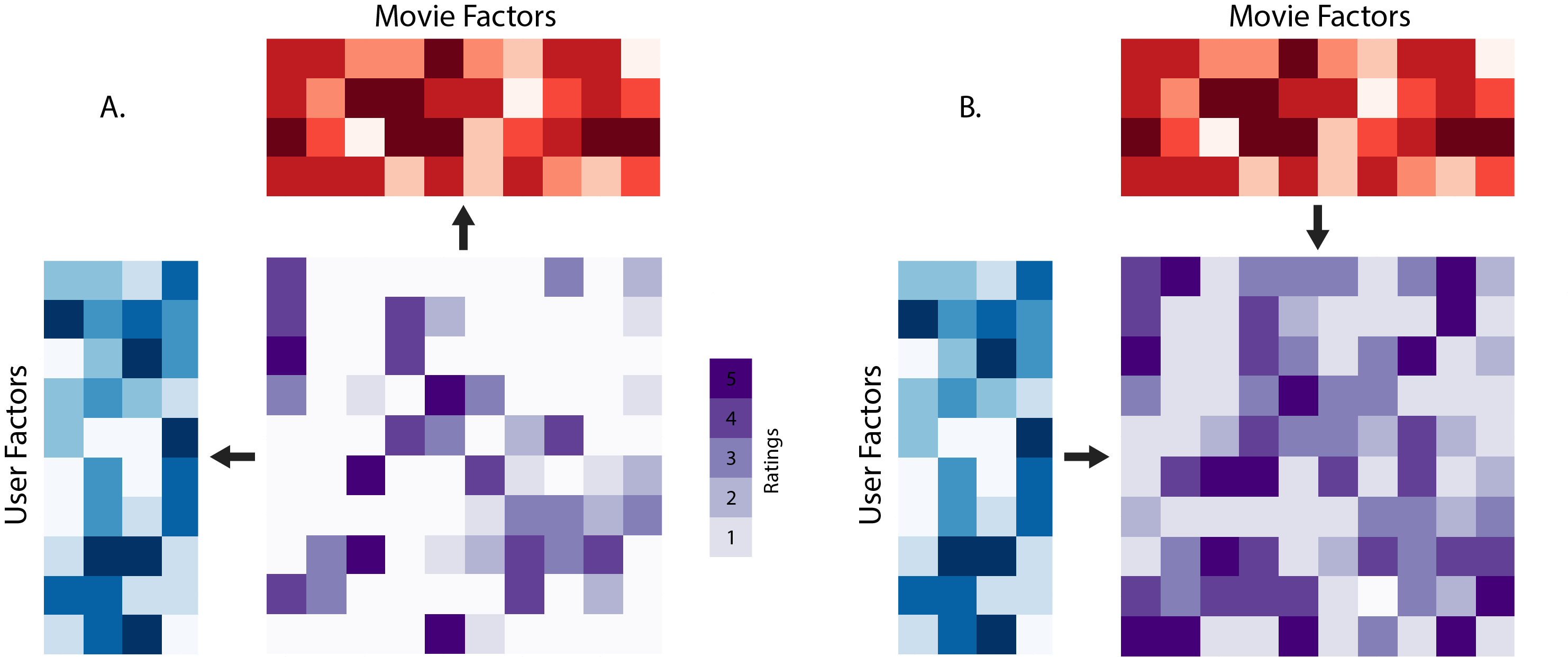

mf matrix factors
Figure 2. Source: Jacob Schreiber.

Matrix factorization is a linear method, meaning that if there are complicated non-linear interactions going on in the data set, a simple dot product may not be able to handle it well. Given the recent success of deep learning in complicated non-linear computer vision and natural language processing tasks, it is natural to want to find a way to incorporate it into matrix factorization as well. A way to do this is called "deep matrix factorization" and involves the replacement of the dot product with a neural network that is trained jointly with the factors. This makes the model more powerful because a neural network can model important non-linear combinations of factors to make better predictions.

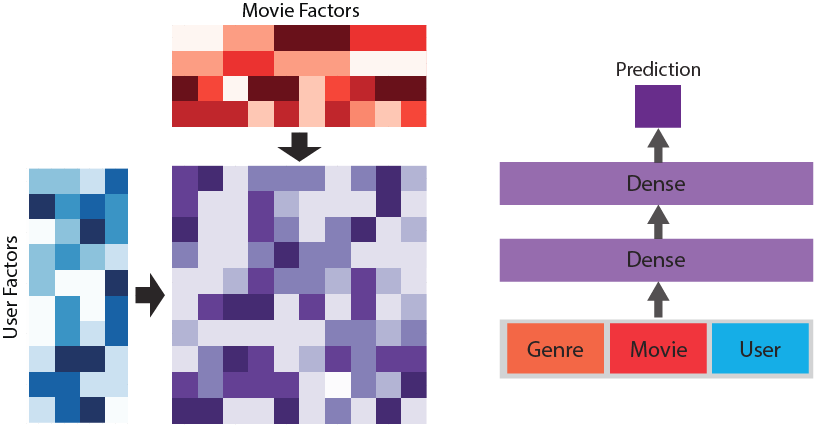

Figure 3 shows a comparison of the two methods.

mf dmf comparison
Figure 3. Source: Jacob Schreiber.

In traditional matrix factorization, the prediction is the simple dot product between the factors for each of the dimensions. In contrast, in deep matrix factorization the factors for both are concatenated together and used as the input to a neural network whose output is the prediction. The parameters in the neural network are then trained jointly with the factors to produce a sophisticated non-linear model for matrix factorization.

This tutorial will first introduce both traditional and deep matrix factorization by using them to model synthetic data. We will then move on to a real-world example and apply these concepts to model the MovieLens 20M data set, which is conceptually identical to the Netflix Prize challenge. Lastly, we'll explore how one can use recent advances in deep learning and the flexibility of neural networks to build even more complex models. While this may sound complicated, fortunately Apache MXNet makes it easy!

%pylab inline
import mxnet as mx
import pandas
import seaborn; seaborn.set_style('whitegrid')
import logging
logger = logging.getLogger()
logger.setLevel(logging.DEBUG)

Populating the interactive namespace from numpy and matplotlib

Matrix factorization on synthetic data

Let's start off by playing with some randomly generated values. For simpliciy, let's generate a small matrix of values that are all normally distributed representing 250 "users" and 250 "movies."

X = numpy.random.randn(250, 250)

(X) is currently a complete matrix, meaning that there are no missing values. We will first need to remove a subset of values from the matrix. The best way to use MXNet for this task isn't to operate on a matrix of values, but rather to transform the data into a tuple—(row, col, value)—so prediction means predicting a single value in the matrix instead of the entire matrix. Fortunately, we can accomplish both tasks simultaneously in Python by randomly generating row indices and column indices, and then extracting the values from the matrix. We may get some duplicates using this method, but it shouldn't matter too much in the grand scheme of things.

n = 35000
i = numpy.random.randint(250, size=n) # Generate random row indexes
j = numpy.random.randint(250, size=n) # Generate random column indexes
X_values = X[i, j] # Extract those values from the matrix
print(X_values.shape)

(35000,)

We can see that by selecting out a subset of the values (selecting 35,000 from the 250 * 250 = 62,500 matrix), we've gone from a matrix with two dimensions to a vector with only a single dimension. We can plot a histogram of the observed values in the matrix to get a better sense of the distribution.

plt.title("Distribution of Data in Matrix", fontsize=16)
plt.ylabel("Count", fontsize=14)
plt.xlabel("Value", fontsize=14)
plt.hist(X_values, bins=100)
plt.show()

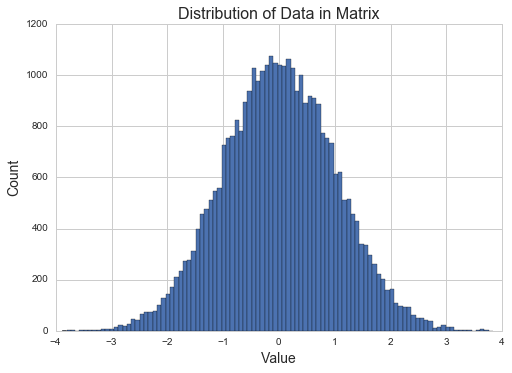

mf dmf comparison
Figure 4. Source: Jacob Schreiber.

As expected, it appears to be a normal distribution that is centered around 0 with a variance of 1.

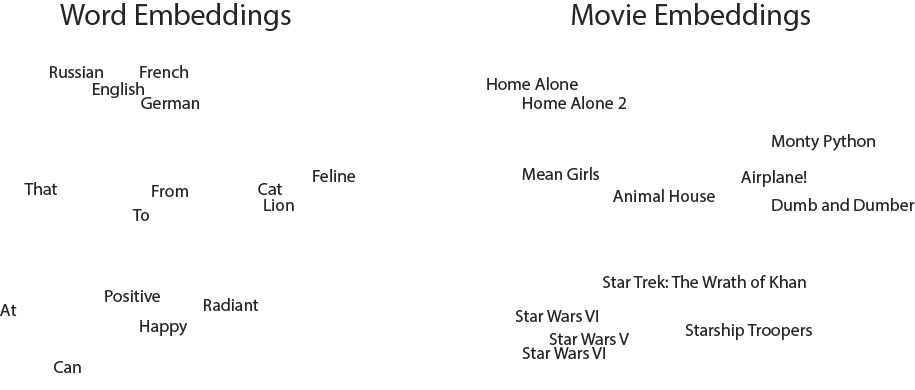

A core component of the matrix factorization model will be the embedding layer. This layer takes in an integer and outputs a dense array of learned features. This is widely used in natural language processing, where the input would be words and the output might be the features related to those words' sentiment. The strength of this layer is the ability for the network to learn what useful features are instead of needing them to be predefined. Below is an illustrative example of the output of a two dimensional embedding layer. We can see that on the left, words that mean similar things cluster together, such as languages toward the top and positive words near the bottom. One can do a similar thing for movies (on the right) and observe that comedies seem to cluster toward the center and sci-fi clusters closer to the bottom. This is useful for our model because if we learn that a user likes one comedy, we can infer that they will have a higher ranking for another comedy based on their co-localization in this embedding space.

embedding space
Figure 5. Source: Jacob Schreiber.

In our implementation, the input dimension of the embedding layer is 250 because there are 250 rows and columns in the data we generated, and the output dimension is set to 25 in order to learn a lower dimensional representation of size 25. This can be set as high or low as desired, with a higher dimensional feature space potentially being more powerful but slower to learn, and potentially prone to overfitting as the model has more parameters.

user = mx.symbol.Variable("user") # Name one of our input variables, the user index
# Define an embedding layer that takes in a user index and outputs a dense 25 dimensional vector
user = mx.symbol.Embedding(data=user, input_dim=250, output_dim=25)

movie = mx.symbol.Variable("movie") # Name the other input variable, the movie index
# Define an embedding layer that takes in a movie index and outputs a dense 25 dimensional vector
movie = mx.symbol.Embedding(data=movie, input_dim=250, output_dim=25)

# Name the output variable. "softmax_label" is the default name for outputs in mxnet
y_true = mx.symbol.Variable("softmax_label")

# Define the dot product between the two variables, which is the elementwise multiplication and a sum
y_pred = mx.symbol.sum_axis(data=(user * movie), axis=1)
y_pred = mx.symbol.flatten(y_pred)

# The linear regression output defines the loss we want to use to train the network, mse in this case
y_pred = mx.symbol.LinearRegressionOutput(data=y_pred, label=y_true)

We just implemented vanilla matrix factorization! It is a fairly simple model when expressed this way. All we need to do is define an embedding layer for the users and one for the movies, then define the dot product between these two layers as the prediction. Keep in mind that while we've used MXNet to implement this model, it does not yet utilize a deep neural network.

We next need to convert our data from the form of three vectors (the row IDs, column IDs, and values) into an appropriate iterator that MXNet can use. Since we have multiple inputs (the movie and the user), the NDArrayIter object is the most convenient as it can handle arbitrary inputs and outputs through the use of dictionaries. By considering this problem on a single rating granularity instead of as the full matrix, we can transform the problem fairly simply into a supervised learning problem that plays well with the MXNet framework!

# Build a data iterator for training data using the first 25,000 samples
X_train = mx.io.NDArrayIter({'user': i[:25000], 'movie': j[:25000]}, label=X_values[:25000], batch_size=1000)

# Build a data iterator for evaluation data using the last 10,000 samples
X_eval = mx.io.NDArrayIter({'user': i[25000:], 'movie': j[25000:]}, label=X_values[25000:], batch_size=1000)

We aren't quite done yet. We've only defined the symbolic architecture of the network. We now need to specify that the architecture is a model to be trained using the Module wrapper. We first define the context that the network will live on, either the CPU or GPU, the names of the inputs, and the final symbol in the network. In this tutorial, we will use a single GPU to train the network. You can use multiple GPUs by passing in a list such as [mx.gpu(0), mx.gpu(1)]. Given that the examples we are dealing with in this tutorial are fairly simple and don't involve convolutional layers, it likely won't be very beneficial to use multiple GPUs.

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)

Next, we need to fit the network using the fit function, similar to scikit-learn and other popular machine learning packages. We can specify the number of epochs we would like to train for, the validation set data through eval_data, and the metric used to evaluate both the training and validation sets during training. In this case, we choose root mean squared error (rmse), which is a common choice in regression problems such as this—it penalizes large errors more than small ones. This makes sense in a recommendation context, where offering a user something slightly unexpected may be a virtue, but getting a recommendation totally wrong might be off-putting.

model.fit(X_train, num_epoch=5, eval_metric='rmse', eval_data=X_eval)

INFO:root:Epoch[0] Train-rmse=1.009686
INFO:root:Epoch[0] Time cost=0.077
INFO:root:Epoch[0] Validation-rmse=1.014206
INFO:root:Epoch[1] Train-rmse=1.009686
INFO:root:Epoch[1] Time cost=0.085
INFO:root:Epoch[1] Validation-rmse=1.014206
INFO:root:Epoch[2] Train-rmse=1.009686
INFO:root:Epoch[2] Time cost=0.071
INFO:root:Epoch[2] Validation-rmse=1.014206
INFO:root:Epoch[3] Train-rmse=1.009686
INFO:root:Epoch[3] Time cost=0.046
INFO:root:Epoch[3] Validation-rmse=1.014206
INFO:root:Epoch[4] Train-rmse=1.009686
INFO:root:Epoch[4] Time cost=0.035
INFO:root:Epoch[4] Validation-rmse=1.014206

It doesn't really seem like it's training because the validation mean squared error is not changing epoch by epoch. This is because in the data set we randomly generated, there was no connection between the values in the matrix that could be exploited by a machine learning model—we just generated random values with no dependence on each other, and then blanked many of them out. The "movie watchers" don't have any preferences, they just randomly like or don't like movies! It would be impossible to predict what these values are using matrix factorization. This is a key concept to keep in mind—if you don't believe there is any connection between the values that are observed and the values that are missing, it will be impossible to predict the missing values solely from the observed ones.

Let's now create some synthetic data that has a structure that can be exploited instead of evenly distributed random values. We can do this by first randomly generating two lower-rank matrices, one for the rows and one for the columns, and taking the dot product between them. This essentially mirrors the matrix factorization task by saying there is a lower-dimensional structure that our model can learn to be a good predictor of missing values.

a = numpy.random.normal(0, 1, size=(250, 25)) # Generate random numbers for the first skinny matrix
b = numpy.random.normal(0, 1, size=(25, 250)) # Generate random numbers for the second skinny matrix

X = a.dot(b) # Build our real data matrix from the dot product of the two skinny matrices

n = 35000
i = numpy.random.randint(250, size=n)
j = numpy.random.randint(250, size=n)
X_values = X[i, j]

X_train = mx.io.NDArrayIter({'user': i[:25000], 'movie': j[:25000]}, label=X_values[:25000], batch_size=100)
X_eval = mx.io.NDArrayIter({'user': i[25000:], 'movie': j[25000:]}, label=X_values[25000:], batch_size=100)

Let's take a look at the distribution of data like before by plotting a histogram of the values in this matrix.

plt.title("Distribution of Data in Matrix", fontsize=16)
plt.ylabel("Count", fontsize=14)
plt.xlabel("Value", fontsize=14)
plt.hist(X_values, bins=100)
plt.show()

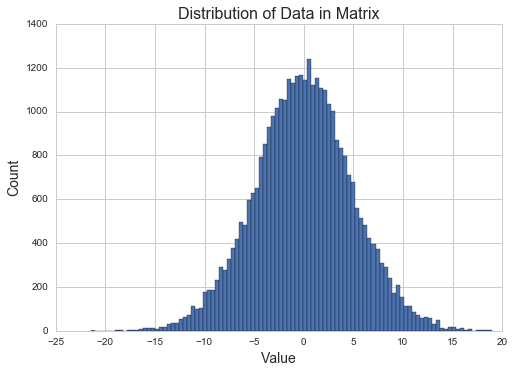

embedding space
Figure 6. Source: Jacob Schreiber.

It looks like another normal distribution, except with a larger variance. This makes sense theoretically, because the dot product of two matrices of normally distributed values is also normally distributed.

Now that we've created this new data set and the appropriate iterators, we can create the model again and try to learn something.

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, eval_metric='mse', eval_data=X_eval)

INFO:root:Epoch[0] Train-mse=24.250952
INFO:root:Epoch[0] Time cost=0.206
INFO:root:Epoch[0] Validation-mse=24.078770
INFO:root:Epoch[1] Train-mse=24.250941
INFO:root:Epoch[1] Time cost=0.238
INFO:root:Epoch[1] Validation-mse=24.078767
INFO:root:Epoch[2] Train-mse=24.250929
INFO:root:Epoch[2] Time cost=0.149
INFO:root:Epoch[2] Validation-mse=24.078764
INFO:root:Epoch[3] Train-mse=24.250918
INFO:root:Epoch[3] Time cost=0.188
INFO:root:Epoch[3] Validation-mse=24.078761
INFO:root:Epoch[4] Train-mse=24.250907
INFO:root:Epoch[4] Time cost=0.199
INFO:root:Epoch[4] Validation-mse=24.078758

It doesn't seem like we're learning anything again because neither the training nor the validation mse goes down epoch by epoch. The problem this time is that, like many matrix factorization algorithms, we are using stochastic gradient descent (SGD), which is tricky to set an appropriate learning rate for. However, since we've implemented matrix factorization using Apache MXNet we can easily use a different optimizer. Adam is a popular optimizer that can automatically tune the learning rate to get better results, and we can specify that we want to use it by adding in optimizer='adam' to the fit function.

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', eval_metric='mse', eval_data=X_eval)

INFO:root:Epoch[0] Train-mse=23.469048
INFO:root:Epoch[0] Time cost=0.273
INFO:root:Epoch[0] Validation-mse=21.070660
INFO:root:Epoch[1] Train-mse=15.098957
INFO:root:Epoch[1] Time cost=0.229
INFO:root:Epoch[1] Validation-mse=14.016162
INFO:root:Epoch[2] Train-mse=8.175886
INFO:root:Epoch[2] Time cost=0.226
INFO:root:Epoch[2] Validation-mse=10.487469
INFO:root:Epoch[3] Train-mse=5.157359
INFO:root:Epoch[3] Time cost=0.218
INFO:root:Epoch[3] Validation-mse=8.288769
INFO:root:Epoch[4] Train-mse=3.552385
INFO:root:Epoch[4] Time cost=0.232
INFO:root:Epoch[4] Validation-mse=6.721521

That is much better! It looks like we are able to get significantly improved results using the Adam optimizer rather than SGD. It also appears that the model is able to perform extremely well on a validation set. This is likely because the task is fairly easy: we synthetically created our data set without noise from a low-dimensional representation, and then learned that representation using matrix factorization.

Let's now take a look at what deep matrix factorization would look like. Essentially, we want to replace the dot product that turns the factors into a prediction with a neural network that takes in the factors as input and predicts the output. We can modify the model code fairly simply to achieve this.

user = mx.symbol.Variable("user")
user = mx.symbol.Embedding(data=user, input_dim=250, output_dim=25)

movie = mx.symbol.Variable("movie")
movie = mx.symbol.Embedding(data=movie, input_dim=250, output_dim=25)

y_true = mx.symbol.Variable("softmax_label")

# No longer using a dot product
#y_pred = mx.symbol.sum_axis(data=(user * movie), axis=1)
#y_pred = mx.symbol.flatten(y_pred)
#y_pred = mx.symbol.LinearRegressionOutput(data=y_pred, label=y_true)

# Instead of taking the dot product we want to concatenate the inputs together
nn = mx.symbol.concat(user, movie)
nn = mx.symbol.flatten(nn)

# Now we pass both the movie and user factors into a one layer neural network
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)

# We use a ReLU activation function here, but one could use any type including PReLU or sigmoid
nn = mx.symbol.Activation(data=nn, act_type='relu')

# Now we define our output layer, a dense layer with a single neuron containing the prediction
nn = mx.symbol.FullyConnected(data=nn, num_hidden=1)

# We don't put an activation on the prediction here because it is the output of the model
y_pred = mx.symbol.LinearRegressionOutput(data=nn, label=y_true)

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', optimizer_params=(('learning_rate', 0.001),),
          eval_metric='mse', eval_data=X_eval)

INFO:root:Epoch[0] Train-mse=24.251155
INFO:root:Epoch[0] Time cost=0.386
INFO:root:Epoch[0] Validation-mse=24.073365
INFO:root:Epoch[1] Train-mse=24.069941
INFO:root:Epoch[1] Time cost=0.346
INFO:root:Epoch[1] Validation-mse=23.996876
INFO:root:Epoch[2] Train-mse=23.561898
INFO:root:Epoch[2] Time cost=0.367
INFO:root:Epoch[2] Validation-mse=23.830399
INFO:root:Epoch[3] Train-mse=23.010173
INFO:root:Epoch[3] Time cost=0.335
INFO:root:Epoch[3] Validation-mse=23.646338
INFO:root:Epoch[4] Train-mse=22.609636
INFO:root:Epoch[4] Time cost=0.321
INFO:root:Epoch[4] Validation-mse=23.523100

The only difference to our code is that we have to define a neural network. The inputs to this network are the concatenated factors from the embedding layer, created using mx.symbol.concat. Next, we flatten the result just to ensure the right shape using mx.symbol.flatten, and then use mx.symbol.FullyConnected and mx.symbol.Activation layers as necessary to define the network. The final fully connected layer must have a single node, as this is the final prediction that the network is making.

We can see that while the neural network is clearly training due to the validation mse decreasing after each epoch, it is not decreasing as quickly as normal matrix factorization. The optimal learning parameters are almost always different between the two due to the neural network's added complexity. In this tutorial, we won't pursue the optimal values for hyperparameters like learning rate or weight decay, but instead focus structurally on the things you can do with deep matrix factorization.

MovieLens 20M

Now let's move on to a real example using the MovieLens 20M data set. This data is comprised of movie ratings from the MovieLens site (https://movielens.org/), a site that will predict what other movies you will like after seeing you rate movies. The MovieLens 20M data set is a sampling of about 20 million ratings from about 138,000 users on about 27,000 movies. The ratings range from 0.5 to 5 stars in 0.5 star increments.

Note: Given that we are about to train neural networks on millions of samples, the following cells may take some time to execute on a CPU and may produce a lot of output. At least 6GB of RAM is suggested for running the cells. If you have a GPU or a cloud environment, now would be the time to use it (you can stand up an AWS Machine Image for deep learning fairly straightforwardly, for example).

Let's first load up the data and inspect it manually.

import os
import urllib.request
import zipfile

# If we don't have the data yet, download it from the appropriate source
if not os.path.exists('ml-20m.zip'):
    urllib.request.urlretrieve('http://files.grouplens.org/datasets/movielens/ml-20m.zip', 'ml-20m.zip')

# Now extract the data since we know we have it at this point
with zipfile.ZipFile("ml-20m.zip", "r") as f:
    f.extractall("./")

# Now load it up using a pandas dataframe
data = pandas.read_csv('./ml-20m/ratings.csv', sep=',', usecols=(0, 1, 2))
data.head()
userId movieId rating
0 1 2 3.5
1 1 29 3.5
2 1 32 3.5
3 1 47 3.5
4 1 50 3.5

It looks like there are slightly over 20M ratings that comprise a user ID, a movie ID, and a rating in 0.5 star increments. Each one of these rows will be a sample to train on, as we want our model to take in a user and a movie, and predict the rating that user would give to that movie. Let's take a look at the distribution of ratings before moving on.

plt.hist(data['rating'])
plt.xlabel("Rating", fontsize=14)
plt.ylabel("Count", fontsize=14)
plt.title("Distribution of Ratings in MovieLens 20M", fontsize=14)
plt.show()

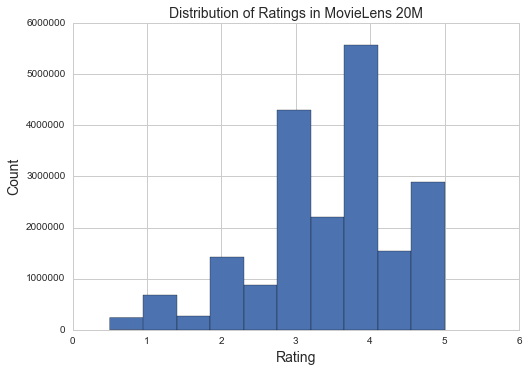

embedding space
Figure 7. Source: Jacob Schreiber.

It looks like this is a fairly normal distribution, with the most ratings being that a movie was good but not amazing, and the fewest ratings that movies were very poor. It also seems like people were more reluctant to rate a movie using one of the half star increments than with the full star increments.

Let's next quickly look at the users and movies. Specifically, let's look at the maximum and minimum ID values, and the number of unique users and movies.

print("user id min/max: ", data['userId'].min(), data['userId'].max())
print("# unique users: ", numpy.unique(data['userId']).shape[0])
print("")
print("movie id min/max: ", data['movieId'].min(), data['movieId'].max())
print("# unique movies: ", numpy.unique(data['movieId']).shape[0])

user id min/max: 1 138493
# unique users: 138493

movie id min/max: 1 131262
# unique movies: 26744

It looks like the max user ID is equal to the number of unique users, but this is not the case for the number of movies. Good thing we caught this now, otherwise we may have encountered errors if we assumed that because there are only 26,744 unique movies, the maximum movie ID was 26,744 as well. Let's quickly set these sizes so that later on, we can set the embedding layer size appropriately.

n_users, n_movies = 138493, 131262
batch_size = 25000

We can quickly estimate the sparsity of the MovieLens 20M data set using these numbers. If there are ~138K unique users and ~27K unique movies, then there are ~3.7 billion entries in the matrix. Since only ~20M of these are present, ~99.5% of the matrix is missing. This type of massive sparsity is common in recommender systems and underlies the necessity of building models that can leverage the existing data to learn complex relationships.

Next, we need to split the data into a training set and a test set. Let's first shuffle the data to ensure it's randomly selected, then we can use the first 19 million samples for training and the remaining for the test set.

n = 19000000

data = data.sample(frac=1).reset_index(drop=True) # Shuffle the data in place row-wise

# Use the first 19M samples to train the model
train_users = data['userId'].values[:n] - 1 # Offset by 1 so that the IDs start at 0
train_movies = data['movieId'].values[:n] - 1 # Offset by 1 so that the IDs start at 0
train_ratings = data['rating'].values[:n]

# Use the remaining ~1M samples for validation of the model
valid_users = data['userId'].values[n:] - 1 # Offset by 1 so that the IDs start at 0
valid_movies = data['movieId'].values[n:] - 1 # Offset by 1 so that the IDs start at 0
valid_ratings = data['rating'].values[n:]

Let's first see how well vanilla matrix factorization works on this example. We use roughly the same code from before, creating a NDArrayIter from the actual MovieLens data set rather than from synthetically generated data. We'll keep all optimization parameters the same for this example.

X_train = mx.io.NDArrayIter({'user': train_users, 'movie': train_movies},
                            label=train_ratings, batch_size=batch_size)
X_eval = mx.io.NDArrayIter({'user': valid_users, 'movie': valid_movies},
                           label=valid_ratings, batch_size=batch_size)

user = mx.symbol.Variable("user")
user = mx.symbol.Embedding(data=user, input_dim=n_users, output_dim=25)

movie = mx.symbol.Variable("movie")
movie = mx.symbol.Embedding(data=movie, input_dim=n_movies, output_dim=25)

y_true = mx.symbol.Variable("softmax_label")
y_pred = mx.symbol.sum_axis(data=(user * movie), axis=1)
y_pred = mx.symbol.flatten(y_pred)
y_pred = mx.symbol.LinearRegressionOutput(data=y_pred, label=y_true)

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', optimizer_params=(('learning_rate', 0.001),),
          eval_metric='rmse', eval_data=X_eval, batch_end_callback=mx.callback.Speedometer(batch_size, 250))

INFO:root:Epoch[0] Batch [250] Speed: 200059.34 samples/sec rmse=3.358977
INFO:root:Epoch[0] Batch [500] Speed: 192168.53 samples/sec rmse=1.812172
INFO:root:Epoch[0] Batch [750] Speed: 164999.06 samples/sec rmse=1.181464
INFO:root:Epoch[0] Train-rmse=1.059567
INFO:root:Epoch[0] Time cost=103.198
INFO:root:Epoch[0] Validation-rmse=1.060748
INFO:root:Epoch[1] Batch [250] Speed: 177878.44 samples/sec rmse=1.002401
INFO:root:Epoch[1] Batch [500] Speed: 191904.70 samples/sec rmse=0.936251
INFO:root:Epoch[1] Batch [750] Speed: 186608.02 samples/sec rmse=0.904792
INFO:root:Epoch[1] Train-rmse=0.889933
INFO:root:Epoch[1] Time cost=102.346
INFO:root:Epoch[1] Validation-rmse=0.895546
INFO:root:Epoch[2] Batch [250] Speed: 144105.82 samples/sec rmse=0.887525
INFO:root:Epoch[2] Batch [500] Speed: 169424.02 samples/sec rmse=0.878834
INFO:root:Epoch[2] Batch [750] Speed: 184188.96 samples/sec rmse=0.873441
INFO:root:Epoch[2] Train-rmse=0.866750
INFO:root:Epoch[2] Time cost=115.381
INFO:root:Epoch[2] Validation-rmse=0.872793
INFO:root:Epoch[3] Batch [250] Speed: 183870.93 samples/sec rmse=0.868966
INFO:root:Epoch[3] Batch [500] Speed: 176047.45 samples/sec rmse=0.866003
INFO:root:Epoch[3] Batch [750] Speed: 199179.32 samples/sec rmse=0.863830
INFO:root:Epoch[3] Train-rmse=0.858353
INFO:root:Epoch[3] Time cost=102.208
INFO:root:Epoch[3] Validation-rmse=0.865057
INFO:root:Epoch[4] Batch [250] Speed: 192026.08 samples/sec rmse=0.861179
INFO:root:Epoch[4] Batch [500] Speed: 191707.03 samples/sec rmse=0.859217
INFO:root:Epoch[4] Batch [750] Speed: 199780.40 samples/sec rmse=0.857713
INFO:root:Epoch[4] Train-rmse=0.852497
INFO:root:Epoch[4] Time cost=97.541
INFO:root:Epoch[4] Validation-rmse=0.860001

It looks like we're learning something on this data set! We can see that both the training and the validation RMSE decrease epoch by epoch. Each epoch takes significantly longer than with the synthetic data because we're training on 19 million examples instead of 25,000.

Let's now turn to deep matrix factorization. We'll use similar code as before, where we concatenate together the two embedding layers and use that as input to two fully connected layers. This network will have the same sized embedding layers as the normal matrix factorization and optimization parameters, meaning the only change is that a neural network is doing the prediction instead of a dot product.

X_train = mx.io.NDArrayIter({'user': train_users, 'movie': train_movies},
                            label=train_ratings, batch_size=batch_size)
X_eval = mx.io.NDArrayIter({'user': valid_users, 'movie': valid_movies},
                           label=valid_ratings, batch_size=batch_size)

user = mx.symbol.Variable("user")
user = mx.symbol.Embedding(data=user, input_dim=n_users, output_dim=25)

movie = mx.symbol.Variable("movie")
movie = mx.symbol.Embedding(data=movie, input_dim=n_movies, output_dim=25)

y_true = mx.symbol.Variable("softmax_label")

nn = mx.symbol.concat(user, movie)
nn = mx.symbol.flatten(nn)

# Since we are using a two layer neural network here, we will create two FullyConnected layers
# with activation functions before the output layer
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=1)

y_pred = mx.symbol.LinearRegressionOutput(data=nn, label=y_true)

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', optimizer_params=(('learning_rate', 0.001),),
          eval_metric='rmse', eval_data=X_eval, batch_end_callback=mx.callback.Speedometer(batch_size, 250))

INFO:root:Epoch[0] Batch [250] Speed: 118637.11 samples/sec rmse=1.534038
INFO:root:Epoch[0] Batch [500] Speed: 113050.06 samples/sec rmse=0.870649
INFO:root:Epoch[0] Batch [750] Speed: 103719.93 samples/sec rmse=0.864005
INFO:root:Epoch[0] Train-rmse=0.857448
INFO:root:Epoch[0] Time cost=171.698
INFO:root:Epoch[0] Validation-rmse=0.860733
INFO:root:Epoch[1] Batch [250] Speed: 78250.38 samples/sec rmse=0.859745
INFO:root:Epoch[1] Batch [500] Speed: 101016.08 samples/sec rmse=0.855493
INFO:root:Epoch[1] Batch [750] Speed: 119003.66 samples/sec rmse=0.845985
INFO:root:Epoch[1] Train-rmse=0.836734
INFO:root:Epoch[1] Time cost=196.198
INFO:root:Epoch[1] Validation-rmse=0.841941
INFO:root:Epoch[2] Batch [250] Speed: 122335.95 samples/sec rmse=0.837715
INFO:root:Epoch[2] Batch [500] Speed: 115161.64 samples/sec rmse=0.832515
INFO:root:Epoch[2] Batch [750] Speed: 125680.21 samples/sec rmse=0.829576
INFO:root:Epoch[2] Train-rmse=0.824149
INFO:root:Epoch[2] Time cost=156.961
INFO:root:Epoch[2] Validation-rmse=0.831934
INFO:root:Epoch[3] Batch [250] Speed: 125879.81 samples/sec rmse=0.826866
INFO:root:Epoch[3] Batch [500] Speed: 126486.63 samples/sec rmse=0.822214
INFO:root:Epoch[3] Batch [750] Speed: 127086.85 samples/sec rmse=0.818095
INFO:root:Epoch[3] Train-rmse=0.811827
INFO:root:Epoch[3] Time cost=150.094
INFO:root:Epoch[3] Validation-rmse=0.825179
INFO:root:Epoch[4] Batch [250] Speed: 126428.28 samples/sec rmse=0.814212
INFO:root:Epoch[4] Batch [500] Speed: 126580.35 samples/sec rmse=0.809083
INFO:root:Epoch[4] Batch [750] Speed: 126718.99 samples/sec rmse=0.804582
INFO:root:Epoch[4] Train-rmse=0.798921
INFO:root:Epoch[4] Time cost=149.927
INFO:root:Epoch[4] Validation-rmse=0.826697

Looks like we're getting a lower validation RMSE after five epochs using deep matrix factorization than with normal matrix factorization. That is a promising start that one could likely build on by toying with the hyperparameters, activation functions, or structure of the network.

It is important to keep in mind we are training a neural network, and so all of the advances in deep learning can be immediately applied to deep matrix factorization. A widely used advance was that of batch normalization, which essentially tried to shrink the range of values that the internal nodes in a network, ultimately speeding up training. We can use batch normalization layers in our network here as well simply by modifying the network to add these layers in between the fully connected layers and the activation layers.

X_train = mx.io.NDArrayIter({'user': train_users, 'movie': train_movies},
                            label=train_ratings, batch_size=batch_size)
X_eval = mx.io.NDArrayIter({'user': valid_users, 'movie': valid_movies},
                           label=valid_ratings, batch_size=batch_size)

user = mx.symbol.Variable("user")
user = mx.symbol.Embedding(data=user, input_dim=n_users, output_dim=25)

movie = mx.symbol.Variable("movie")
movie = mx.symbol.Embedding(data=movie, input_dim=n_movies, output_dim=25)

y_true = mx.symbol.Variable("softmax_label")

nn = mx.symbol.concat(user, movie)
nn = mx.symbol.flatten(nn)
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.BatchNorm(data=nn) # First batch norm layer here, before the activaton!
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.BatchNorm(data=nn) # Second batch norm layer here, before the activation!
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=1)

y_pred = mx.symbol.LinearRegressionOutput(data=nn, label=y_true)

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', optimizer_params=(('learning_rate', 0.001),),
          eval_metric='rmse', eval_data=X_eval, batch_end_callback=mx.callback.Speedometer(batch_size, 250))

INFO:root:Epoch[0] Batch [250] Speed: 39208.91 samples/sec rmse=1.396967
INFO:root:Epoch[0] Batch [500] Speed: 37904.94 samples/sec rmse=0.861666
INFO:root:Epoch[0] Batch [750] Speed: 38629.65 samples/sec rmse=0.846601
INFO:root:Epoch[0] Train-rmse=0.837209
INFO:root:Epoch[0] Time cost=492.430
INFO:root:Epoch[0] Validation-rmse=0.840387
INFO:root:Epoch[1] Batch [250] Speed: 38216.81 samples/sec rmse=0.833456
INFO:root:Epoch[1] Batch [500] Speed: 36666.01 samples/sec rmse=0.824795
INFO:root:Epoch[1] Batch [750] Speed: 39337.02 samples/sec rmse=0.820960
INFO:root:Epoch[1] Train-rmse=0.812641
INFO:root:Epoch[1] Time cost=498.679
INFO:root:Epoch[1] Validation-rmse=0.833002
INFO:root:Epoch[2] Batch [250] Speed: 40163.91 samples/sec rmse=0.807429
INFO:root:Epoch[2] Batch [500] Speed: 40749.31 samples/sec rmse=0.810349
INFO:root:Epoch[2] Batch [750] Speed: 41163.72 samples/sec rmse=0.811134
INFO:root:Epoch[2] Train-rmse=0.808280
INFO:root:Epoch[2] Time cost=466.423
INFO:root:Epoch[2] Validation-rmse=0.826650
INFO:root:Epoch[3] Batch [250] Speed: 40259.38 samples/sec rmse=0.798582
INFO:root:Epoch[3] Batch [500] Speed: 39188.80 samples/sec rmse=0.805801
INFO:root:Epoch[3] Batch [750] Speed: 38498.15 samples/sec rmse=0.805699
INFO:root:Epoch[3] Train-rmse=0.806561
INFO:root:Epoch[3] Time cost=483.083
INFO:root:Epoch[3] Validation-rmse=0.827087
INFO:root:Epoch[4] Batch [250] Speed: 38827.68 samples/sec rmse=0.793857
INFO:root:Epoch[4] Batch [500] Speed: 39005.77 samples/sec rmse=0.800701
INFO:root:Epoch[4] Batch [750] Speed: 40256.04 samples/sec rmse=0.800214
INFO:root:Epoch[4] Train-rmse=0.798758
INFO:root:Epoch[4] Time cost=482.253
INFO:root:Epoch[4] Validation-rmse=0.829661

It seems that for this specific data set, batch normalization does cause the network to converge faster, but does not produce a significantly better model. Despite this, one may find it does help with their data set, particularly if that data set requires a deeper network than the two-layered one used here.

An alternate approach to this model is to consider the problem as a classification problem instead of a regression problem. In the classification approach, the classes are the various ratings, and one attempts a 10 class problem, since there are 10 possible ratings that a film can get. The only modification to the data needed is to modify the ratings to be integers between 0 and 9 instead of 0 to 5 with 0.5 star spacing. The network needs only be modified to have 10 hidden units in the final layer, since it is now a 10 class problem, and to use the softmax output designed for classification problems instead of the linear regression output designed for regression problems. Lastly, since this is a classification problem, we want to use accuracy as the evaluation metric instead of RMSE.

X_train = mx.io.NDArrayIter({'user': train_users, 'movie': train_movies},
                            label=train_ratings*2-1, batch_size=batch_size)
X_eval = mx.io.NDArrayIter({'user': valid_users, 'movie': valid_movies},
                           label=valid_ratings*2-1, batch_size=batch_size)

user = mx.symbol.Variable("user")
user = mx.symbol.Embedding(data=user, input_dim=n_users, output_dim=25)

movie = mx.symbol.Variable("movie")
movie = mx.symbol.Embedding(data=movie, input_dim=n_movies, output_dim=25)

y_true = mx.symbol.Variable("softmax_label")

nn = mx.symbol.concat(user, movie)
nn = mx.symbol.flatten(nn)
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=10) # 10 hidden units because 10 classes

#y_pred = mx.symbol.LinearRegressionOutput(data=nn, label=y_true)
# SoftmaxOutput instead of LinearRegressionOutput because this is a classification problem now
# and we want to use a classification loss function instead of a regression loss function
y_pred = mx.symbol.SoftmaxOutput(data=nn, label=y_true)

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', optimizer_params=(('learning_rate', 0.001),),
          eval_metric='acc', eval_data=X_eval, batch_end_callback=mx.callback.Speedometer(batch_size, 250))

INFO:root:Epoch[0] Batch [250] Speed: 122794.92 samples/sec accuracy=0.277911
INFO:root:Epoch[0] Batch [500] Speed: 114745.76 samples/sec accuracy=0.308079
INFO:root:Epoch[0] Batch [750] Speed: 120039.00 samples/sec accuracy=0.352916
INFO:root:Epoch[0] Train-accuracy=0.369453
INFO:root:Epoch[0] Time cost=159.667
INFO:root:Epoch[0] Validation-accuracy=0.369045
INFO:root:Epoch[1] Batch [250] Speed: 119471.48 samples/sec accuracy=0.374056
INFO:root:Epoch[1] Batch [500] Speed: 121729.90 samples/sec accuracy=0.381145
INFO:root:Epoch[1] Batch [750] Speed: 122073.81 samples/sec accuracy=0.386917
INFO:root:Epoch[1] Train-accuracy=0.391404
INFO:root:Epoch[1] Time cost=156.781
INFO:root:Epoch[1] Validation-accuracy=0.386814
INFO:root:Epoch[2] Batch [250] Speed: 122468.00 samples/sec accuracy=0.390450
INFO:root:Epoch[2] Batch [500] Speed: 122347.94 samples/sec accuracy=0.394187
INFO:root:Epoch[2] Batch [750] Speed: 119624.61 samples/sec accuracy=0.397321
INFO:root:Epoch[2] Train-accuracy=0.400560
INFO:root:Epoch[2] Time cost=156.243
INFO:root:Epoch[2] Validation-accuracy=0.391776
INFO:root:Epoch[3] Batch [250] Speed: 121367.88 samples/sec accuracy=0.399314
INFO:root:Epoch[3] Batch [500] Speed: 122706.09 samples/sec accuracy=0.401204
INFO:root:Epoch[3] Batch [750] Speed: 121675.35 samples/sec accuracy=0.404014
INFO:root:Epoch[3] Train-accuracy=0.406444
INFO:root:Epoch[3] Time cost=155.693
INFO:root:Epoch[3] Validation-accuracy=0.393607
INFO:root:Epoch[4] Batch [250] Speed: 122690.81 samples/sec accuracy=0.405457
INFO:root:Epoch[4] Batch [500] Speed: 120709.25 samples/sec accuracy=0.406774
INFO:root:Epoch[4] Batch [750] Speed: 122051.33 samples/sec accuracy=0.409256
INFO:root:Epoch[4] Train-accuracy=0.410387
INFO:root:Epoch[4] Time cost=155.800
INFO:root:Epoch[4] Validation-accuracy=0.394097

It does appear the network is getting more accurate over time, but accuracy results aren't directly comparable to the RMSE results. We can convert the results we got to RMSE by taking the most likely rating as the predicted value (using the argmax function on the vector of probabilities predicted for each rating) and calculating RMSE ourselves.

y_pred = model.predict(X_eval).asnumpy().argmax(axis=1)
y_pred = (y_pred + 1.) / 2

plt.title("Distribution of Predictions", fontsize=14)
plt.ylabel("Count", fontsize=14)
plt.xlabel("Rating", fontsize=14)
plt.hist(y_pred)
plt.show()
embedding space
Figure 8. Source: Jacob Schreiber.

RMSE is simple to implement and calculate.

numpy.sqrt(((y_pred - valid_ratings) ** 2).mean())

0.94985115511429619

It appears this method does not work well compared to optimizing the RMSE directly for this specific data set. However, this opens the door to using MXNet to solve all types of matrix completion problems that have categories that need to be predicted instead of real values. It is very easy to transfer from a regression approach to a classification approach when using a neural network, and that simplicity transfers over to deep matrix factorization as well.

Structural regularization in deep matrix factorization

Another aspect of deep matrix factorization's flexibility over that of vanilla matrix factorization is the output_dim size of the embedding layers. For vanilla matrix factorization, these values must be the same for both inputs because the prediction is the dot product between the two. However, if these serve as the input for a neural network, this restriction goes away. This is useful in the case where one dimension may be significantly larger than the other and, thus, requires training a massive number of factors. In the MovieLens case, there are significantly more users (~138K) than there are movies (~27K). By changing the number of user factors from 25 to 15, we can reduce the number of parameters by 1.38 million while not losing any expressivity on the movie side. The only change is changing the value of output_dim in the user embedding layer.

X_train = mx.io.NDArrayIter({'user': train_users, 'movie': train_movies},
                            label=train_ratings, batch_size=batch_size)
X_eval = mx.io.NDArrayIter({'user': valid_users, 'movie': valid_movies},
                           label=valid_ratings, batch_size=batch_size)

user = mx.symbol.Variable("user")
user = mx.symbol.Embedding(data=user, input_dim=n_users, output_dim=15) # Using 15 instead of 25 here

movie = mx.symbol.Variable("movie")
movie = mx.symbol.Embedding(data=movie, input_dim=n_movies, output_dim=25)

y_true = mx.symbol.Variable("softmax_label")

nn = mx.symbol.concat(user, movie)
nn = mx.symbol.flatten(nn)
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=1)

y_pred = mx.symbol.LinearRegressionOutput(data=nn, label=y_true)

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', optimizer_params=(('learning_rate', 0.001),),
          eval_metric='rmse', eval_data=X_eval, batch_end_callback=mx.callback.Speedometer(batch_size, 250))

INFO:root:Epoch[0] Batch [250] Speed: 145962.10 samples/sec rmse=1.514931
INFO:root:Epoch[0] Batch [500] Speed: 148807.95 samples/sec rmse=0.870363
INFO:root:Epoch[0] Batch [750] Speed: 145735.88 samples/sec rmse=0.863618
INFO:root:Epoch[0] Train-rmse=0.857462
INFO:root:Epoch[0] Time cost=129.353
INFO:root:Epoch[0] Validation-rmse=0.860865
INFO:root:Epoch[1] Batch [250] Speed: 133382.85 samples/sec rmse=0.859818
INFO:root:Epoch[1] Batch [500] Speed: 141339.16 samples/sec rmse=0.854639
INFO:root:Epoch[1] Batch [750] Speed: 143850.40 samples/sec rmse=0.843351
INFO:root:Epoch[1] Train-rmse=0.834700
INFO:root:Epoch[1] Time cost=136.112
INFO:root:Epoch[1] Validation-rmse=0.839810
INFO:root:Epoch[2] Batch [250] Speed: 147025.64 samples/sec rmse=0.835836
INFO:root:Epoch[2] Batch [500] Speed: 146040.68 samples/sec rmse=0.831258
INFO:root:Epoch[2] Batch [750] Speed: 145320.30 samples/sec rmse=0.828088
INFO:root:Epoch[2] Train-rmse=0.822267
INFO:root:Epoch[2] Time cost=129.913
INFO:root:Epoch[2] Validation-rmse=0.830307
INFO:root:Epoch[3] Batch [250] Speed: 147053.45 samples/sec rmse=0.823348
INFO:root:Epoch[3] Batch [500] Speed: 148078.04 samples/sec rmse=0.819856
INFO:root:Epoch[3] Batch [750] Speed: 144657.70 samples/sec rmse=0.816956
INFO:root:Epoch[3] Train-rmse=0.811044
INFO:root:Epoch[3] Time cost=129.497
INFO:root:Epoch[3] Validation-rmse=0.822730
INFO:root:Epoch[4] Batch [250] Speed: 145915.07 samples/sec rmse=0.812906
INFO:root:Epoch[4] Batch [500] Speed: 146004.64 samples/sec rmse=0.810784
INFO:root:Epoch[4] Batch [750] Speed: 145000.29 samples/sec rmse=0.807913
INFO:root:Epoch[4] Train-rmse=0.801218
INFO:root:Epoch[4] Time cost=130.319
INFO:root:Epoch[4] Validation-rmse=0.822108

It seems we are getting similar accuracy with drastically fewer parameters. This is useful in a setting where you may run out of memory due to the size of the matrix being completed, or as a way to reduce overfitting by using a simpler model. One can imagine that movies might be difficult to appropriately represent and have many aspects that should be modeled, whereas users are simpler and only have a few features that are relevant. Being able to tune the size of these embedding layers is a very useful tool.

Next, we can extend matrix factorization using only two embedding layers. The MovieLens data set comes with genres for each of the films. Presumably, genre is one of the major aspects that would be learned by the movie embedding layer already, so explicitly including that information can be beneficial. More broadly, perhaps there are some features that are common to a genre of films instead of an individual film. By modeling the genre of film as its own embedding layer, we can train these factors using all films of a given genre instead of trying to learn the value of the respective factor for each movie individually. Since we've already seen the number of factors in each layer can be variable, we don't need to be concerned with the size of any of these layers. We can see that visually below. Assuming movies have been sorted by genre, we can see that half of the movie factors now correspond more broadly to the genre they are in and are shared across movies, while the other half are still movie-specific factors. The change to the network is conceptually very simple, now concatenating three embedding layers to be the input to the network instead of only two.

embedding space
Figure 9. Source: Jacob Schreiber.

Let's first load up the genre data.

genres = pandas.read_csv('./ml-20m/movies.csv')
genres.head()
movieId title genres
0 1 Toy Story (1995) Adventure|Animation|Children|Comedy|Fantasy
1 2 Jumanji (1995) Adventure|Children|Fantasy
2 3 Grumpier Old Men (1995) Comedy|Romance
3 4 Waiting to Exhale (1995) Comedy|Drama|Romance
4 5 Father of the Bride Part II (1995) Comedy

It looks like this data set is simple; it just has all of the genres and the corresponding title and movie ID. For simplicity, let's only use the first genre of the many that are specified, and determine a unique ID for each of the genres. Modeling all the genres applied to a movie is left as an exercise for the reader (hint: instead of a label, use a one- or multiple-hot vector!).

labels_str = [label.split("|")[0] for label in genres['genres']]
label_set = numpy.unique(labels_str)
label_idxs = {l: i for i, l in enumerate(label_set)}
label_idxs

{'(no genres listed)': 0,
'Action': 1,
'Adventure': 2,
'Animation': 3,
'Children': 4,
'Comedy': 5,
'Crime': 6,
'Documentary': 7,
'Drama': 8,
'Fantasy': 9,
'Film-Noir': 10,
'Horror': 11,
'IMAX': 12,
'Musical': 13,
'Mystery': 14,
'Romance': 15,
'Sci-Fi': 16,
'Thriller': 17,
'War': 18,
'Western': 19}

It looks like there are 20 genres, with one being that no genres are listed. This seems appropriate. We want our network to now take in three numbers: the user ID, the movie ID, and the movie genre ID. This will allow us to train factors specific to all romance movies, for example, or all fantasy movies.

labels = numpy.empty(n_movies)
for movieId, label in zip(genres['movieId'], labels_str):
    labels[movieId-1] = label_idxs[label]

train_genres = numpy.array([labels[int(j)] for j in train_movies])
valid_genres = numpy.array([labels[int(j)] for j in valid_movies])
train_genres[:10]

array([ 5., 5., 1., 5., 11., 8., 5., 2., 5., 2.])

Now we have our three labels. We need to move our data iterator to take in movie type as a third input, and our network to have a third embedding layer. Let's move five factors over from the movie factors to this new movie genre embedded layer. This is another way one can attempt to structurally regularize their model, as roughly 135,000 parameters are removed from the movie embedding layer, and only 100 are added in the genre layer. The input to the network remains the same size, 40, but the values are now comprised of three layers instead of just two.

X_train = mx.io.NDArrayIter({'user': train_users, 'movie': train_movies, 'movie_genre': train_genres},
                            label=train_ratings, batch_size=batch_size)
X_eval = mx.io.NDArrayIter({'user': valid_users, 'movie': valid_movies, 'movie_genre': valid_genres},
                           label=valid_ratings, batch_size=batch_size)

user = mx.symbol.Variable("user")
user = mx.symbol.Embedding(data=user, input_dim=n_users, output_dim=15)

movie = mx.symbol.Variable("movie")
movie = mx.symbol.Embedding(data=movie, input_dim=n_movies, output_dim=20) # Reduce from 25 to 20

# We need to add in a third embedding layer for genre
movie_genre = mx.symbol.Variable("movie_genre")
movie_genre = mx.symbol.Embedding(data=movie_genre, input_dim=20, output_dim=5) # Set to 5

y_true = mx.symbol.Variable("softmax_label")

nn = mx.symbol.concat(user, movie, movie_genre)
nn = mx.symbol.flatten(nn)
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=64)
nn = mx.symbol.Activation(data=nn, act_type='relu')
nn = mx.symbol.FullyConnected(data=nn, num_hidden=1)

y_pred = mx.symbol.LinearRegressionOutput(data=nn, label=y_true)

model = mx.module.Module(context=mx.gpu(0), data_names=('user', 'movie', 'movie_genre'), symbol=y_pred)
model.fit(X_train, num_epoch=5, optimizer='adam', optimizer_params=(('learning_rate', 0.001),),
          eval_metric='rmse', eval_data=X_eval, batch_end_callback=mx.callback.Speedometer(batch_size, 250))

INFO:root:Epoch[0] Batch [250] Speed: 152348.60 samples/sec rmse=1.543478
INFO:root:Epoch[0] Batch [500] Speed: 156112.50 samples/sec rmse=0.869655
INFO:root:Epoch[0] Batch [750] Speed: 158070.14 samples/sec rmse=0.863854
INFO:root:Epoch[0] Train-rmse=0.857693
INFO:root:Epoch[0] Time cost=122.266
INFO:root:Epoch[0] Validation-rmse=0.861068
INFO:root:Epoch[1] Batch [250] Speed: 157670.08 samples/sec rmse=0.860133
INFO:root:Epoch[1] Batch [500] Speed: 150558.44 samples/sec rmse=0.858514
INFO:root:Epoch[1] Batch [750] Speed: 156919.67 samples/sec rmse=0.857988
INFO:root:Epoch[1] Train-rmse=0.852612
INFO:root:Epoch[1] Time cost=122.420
INFO:root:Epoch[1] Validation-rmse=0.857694
INFO:root:Epoch[2] Batch [250] Speed: 155068.93 samples/sec rmse=0.854496
INFO:root:Epoch[2] Batch [500] Speed: 154660.07 samples/sec rmse=0.846820
INFO:root:Epoch[2] Batch [750] Speed: 151527.08 samples/sec rmse=0.840205
INFO:root:Epoch[2] Train-rmse=0.832399
INFO:root:Epoch[2] Time cost=123.495
INFO:root:Epoch[2] Validation-rmse=0.838327
INFO:root:Epoch[3] Batch [250] Speed: 150934.93 samples/sec rmse=0.833670
INFO:root:Epoch[3] Batch [500] Speed: 153191.56 samples/sec rmse=0.829874
INFO:root:Epoch[3] Batch [750] Speed: 156284.66 samples/sec rmse=0.828139
INFO:root:Epoch[3] Train-rmse=0.822959
INFO:root:Epoch[3] Time cost=123.722
INFO:root:Epoch[3] Validation-rmse=0.831702
INFO:root:Epoch[4] Batch [250] Speed: 156946.80 samples/sec rmse=0.825830
INFO:root:Epoch[4] Batch [500] Speed: 157734.05 samples/sec rmse=0.823614
INFO:root:Epoch[4] Batch [750] Speed: 156028.05 samples/sec rmse=0.821216
INFO:root:Epoch[4] Train-rmse=0.815023
INFO:root:Epoch[4] Time cost=121.003
INFO:root:Epoch[4] Validation-rmse=0.826572

While it doesn't appear that using only the first genre has led to much improvement on this data set, it demonstrates the types of things that one could do with the flexibility afforded by deep matrix factorization. In order to model all possible genres, perhaps one would create one embedding layer per genre that can either be 0, meaning the movie is not a part of that genre, or a 1, meaning that it is. Alternatively, one could create a dense input vector that is encoded in the same way to replace the many embedding layers with a single input layer. Depending on the amount of information present for each user, one may choose to add this type of structural regularization on the user axis as well.

Conclusion

In this tutorial, we investigated both traditional and deep matrix factorization and showed how one would use Apache MXNet to implement these models. Since these types of matrix factorization models are commonly used to build recommender systems, we showed how to build models to predict user ratings of movies using the MovieLens 20M data set. We saw that deep matrix factorization can natively take advantage of the recent advances in deep learning to learn more sophisticated models. In addition, deep matrix factorization can take advantage of the flexibility afforded by neural networks to allow more complicated inputs than traditional matrix factorization can handle, which could yield additional insight into the task. Apache MXNet makes doing all of this simple—with only about two dozen lines of code, one can define both the model and how to train it. Since MXNet is built with distributed computing in mind, it is easy to take advantage of those built-in features to scale this type of model up to massive data sets that can't fit in memory.

For further reading, the MXNet GitHub page offers several tutorials on how to use MXNet to implement many types of recommender systems. Leo Dirac also has an excellent tutorial on using MXNet for recommender systems that is worth watching.

Article image: Matrix factorization vs. deep matrix factorization (source: Courtesy of Jacob Schreiber, used with permission).
