Working with Buttons

In this section you’ll learn how pushbuttons work in principle and how you can use them with an Arduino. We’ll start small and build a circuit that uses a pushbutton to control a single LED.

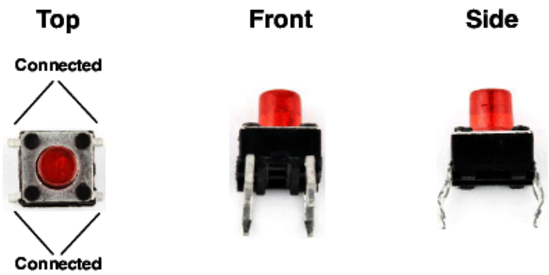

What exactly is a pushbutton? The following figure shows three views of a typical pushbutton. It has four connectors that fit perfectly on a breadboard (at least after you have straightened them with a pair of pliers). Two opposite pins connect when the button is pushed; otherwise, they are disconnected.

The following picture shows a simple circuit using a pushbutton. Connect pin 7 (chosen completely arbitrarily) to the pushbutton, ...
