Learning AutoCAD 2010 and AutoCAD LT 2010

Lesson 28 | Applying a Radius Corner to Two Objects

This lesson describes how to fillet objects using the Fillet command.

Fillets and rounds are common in mechanical drawings, but you can use the Fillet feature across all design disciplines to create radius geometry connecting two objects.

After completing this lesson, you will be able to identify options of the Fillet command and use the command to create radius geometry between two objects.

Objectives

After completing this lesson, you will be able to:

• Use the Fillet command to create radius geometry connecting two objects.

Creating Fillets

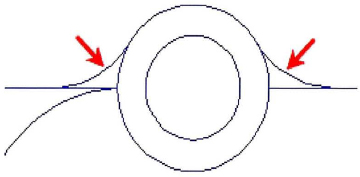

You can use the Fillet command to connect two objects ...
