Chapter 9. Experiment 9: From Millivolts to Volts

In the previous experiment, you determined that your electret was working. Now we can begin to make it do something useful.

Putting a Cap on It

The first step is to install a coupling capacitor, as shown in Figure 9-1. If you remember the basics, you already know that it will block DC voltage while allowing a pulse to pass through. In fact, depending on the size of the capacitor, it will be transparent to many small voltage fluctuations—such as those in an AC audio signal.

meme 0901

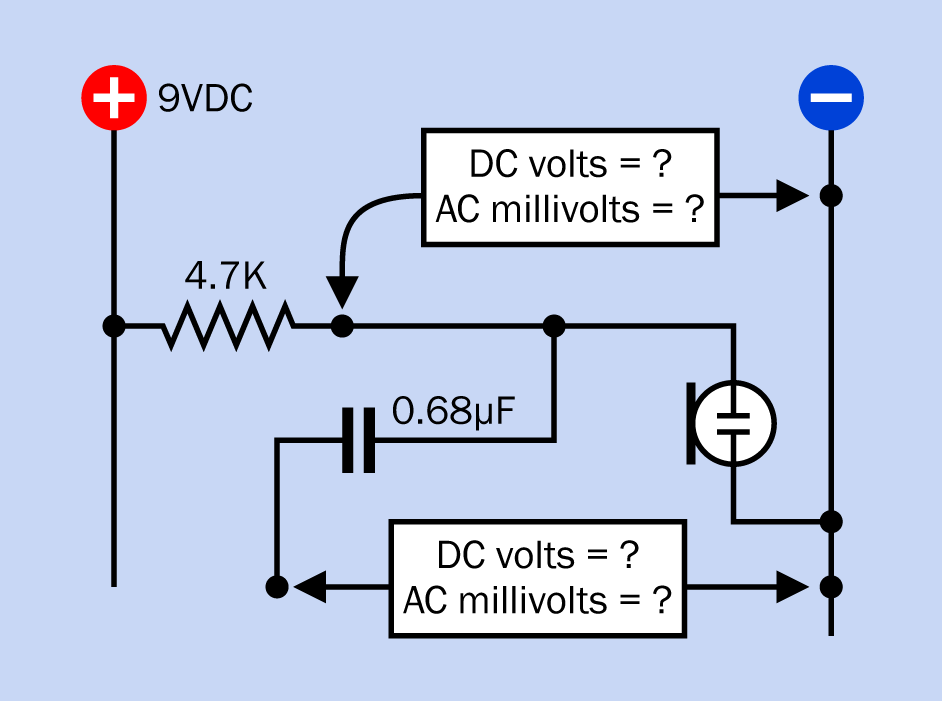

Figure 9-1. This simple test with a multimeter demonstrates that the capacitor blocks DC voltage while passing an AC audio ...
