Modernizing Enterprise Java

Chapter 4. A Kubernetes-Based Software Development Platform

In the previous chapter, we outlined our methodology around modernization and the steps required to design and develop modern architectures. We described the need for a platform like Kubernetes that can help you with requirements to make your applications cloud native, ready to scale up proportionally to your business’s need.

We have also demonstrated that a microservices-based architecture is usually implemented using container technology, which makes apps portable and consistent. Let’s now see in detail how Kubernetes can help us modernize our Java applications and what the steps are to achieve that using its declarative approach through a rich set of APIs.

Developers and Kubernetes

Kubernetes, which in Greek translates to “pilot” or “governor,” is an open source project that is currently the de facto target environment for modern architectures and the most popular container orchestration platform; a simple illustration is presented in Figure 4-1. Started from Google’s experience in managing distributed complex applications for their software stack back in 2015, today it is one of the biggest open source communities; it is managed by a foundation, the Cloud Native Computing Foundation (CNCF), and embraced by vendors and individual contributors.

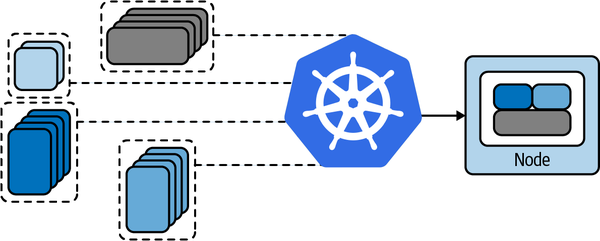

Figure 4-1. A Kubernetes cluster running apps in Nodes

As a container-orchestration platform, its focus is primarily on ensuring that our apps are running correctly, providing out-of-the-box self-healing, recovery, and a powerful API to control this mechanism. You may be wondering now: as a developer, why should I care about Kubernetes if it is so self-proficient?

That’s a good question, and maybe a good answer is an analogy: you have a Formula 1 car with autopilot, but if you want to win the race, you need to tune and set up your car to compete with all other good ones. The same is true for your apps, which can benefit from all the capabilities offered by the platform to tune them so they run optimally.

What Kubernetes Does

When you have Kubernetes as a target platform to run your applications, you can rely on an ecosystem of APIs and components put in place to make deployments easier so developers can focus only on the most important part: coding. Kubernetes provides you with a framework to run distributed systems resiliently.

In practice, this means you don’t need to reimplement custom solutions when it comes to:

Service discovery

Kubernetes uses internal DNS resolution to expose your apps; this is automatically assigned and can also be used to send the traffic to multiple instances of your app.

Load balancing

Kubernetes takes care of managing the load on your apps, balancing the traffic, and distributing user requests accordingly.

Self-healing

Kubernetes discovers and replaces failing containers automatically, providing a health check and self-healing mechanism out of the box.

Rollout and Rollback

Kubernetes ensures your app is always running consistently at the desired state, providing control to scale up and scale down workloads. In addition, it offers the capability to rollout or rollback to a specific version of your application.

What Kubernetes Doesn’t Do

Many headaches that developers usually need to deal with in production are already solved and delegated to a platform, whose primary goal is to ensure applications are running. But does that provide all you need for modernizing your apps? Probably not.

As we discussed in the previous chapter, the modernization steps toward a cloud native approach are more closely tied to a methodology rather than a specific technology. Once you’ve converted your mindset from building monolithic apps to creating microservices, we are in a good position to start thinking big. Nowadays, many apps run on cloud platforms targeting Kubernetes, and those are the ones running global-reach workloads. Here are some things to consider:

• Kubernetes doesn’t know how to handle your app. It can restart it if it fails, but it cannot understand why that is happening, so we need to ensure we have full control of our microservices-based architecture and be able to debug each container. This is particularly important in the case of a large-scale deployment.

• Kubernetes doesn’t provide any middleware or application-level services. Granular discovery services need to be addressed by interacting with Kubernetes API or relying on some service on top of Kubernetes, such as a service mesh framework. There is no ecosystem for developers out of the box.

• Kubernetes doesn’t build your app. You are responsible for providing your app compiled and packaged as a container image or relying on additional components on top of Kubernetes.

With that in mind, let’s start digging into a Kubernetes journey for developers in order to make our first step to bringing our app into the next cloud native production environment.

Infrastructure as a Code

Kubernetes provides a set of APIs to manage the desired state of our app as well as the whole platform. Each component in Kubernetes has an API representation that can be consumed. Kubernetes offers a declarative deployment pattern that allows you to to automate the execution of upgrade and rollback processes for a group of Pods. The declarative approach is granular, and it is also used to extend Kubernetes APIs with the concept of custom resources.

Note

Custom resources are extensions of the Kubernetes API. A custom resource represents a customization of a particular Kubernetes installation, bringing additional objects to extend cluster capabilities. You can get more info about it from the official Kubernetes documentation.

Some of the core objects you have to manage an application in Kubernetes are:

Pod

A group of one or more containers deployed into a Kubernetes cluster. This is the entity that Kubernetes manages and orchestrates, so any application packaged as a container needs to be declared as a Pod.

Service

The resource responsible for service discovery and load balancing. For any Pod to be discoverable and consumable, it needs to be mapped to a Service.

Deployment

This allows describing an application’s life cycle, driving the creation of Pods in terms of which images to use for the app, the number of Pods there should be, and how they should be updated. Furthermore, it helps to define health checks and constraint resources for your application.

Each of these objects, along with all other resources in the cluster, can be defined and controlled with a YAML representation, or by Kubernetes API. There are also other useful API objects such as those related to storage (PersistentVolume) or used specifically to manage stateful apps (StatefulSet). In this chapter, we will focus on the fundamental ones needed to bring your app up and running inside a Kubernetes platform.

Container Images

The first step for you in this journey is to containerize your microservices so they can be deployed into Kubernetes as a Pod, which is controlled by using a YAML file, invoking the API, or using a Kubernetes Java client.

You can use the Inventory Quarkus microservice from Coolstore as an example to create your first container image. Containers are defined by a manifest called Dockerfile or Containerfile, where you will define your software stack as a layer, from the operating system layer to your application binary layer. The benefits of this approach are multiple: it is easy to track versions, inherit from existing layers, add layers, and expand the container. A diagram of layers is shown in Figure 4-2.

Figure 4-2. Container image layers

Dockerfile

Writing a Dockerfile to package our app as a container is pretty straightforward for simple use cases. There are some basic directives called Instructions to use, such as the ones listed in Table 4-1.

Table 4-1. Dockerfile Instructions

Instruction	Description
FROM	Used to inherit from a base image. For example, it can be a Linux distribution like fedora, centos, rhel, ubuntu.
ENV	Use environment variable for the container. These variables will be visible to the application and can be set at runtime.
RUN	Execute a command in the current layer, like installing a package or executing an application.
ADD	Copy files from your workstation to the container layer, like a JAR file or a configuration file.
EXPOSE	If your application is listening to some port, you can expose it to the container network so Kubernetes can map it to a Pod and a Service.
CMD	The command you use to start your application: the final step of the container image building process where you have all your dependencies in the layers, and you can run your app safely.

The process for creating your container from your Dockerfile is also described in Figure 4-3.

Figure 4-3. Building a container image

An example of a Dockerfile for the Inventory Quarkus Java microservice that we created in Chapter 2 is listed next, and you can find it in this book’s GitHub repository:

FROM registry.access.redhat.com/ubi8/openjdk-11
ENV PROFILE=prod
ADD target/*.jar app.jar
EXPOSE 8080
CMD java -jar app.jar

We start from OpenJDK 11 layer to build our container image.

Set an environment variable that can be consumed within the app for differentiating profiles or configurations to load.

Copy the JAR artifact built during compilation into the container image. This supposes you have compiled a “fat-jar” or “uber-jar” that contains all dependencies in the same JAR file.

Expose port 8080 to the container network.

Run the application invoking the artifact we copied into the layer.

In this section, we defined a Dockerfile with the minimum instructions set to build up a container image. Let’s see now how to create container images from a Dockerfile.

Building Container Images

Now you need to create the container image. Docker is a popular open source project to create containers; you can download it for your operating system and start using it to build and run your containers. Podman is another open source alternative to do this, and it can also generate Kubernetes objects.

When you have Docker or Podman on your workstation, you can start building your container from the Dockerfile with this command:

docker build -f Dockerfile -t docker.io/modernizingjavaappsbook/
  inventory-quarkus:latest

This will generate your container image by reading the instructions from the Dockerfile. Then it will tag your container image in the form <repository>/<name>:<tag>, in this case, docker.io/modernizingjavaappsbook/inventory-quarkus:latest. You will see an output similar to this:

STEP 1: FROM registry.access.redhat.com/ubi8/openjdk-11
Getting image source signatures
Copying blob 57562f1b61a7 done
Copying blob a6b97b4963f5 done
Copying blob 13948a011eec done
Copying config 5d89ab50b9 done
Writing manifest to image destination
Storing signatures
STEP 2: ENV PROFILE=prod
STEP 3: ADD target/*.jar app.jar
STEP 4: EXPOSE 8080
STEP 5: CMD java -jar app.jar
STEP 6: COMMIT inventory-quarkus:latest
Getting image source signatures
Copying blob 3aa55ff7bca1 skipped: already exists
Copying blob 00af10937683 skipped: already exists
Copying blob 7f08faf4d929 skipped: already exists
Copying blob 1ab317e3c719 done
Copying config b2ae304e3c done
Writing manifest to image destination
Storing signatures
--> b2ae304e3c5
b2ae304e3c57216e42b11d8be9941dc8411e98df13076598815d7bc376afb7a1

Your container image is now stored in Docker’s or Podman’s local storage called Docker cache or Container cache, and it is ready to be used locally.

Note

You can create an Uber-Jar for production for the Inventory service with this command: ./mvnw package -Dquarkus.profile=prod. You can let Docker or Podman compile your software and create the container using a particular kind of container images build called Multi-stage. See this Dockerfile as an example.

Run Containers

Running containers refers to pulling the container images from the container cache to run applications. This process will be isolated by the container runtime (such as Docker or Podman) from the other ones in our workstation, providing a portable application with all dependencies managed inside a container and not in our workstation.

To start testing the Inventory microservice packaged now as a container image, you can run the command below:

docker run -ti docker.io/modernizingjavaappsbook/inventory-quarkus:latest

You see that the Quarkus microservice is up and running in a container, listening to the port 8080. Docker or Podman takes care of mapping container networking into your workstation; open your browser at http://localhost:8080, and you will see the Quarkus welcome page (as in Figure 2-4).

Tip

Docker Network documentation contains more info on how to map ports and networks within containers and hosts running Docker.

Registry

As we described in the previous section, container images are stored in a local cache. However, if you want to make them available outside your workstation, you need to send them over in some convenient way. A container image’s size is generally hundreds of megabytes. That’s why you need a container image registry.

The registry essentially acts as a place to store container images and share them via a process of uploading to (pushing) and downloading from (pulling). Once the image is on another system, the original application contained within it can be run on that system as well.

Registries can be public or private. Popular public registries include Docker Hub and Quay.io. They are offered as a SaaS on the internet and allow images to be available publicly with or without authentication. Private registries are usually dedicated to specific users and are not accessible for public usage. However, you may make them available to private environments, such as private Kubernetes clusters.

In this example, we created an organization at DockerHub for the book, called modernizingjavaappsbook, that maps into a repository of this public registry where we want to push our container image.

First, you need to log in to the registry. You need to authenticate against it in order to be able to push new content, then you will leave the container image publicly available:

docker login docker.io

After you log in successfully, you can start uploading the Inventory container image to the registry:

docker push docker.io/modernizingjavaappsbook/inventory-quarkus:latest

This command pushes the images to the registry, and you should get output similar to the following as confirmation:

Getting image source signatures
Copying blob 7f08faf4d929 done
Copying blob 1ab317e3c719 done
Copying blob 3aa55ff7bca1 skipped: already exists
Copying blob 00af10937683 skipped: already exists
Copying config b2ae304e3c done
Writing manifest to image destination
Storing signatures

The Quarkus microservice, packaged as a container image, is now ready to be deployed everywhere!

Deploying to Kubernetes

Deploying applications to Kubernetes is done by interacting with Kubernetes API to create the objects representing the desired state of the app in a Kubernetes cluster. As we discussed, Pods, Services, and Deployments are the minimum objects created to let Kubernetes manage the entire application life cycle and connectivity.

Note

If you don’t have a Kubernetes cluster yet, you can download and use minikube, a standalone Kubernetes cluster designed for local development.

Every object in Kubernetes contains the following values:

apiVersion

Kubernetes API version used to create this object

kind

The object type (e.g. Pod, Service)

metadata

Pieces of information that help uniquely identify the object, such as a name or UID

spec

The desired state for the object

In this section, we defined the basic structure of any Kubernetes objects. Now, let’s explore the fundamental objects needed to run applications on top of Kubernetes.

Pod

A Pod is a group of one or more containers with shared storage and network resources and a specification for how to run the containers. In Figure 4-4, you can see a representation of two Pods in a Kubernetes cluster, with an example IP address assigned by Kubernetes to each of them.

Figure 4-4. Pods and containers

Kubernetes doesn’t work directly with containers; it relies on the Pod concept to orchestrate containers. As such, you need to provide a Pod definition that matches your container:

apiVersion: v1
kind: Pod
metadata:
  name: inventory-quarkus
  labels:
    app: inventory-quarkus
spec:
  containers:
    - name: inventory-quarkus
      image: docker.io/modernizingjavaappsbook/inventory-quarkus:latest
      ports:
        - containerPort: 8080

Name for the Pod object, unique per Namespace

A list of key/value pairs to apply to this object

A list of containers used in this Pod

The container image URI, in this case a repository publicly available in Docker Hub

The port exposed by this container, to be mapped into a Pod

Tip

Generally, one Pod contains one container, thus the mapping is 1 Pod : 1 application. Although you could have multiple containers in one Pod for some use cases (e.g., sidecars), the best practice is to map 1 Pod to 1 app, because this ensures scalability and maintainability.

You can create any of the Kubernetes objects described previously as a YAML file with the Kubernetes CLI kubectl. Run the command as shown next to deploy your first microservice as a single Pod. You can find it in this book’s GitHub repository:

kubectl create -f pod.yaml

To check that it is running on Kubernetes:

kubectl get pods

You should get an output similar to:

NAME               READY  STATUS   RESTARTS  AGE
inventory-quarkus  1/1    Running  0         30s

If you look at the STATUS column, it shows the Pod is running correctly and all default health checks are correctly satisfied.

Tip

If you want further details on how to make more granular health checks, please refer to the official Kubernetes documentation for liveness and readiness probes.

Service

Kubernetes Services are used to expose an application running on a set of Pods. This is useful because a Pod gets a random IP address from the Kubernetes network, which may change if it is restarted or moved to another node within a Kubernetes cluster. Services offers a more consistent way to communicate with Pods, acting as a DNS server and load balancer.

A Service is mapped to one or more Pods; it uses the internal DNS to resolve to an internal IP from a mnemonic short hostname (e.g., inventory-quarkus), and balances the traffic to the Pods as shown in Figure 4-5. Each Service get its own IP address from a dedicated IP address range, which is different from a Pod’s IP address range.

Figure 4-5. A Kubernetes Service

Note

The balancing method offered by Kubernetes Services is Layer 4 (TCP/UDP). The only two strategies usable are round-robin and source IP. For application layer balancing (e.g., HTTP), there are other objects like Ingress not covered in this book, but you can find the documentation for them here.

Let’s have a look at a Service that could map our Pod:

apiVersion: v1
kind: Service
metadata:
  name: inventory-quarkus-service
spec:
  selector:
    app: inventory-quarkus
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080

Name for the Service object

The label exposed by the Pod to match the Service

The L4 protocol used, TCP or UDP

The port used by this Service

The port used by the Pod and mapped into the Service

To create your Service, run the command as shown below. You can also find it in this book’s GitHub repository:

kubectl create -f service.yaml

To check that it is running on Kubernetes:

kubectl get svc

You should get output similar to:

NAME                       TYPE       CLUSTER-IP    EXTERNAL-IP  PORT(S)   AGE
inventory-quarkus-service  ClusterIP  172.30.34.73  <none>       8080/TCP  6s

Note

You just defined a Service, mapped to a Pod. This is only accessible from the internal Kubernetes network, unless you expose it with an object that can accept the traffic from outside the cluster, like Ingress.

Deployment

Deployments are Kubernetes objects created for managing an application life cycle. A deployment describes a desired state, and Kubernetes will implement it using either a rolling or re-create deployment strategy. The rollout life cycle consists of progressing, complete, and failed states. A deployment is progressing while it is performing update tasks, such as updating or scaling Pods.

Kubernetes deployments offer a set of capabilities on top of the basic Pod and Service concepts as listed next and in Figure 4-6:

• Deploy a ReplicaSet or Pod

• Update Pods and ReplicaSets

• Rollback to previous deployment versions

• Scale a deployment

• Pause or continue a deployment

• Define health checks

• Define resources constraints

Figure 4-6. Deployments manage an application’s life cycle and updates

Managing applications with a Kubernetes deployment includes the way in which an application should be updated. A major benefit of a deployment is the ability to start and stop a set of Pods predictably. There are two strategies for deploying apps in Kubernetes:

Rolling update

It provides a controlled, phased replacement of the application’s Pods, ensuring that there are always a minimum number available. This is useful for the business continuity of an application, where the traffic is not routed into a new version of the application until the health checks (probes) on the desired number of Pods deployed are satisfied.

Re-create

It removes all existing pods before new ones are created. Kubernetes first terminates all containers from the current version and then starts all new containers simultaneously when the old containers are gone. This provides downtime for the app, but it ensures there aren’t multiple versions running at the same time.

A Deployment object driving Pods deployment on Kubernetes is listed in the following example:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: inventory-quarkus-deploy
  labels:
    app: inventory-quarkus
spec:
  replicas: 1
  selector:
    matchLabels:
      app: inventory-quarkus
  template:
    metadata:
      labels:
        app: inventory-quarkus
    spec:
      containers:
      - name: inventory-quarkus
        image: docker.io/modernizingjavaappsbook/inventory-quarkus:latest
        ports:
        - containerPort: 8080
        readinessProbe:
          httpGet:
            path: /
            port: 8080
            scheme: HTTP
          periodSeconds: 10
          successThreshold: 1
          failureThreshold: 3
        livenessProbe:
          httpGet:
            path: /
            port: 8080
            scheme: HTTP
          periodSeconds: 10
          successThreshold: 1
          failureThreshold: 3

Name for the Deployment object.

The label for this object.

The desired number of Pod replicas.

The selector to find which Pods to manage using labels.

The Pod template to use, including labels to inherit or containers to create.

The container image to use.

Kubernetes uses readiness probes to know when a container is ready to start accepting traffic, and a Pod is considered ready when all of its containers are ready. Here we define an HTTP health check on the root path as a readiness probe.

Kubernetes uses liveness probes to know when to restart a container. Here we define an HTTP health check on the root path as a liveness probe.

Run the following command to create your Deployment. You can also find it in this book’s GitHub repository:

kubectl create -f deployment.yaml

Run the following command to verify that the Deployment has been created, and to get the status:

kubectl get deploy

You should get output similar to:

NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
inventory-quarkus-deploy   1/1     1            1           10s

Looking at the READY column, you have your desired state correctly matched, having requested one replica for the Inventory microservice running on Kubernetes. You can cross-check that a Pod has been created:

kubectl get pods

You should get similar output to:

NAME                                        READY   STATUS    RESTARTS   AGE
inventory-quarkus                           1/1     Running   0          1m
inventory-quarkus-deploy-5cb46f5d8d-fskpd   1/1     Running   0          30s

Now a new Pod has been created using a randomly generated name, starting from the inventory-quarkus-deploy Deployment name. If the app crashes or if we kill the Pod managed by the Deployment, Kubernetes will re-create it automatically for us. This is not true for the Pod generated without a Deployment:

kubectl delete pod inventory-quarkus inventory-quarkus-deploy-5cb46f5d8d-fskpd

You can see that the desired state is always met:

kubectl get pods

You should get output similar to:

NAME                                        READY   STATUS    RESTARTS   AGE
inventory-quarkus-deploy-5cb46f5d8d-llp7n   1/1     Running   0          42s

Kubernetes and Java

Kubernetes has a tremendous amount of potential for managing applications’ life cycles, and there are a number of studies on how developers and architects could best fit in its architecture, like patterns. Kubernetes patterns are reusable design patterns for container-based applications and services.

From a Java developer perspective, the first step is to migrate from the monolithic approach to a microservice-based approach. Once that is complete, the next step is to get into the Kubernetes context and maximize the benefits this platform offers: API extendibility, a declarative model, and a standarized process where the IT industry is converging.

There are Java frameworks that help developers connect to Kubernetes and convert their apps to containers. You already containerized the Inventory Quarkus microservice with a Dockerfile. Now let’s drive this containerization from Java, generating a container image for the Catalog Spring Boot microservice using Maven and Gradle.

Jib

Jib is an open source framework made by Google to build container images compliant to the Open Container Initiative (OCI) image format, without the need of Docker or any container runtime. You can create containers even from your Java codebase because it offers a Maven and Gradle plug-in for that. This means Java developers can containerize their app without writing and/or maintaining any Dockerfiles, delegating this complexity to Jib.

We see the benefits from this approach as follows:

Pure Java

No Docker or Dockerfile knowledge is required; simply add Jib as a plug-in, and it will generate the container image for you. The resulting image is commonly referred to as “distroless,” since it doesn’t inherit from any base image.

Speed

The application is divided into multiple layers, splitting dependencies from classes. There’s no need to rebuild the container image as is necessary for Dockerfiles; Jib takes care of deploying the layers that changed.

Reproducibility

Unnecessary updates are not triggered, as the same contents always generate the same image.

The easiest way to kick-start a container image build with Jib, on existing Maven, is by adding the plug-in via command line:

mvn compile com.google.cloud.tools:jib-maven-plugin:2.8.0:build
  -Dimage=<MY IMAGE>

Alternatively, you can do so by adding Jib as a plug-in into pom.xml:

<project>
  ...
  <build>
    <plugins>
      ...
      <plugin>
        <groupId>com.google.cloud.tools</groupId>
        <artifactId>jib-maven-plugin</artifactId>
        <version>2.8.0</version>
        <configuration>
          <to>
            <image>myimage</image>
          </to>
        </configuration>
      </plugin>
      ...
    </plugins>
  </build>
  ...
</project>

In this way you can also manage other settings such as authentication or parameters for the build. Run the command below if you want to build the Catalog service and push it directly to Docker Hub:

mvn compile com.google.cloud.tools:jib-maven-plugin:2.8.0:build↳
-Dimage=docker.io/modernizingjavaappsbook/catalog-spring-boot:latest↳
-Djib.to.auth.username=<USERNAME>↳
-Djib.to.auth.password=<PASSWORD>

The authentication here is managed as command line options, but Jib is able to manage existing authentication with Docker CLI or read credentials from your settings.xml.

The build takes a few moments, and the result is a distroless container image built locally and pushed directly to a registry, in this case Docker Hub:

[INFO] Scanning for projects...
[INFO]
[INFO] -------------------< com.redhat.cloudnative:catalog >-------------------
[INFO] Building CoolStore Catalog Service 1.0-SNAPSHOT
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ catalog ---
[INFO] Copying 4 resources
[INFO]
[INFO] --- maven-compiler-plugin:3.6.1:compile (default-compile) @ catalog ---
[INFO] Nothing to compile - all classes are up to date
[INFO]
[INFO] --- jib-maven-plugin:2.8.0:build (default-cli) @ catalog ---
[INFO]
[INFO] Containerizing application to modernizingjavaappsbook/catalog-spring-boot
  ...
[WARNING] Base image 'gcr.io/distroless/java:11' does not use a specific image
  digest↳ - build may not be reproducible
[INFO] Using credentials from <to><auth> for modernizingjavaappsbook/
  catalog-spring-boot
[INFO] Using base image with digest:↳
sha256:65aa73135827584754f1f1949c59c3e49f1fed6c35a918fadba8b4638ebc9c5d
[INFO]
[INFO] Container entrypoint set to [java, -cp, /app/resources:/app/classes:/app/
  libs/*, com.redhat.cloudnative.catalog.CatalogApplication]
[INFO]
[INFO] Built and pushed image as modernizingjavaappsbook/catalog-spring-boot
[INFO] Executing tasks:
[INFO] [==============================] 100,0% complete
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  27.817 s
[INFO] Finished at: 2021-03-19T11:48:16+01:00
[INFO] ------------------------------------------------------------------------

Note

Your container image is not present in your local cache, as you don’t need any container runtime to build images with Jib. You won’t see it with the docker images command, but you pull it from Docker Hub afterward and it will be stored in your cache. In case you also want to store it locally from the beginning, Jib also connects to Docker hosts and can do it for you.

JKube

Eclipse JKube, a community project supported by the Eclipse Foundation and Red Hat, is another open source Java framework to help with interacting with Kubernetes from a Java developer perspective. It supports building container images using Docker/Podman, Jib, and Source-to-Image (S2I). Eclipse JKube also provides a set of tools to deploy automatically to Kubernetes and manage the application with helpers for debugging and logging. It comes from Fabric8 Maven Plug-in, rebranded and enhanced as a project to target Kubernetes.

Tip

JKube supports Kubernetes and OpenShift. OpenShift brings Source-to-Image on top of Kubernetes, a mechanism to automatically compile a container image from source code. In this way the build is made on Kubernetes, so developers can test and deploy their apps directly on the target platform.

As with Jib, JKube provides Zero Configuration mode for a quick ramp-up where opinionated defaults will be preselected. It provides Inline Configuration within the plug-in configuration using an XML syntax. Furthermore, it provides External Configuration templates of real deployment descriptors, which are enriched by the plug-in.

JKube is offered in three forms:

Kubernetes Plug-in

It works in any Kubernetes cluster, providing either distroless or Dockerfile-driven builds.

OpenShift Plug-in

It works in any Kubernetes or OpenShift cluster, providing either distroless, Dockerfile-driven builds, or Source-to-Image (S2I) builds.

JKube Kit

A toolkit and a CLI to interact with JKube Core, it also acts as a Kubernetes Client and provides an Enricher API to extend Kubernetes manifests.

JKube offers more functionality than Jib; in fact, it can be considered a superset. You can do distroless Jib builds, but you can also work with Dockerfile and deploy Kubernetes manifests from Java. In this case, we don’t need to write a Deployment or Service; JKube will take care of building the container and deploy it to Kubernetes.

Let’s include JKube in our Catalog POM file and configure it to do a Jib build and a deploy to Kubernetes. Doing so will make the plug-in persistent. You can also find the source code in this book’s GitHub repository.

First, we need to add JKube as a plug-in:

<project>
  ...
  <build>
    <plugins>
      ...
    <plugin>
       <groupId>org.eclipse.jkube</groupId>
       <artifactId>kubernetes-maven-plugin</artifactId>
       <version>1.1.1</version>
    </plugin>
      ...
    </plugins>
  </build>
  ...
</project>

After that, you can drive the container image build with properties. In this case, you may want to use Jib for building the image and pushing it to Docker Hub. Afterward, you will deploy it to Kubernetes:

...
<properties>
...
    <jkube.build.strategy>jib</jkube.build.strategy>
    <jkube.generator.name>docker.io/modernizingjavaappsbook/catalog-spring-boot:
      ${project.version}</jkube.generator.name>
</properties>
...

Let’s build the image:

mvn k8s:build

You should get output similar to:

JIB>... modernizingjavaappsbook/catalog-spring-boot/1.0-SNAPSHOT/build/
  deployments/catalog-1.0-SNAPSHOT.jar
JIB>    :
JIB>... modernizingjavaappsbook/catalog-spring-boot/1.0-SNAPSHOT/build/Dockerfile
...
JIB> [========================      ] 80,0% complete > building image to tar file
JIB> Building image to tar file...
JIB> [========================      ] 80,0% complete > writing to tar file
JIB> [==============================] 100,0% complete
[INFO] k8s: ... modernizingjavaappsbook/catalog-spring-boot/1.0-SNAPSHOT/tmp/↳
docker-build.tar successfully built
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  36.229 s
[INFO] Finished at: 2021-03-19T13:03:19+01:00
[INFO] ------------------------------------------------------------------------

JKube using Jib created the container image locally, and it is now ready to be pushed to Docker Hub. You can specify credentials in one of three ways:

Docker login

You can log in to your registry, in this case Docker Hub, and JKube will read the ~/.docker/config.json file to get authentication details.

Provide credentials inside POM

Provide registry credentials as part of XML configuration.

Provide credentials inside Maven Settings

You can provide registry credentials in your ~/.m2/settings.xml file and the plug-in will read it from there.

In this case, you use the third option and set up credentials into Maven Settings, so you can copy this file using your credentials. You can also find the source code in this book’s GitHub repository:

<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0↳
          http://maven.apache.org/xsd/settings-1.0.0.xsd">

  <servers>
    <server>
      <id>https://index.docker.io/v1</id>
      <username>USERNAME</username>
      <password>PASSWORD</password>
    </server>
  </servers>
</settings>

To push it to Docker Hub, you just run this Maven goal:

mvn k8s:push

You should see output similar to:

JIB> [=========================] 81,8% complete > scheduling pushing manifests
JIB> [=========================] 81,8% complete > launching manifest pushers
JIB> [=========================] 81,8% complete > pushing manifest for latest
JIB> Pushing manifest for latest...
JIB> [=========================] 90,9% complete > building images to registry
JIB> [=========================] 90,9% complete > launching manifest list pushers
JIB> [=========================] 100,0% complete
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  01:08 min
[INFO] Finished at: 2021-03-19T13:21:28+01:00

Now it’s time to deploy the Catalog on Kubernetes. JKube will connect to your Kubernetes cluster reading the ~/.kube/config file on your workstation:

mvn k8s:resource k8s:apply

You should get output similar to:

[INFO] Scanning for projects...
[INFO]
[INFO] -------------------< com.redhat.cloudnative:catalog >-------------------
[INFO] Building CoolStore Catalog Service 1.0-SNAPSHOT
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- kubernetes-maven-plugin:1.1.1:resource (default-cli) @ catalog ---
[INFO] k8s: Running generator spring-boot
  ...
[INFO] k8s: Creating a Service from kubernetes.yml namespace default name catalog
[INFO] k8s: Created Service: target/jkube/applyJson/default/service-catalog.json
[INFO] k8s: Creating a Deployment from kubernetes.yml namespace default name
  catalog
[INFO] k8s: Created Deployment: target/jkube/applyJson/default/deployment-
  catalog.json
[INFO] k8s: HINT: Use the command `kubectl get pods -w` to watch your pods start
  up
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  7.464 s
[INFO] Finished at: 2021-03-19T13:38:27+01:00
[INFO] ------------------------------------------------------------------------

The app has been deployed successfully to Kubernetes, using generated manifests:

kubectl get pods

NAME                       READY   STATUS    RESTARTS   AGE
catalog-64869588f6-fpjj8   1/1     Running   0          2m2s

kubectl get deploy

NAME      READY   UP-TO-DATE   AVAILABLE   AGE
catalog   1/1     1            1           3m54s

To test it, let’s have a look at the Service:

kubectl get svc

NAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
catalog      ClusterIP   10.99.26.127   <none>        8080/TCP   4m44s

Tip

By default, Kubernetes exposes the application only internally to the cluster, using ClusterIP Service type. You can expose it externally using a Service type NodePort or using an Ingress. In this example, you will use kubectl port-forward to map the Kubernetes exposed port to our workstation’s port.

Let’s try our app using the kubectl port-forward command:

 kubectl port-forward deployment/catalog 8080:8080

If you open your browser now at http://localhost:8080/api/catalog, you will see the Coolstore’s Catalog JSON output.

Summary

In this chapter, we discussed how Java developers can benefit from Kubernetes capabilities to modernize and enhance their apps, showing a developer’s inner loop with Kubernetes environments. We have demonstrated how to create container images and how to deploy them to Kubernetes. We also walked through steps to drive container creation and deploy directly from Java with Maven thanks to Jib and JKube.

Modernization is important for developers in order to make apps cloud native and portable, ready for serving highly available productions and services. In the next chapter, we will look deeper into the modernization of existing Java applications and what steps are needed to achieve it.
