Appendix IICamera Placement Diagrams

The following camera diagrams and descriptions were copied from actual documents used by networks and production companies to produce small and large sporting events. There is not one single way to set up cameras at an event. These diagrams show some of the most common camera setups.

Many of these diagrams show the basic camera diagram. Cameras can be added to them as needed. A few of the diagrams show many cameras as used in a world championship.

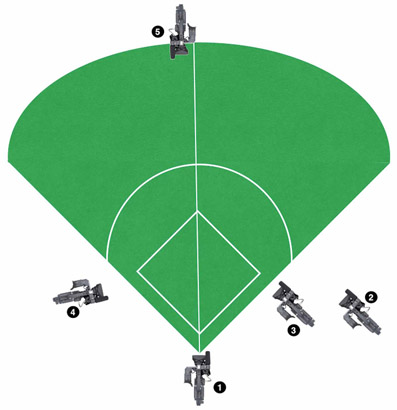

Baseball: Small Production

app2_1

Camera Type Mount Location Coverage
1 Fixed Tripod High home Main follow
2 Fixed Tripod High first Ball flight and ...
