Form Dijits

Form dijits that are explicitly declared suitable for use in bona fide HTML forms, as defined with the FORM tag, are a part of the dijit.form namespace. This section walks through all of the dijits included in this namespace, providing example code and sample screenshots that use Dijit's built-in tundra theme. But first, it's worth reiterating that all form dijits are designed to be fully degradable and accessible; in other words, they remain fully functional even if JavaScript, CSS, and images aren't available, and if a keyboard is the only input device available. Accessibility attributes on Windows environments also support high-contrast mode and screen readers.

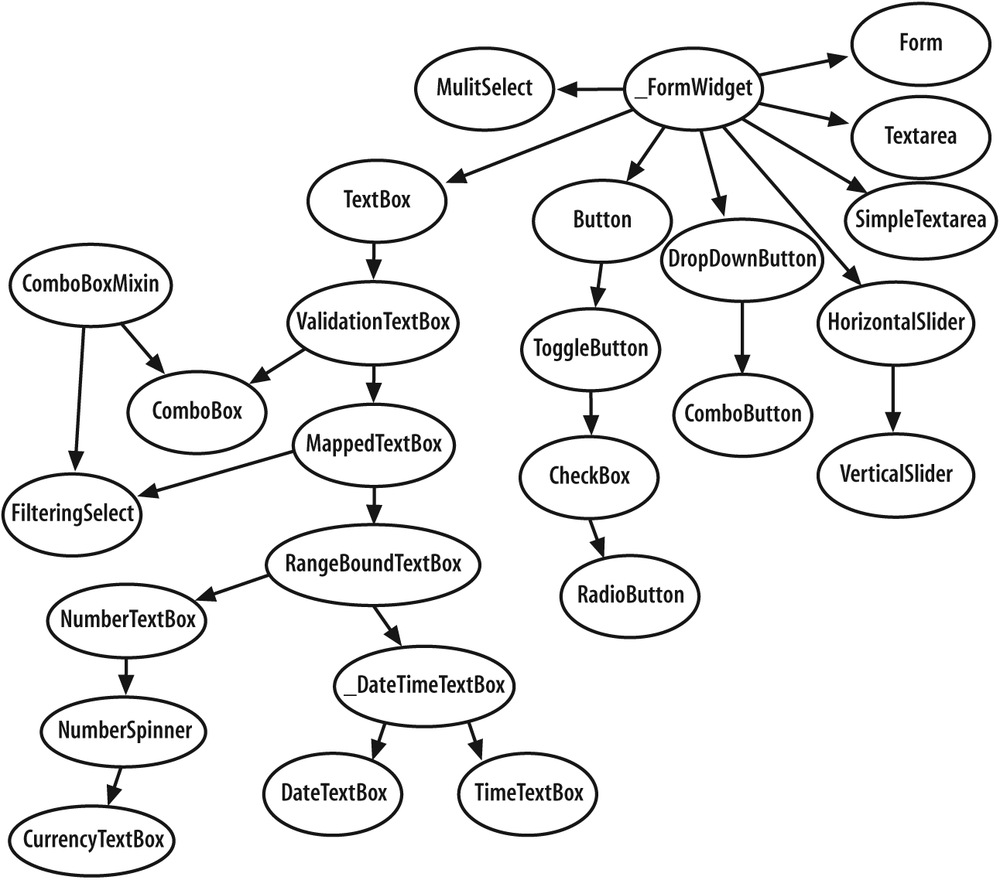

Figure 13-1 shows the general inheritance structure of the dijit.form module. The diagram does not show every single mixin class along the way, but does convey the general relationships amongst the widgets. The hope is that you'll be able to use it to get a better idea of how the source code is laid out when it comes time to cut your teeth on it.

The inheritance-rich dijit.form module

Figure 13-1. The inheritance-rich dijit.form module

In addition to the standard dijit attributes inherited from _Widget, such as domNode, et al., and ordinary HTML attributes included in the HTML 4.01 spec, such as disabled and tabIndex, form dijits all inherit from a base class that explicitly supports the attributes, methods, and extension points listed in Table 13-1.

Table 13-1. Supported attributes, methods, and extension points for form dijits via _FormWidget

Name

Data type

Category

Comment

value

String

Attribute

The current value of the dijit; works just like its pure-HTML equivalent.

name

String

Attribute

The named value for the dijit; works just like its pure-HTML equivalent; useful for form submissions to a server handler.

alt

String

Attribute

Alternate text that should appear should the browser not be able to display—a somewhat uncommon event for forms, although still common enough for images; works just like its pure-HTML equivalent.

type

String

Attribute

Specifies the type of the element when more than one kind is possible. For example, a button might have type="submit" to trigger the form's onsubmit action; works just like its pure-HTML equivalent. By default, this attribute is "text".

tabIndex

Integer

Attribute

Used to provide an explicit tab index for keyboard navigation; works just like its HTML equivalent. By default, this attribute is "0".

disabled

Boolean

Attribute

Disables a control so that it cannot receive focus and is skipped in tabbing navigation; do not attempt to use this attribute on an element that does not support it, which per the HTML 4.01 spec include button, input, optgroup, option, select, and textarea. Controls that are disabled are not included in form submissions. This attribute is false by default.

readOnly

Boolean

Attribute

Disables a control so that its value cannot be changed; however, it can still receive focus, is included in tabbing navigation, and is included in form submissions. Do not attempt to use this attribute on an element that does not support it, which per the HTML 4.01 spec include input and textarea. This attribute is false by default.

intermediateChanges

Boolean

Attribute

Whether to fire the onChange extension point for each value change. This attribute is false by default.

setAttribute

(/* String */ attr,

/* Any */ value)

Function

Method

The proper way to set an attribute value for a dijit. For example, setting a dijit's value attribute to "foo" would be accomplished via

<dijit name>.setAttribute

("value", "foo").

focus( )

Function

Method

Sets the focus on the control.

isFocusable( )

Function

Method

Returns information about whether the control can receive focus.

forWaiValuenow( )

Function

Extension point

By default, returns the current state of the widget to be used for the WAI-ARIA valuenow state, which may be set via dijit.removeState and dijit.setWaiState.

onChange(/* Any */ val)

Function

Extension point

Override to provide a custom callback function that fires each time the value changes.

Tip

For great online documentation on HTML 4.01 forms, see http://www.w3.org/TR/html401/interact/forms.html.
