Electronic Devices and Integrated Circuits

2

Physical Phenomenon in Homojunction

2.1 Introduction

All semiconductor devices contain one or more p-n junctions. The junction family is shown in Fig. 2.1.

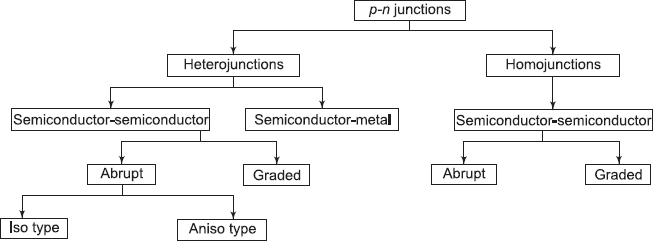

Figure 2.1 Family of p-n junctions

A homojunction is the junction formed between p- and n-type semiconductors of the same material. Since, the material of the junction is the same, both p-type and n-type semiconductors have the same bandgap. Hence, homojunction is formed between semiconductors of the same bandgap. A heterojunction is the junction formed between two types of semiconductors having different bandgaps. An abrupt junction is one in which the impurity type changes abruptly at ...
