HTML5 Canvas, 2nd Edition

fillText and strokeText

The context.fillText() function (as shown in Figure 3-1) will render solid-colored text to the canvas. The color used is set in the context.fillColor property. The font used is set in the context.font property. The function call looks like this:

fillText([text],[x],[y],[maxWidth]);

where:

text

The text to render on the canvas.

x

The x position of the text on the canvas.

y

The y position of the text on the canvas.

maxWidth

The maximum width of the text as rendered on the canvas. At the time of this writing, support for this property was just being added to browsers.

Figure 3-1. fillText in action

The context.strokeText() function (as shown in Figure 3-2) is similar, but it specifies the outline of text strokes to the canvas. The color used to render the stroke is set in the context.strokeColor property; the font used is set in the context.font property. The function call looks like:

strokeText([text],[x],[y],[maxWidth])

where:

text

The text to render on the canvas.

x

The x position of the text on the canvas.

y

The y position of the text on the canvas.

maxWidth

The maximum width of the text as rendered on the canvas. At the time of this writing, this property does not appear to be implemented in any browsers.

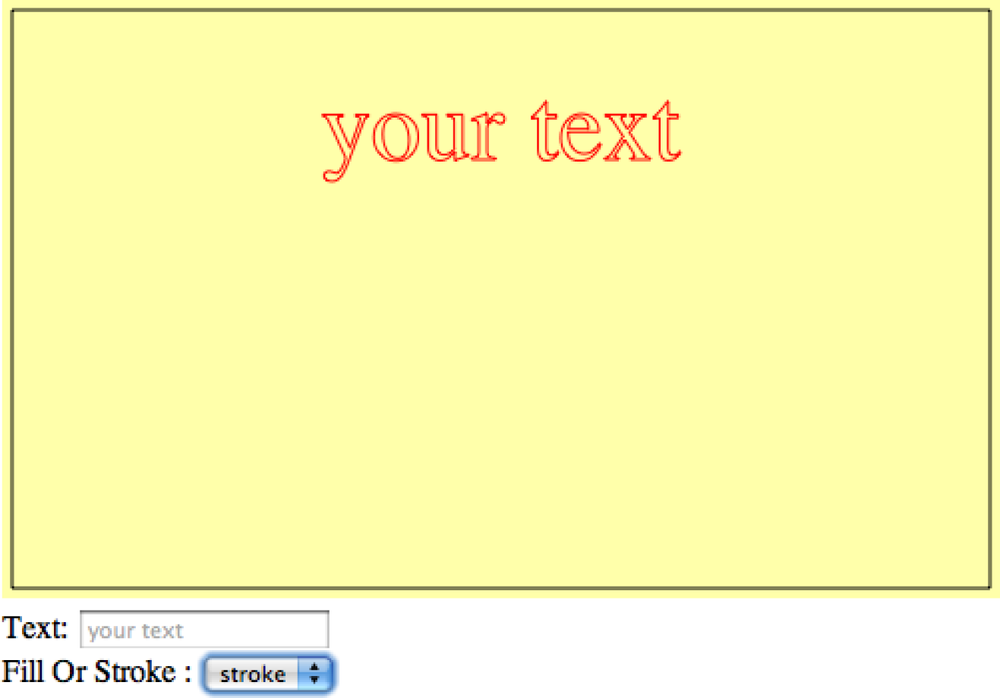

Figure 3-2. strokeText setting outline properties

The next iteration of Text ...
