PROBLEMS

7.1 Determine the logic functions of the multiplexer-based logic circuits in Figure P7.1(a) to (d).

7.2 Determine the logic functions of the multiplexer-based logic circuits in Figure P7.2(a) to (d).

images

Figure P7.1

images

Figure P7.2

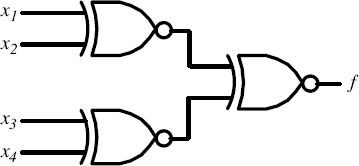

7.3 Implement the function of the logic circuit in Figure P7.3 using an 8: 1 multiplexer.

images

Figure P7.3

7.4 Implement the function of the logic circuit in Figure P7.3 using a 4: 1 multiplexer and additional logic gates.

7.5 Implement the function of the logic circuit in Figure P7.3 using a 2: 1 multiplexer and additional logic gates.

7.6 Implement the function of the logic circuit in Figure P7.6 using a 16: 1 multiplexer.

images

Figure P7.6

7.7 Implement the function of the logic circuit in Figure P7.6 using an 8: 1 multiplexer and additional logic gates.

7.8 Implement the function of the logic circuit in Figure P7.6 using a 4: 1 multiplexer and additional logic gates.

7.9 Implement the function of the logic circuit in Figure P7.6 using a 2: 1 multiplexer and additional logic gates.

7.10 Implement the following logic functions using multiplexers.

7.11 Implement ...
