第7章 操作符与 自定义资源定义(CRDs)

本作品已使用人工智能进行翻译。欢迎您提供反馈和意见:translation-feedback@oreilly.com

Kubernetes 提供核心功能集,通过标准原语满足运行应用程序堆栈的基本需求。针对定制化场景,Kubernetes 允许安装平台扩展 ,即操作器

自定义资源定义(CRD) 是 Kubernetes 的扩展机制(通常与操作符捆绑),用于引入自定义 API 原语以满足内置原语无法覆盖的需求。

本章将重点介绍操作器的安装配置,以及与提供的CRD的交互方式。

操作符使用指南

操作员可在不修改Kubernetes核心代码的前提下扩展集群行为,可视为平台的插件组件。其通常自动化执行原本需人工操作的任务,如应用程序的部署、配置、扩展、升级及管理。

操作符模式

操作器( )通常由多个组件构成:一个或多个CRD、控制器,以及权限控制所需的RBAC规则等附加组件。CRD可视为定义自定义对象蓝图的模式,通过该模式实例化的新类型对象即称为自定义资源(CR)。

CRD 要发挥作用,必须由控制器提供支持。控制器通过与 Kubernetes API 交互,实现与 CRD 对象交互的协调逻辑。

CRD与控制器的组合通常称为操作模式operator pattern)。考试不要求考生理解控制器,因此本章不会涉及控制器的实现细节。

图7-1展示了包含所有动态组件的操作模式。

Diagram illustrating the Kubernetes operator pattern, showing the interaction between user-defined schema, CRD-typed objects, controllers, and the Kubernetes API.
图 7-1. Kubernetes 操作员模式

探索操作器

Kubernetes 社区已在OperatorHub.ioArtifact Hub 上实现了众多实用操作器( )。

其中外部密钥管理器 是知名操作程序,可协助集成Amazon Web Services (AWS) Secrets Manager和HashiCorp Vault等外部密钥管理工具与Kubernetes。另一款 是Crossplane操作程序,支持通过声明式语法创建和管理云资源。

为演示OperatorHub.io的功能,我们将搜索并安装广受欢迎的Argo CD操作员 。该操作员是面向Kubernetes的声明式GitOps持续交付工具,通过持续监控应用程序并将其与Git仓库中定义的预期状态同步,实现部署自动化。

在浏览器中打开OperatorHub.io网址,在名为"Search OperatorHub"的搜索框中输入"argo cd"。您将获得如图7-2所示的搜索结果。

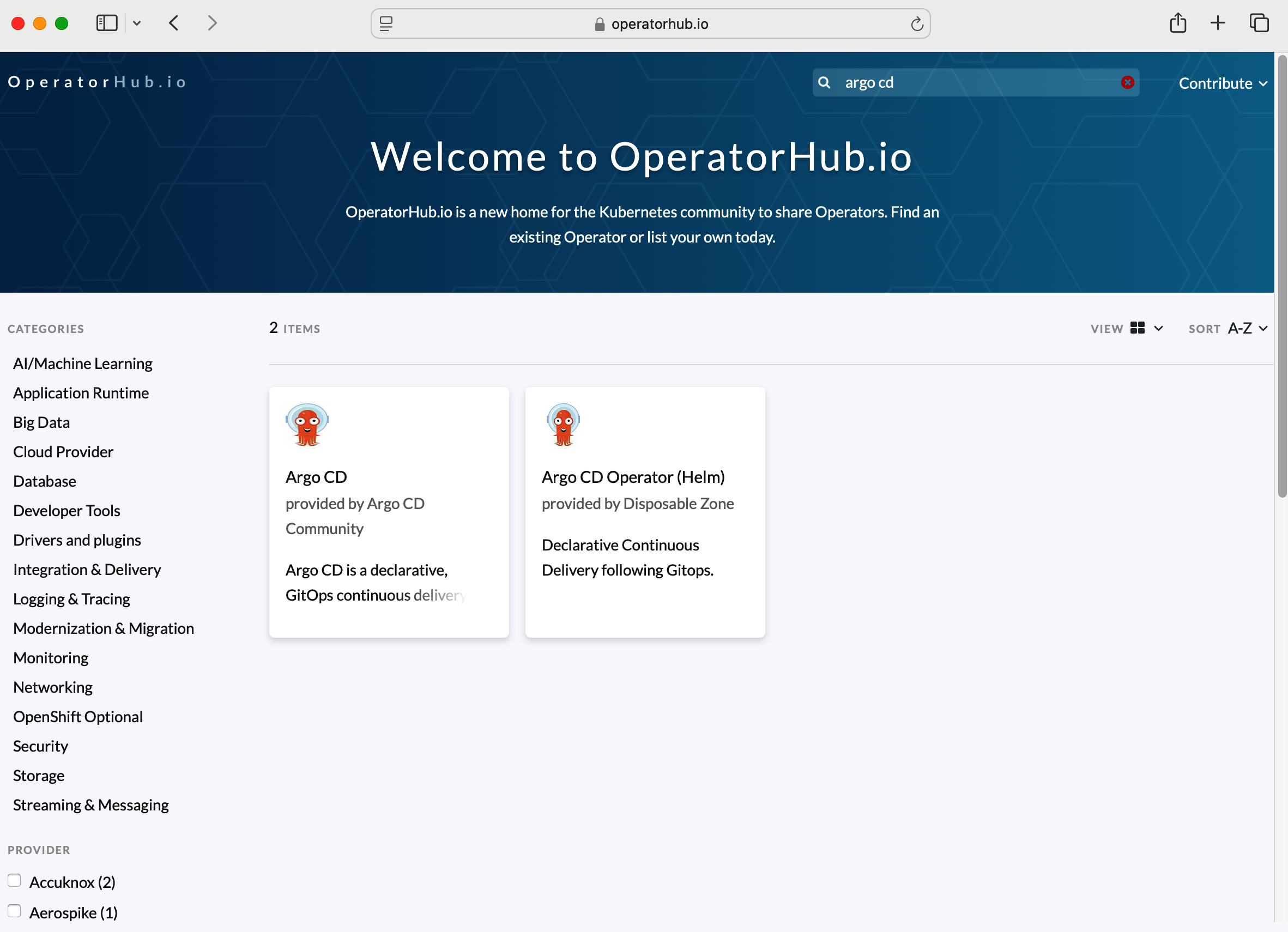

Search results for "Argo CD" on OperatorHub.io, showing options for Argo CD and Argo CD Operator (Helm).
图 7-2. OperatorHub.io 上的搜索结果

点击ArgoCD面板将跳转至Argo CD Operator详情页如图7-3所示)。

该页面描述了该操作员的功能,包括对所提供 CRD 的概述。要能够从 CRD 创建 CR,我们首先需要安装该操作员。

图 7-3. OperatorHub.io 上的 Argo CD 操作员

操作员安装

多数操作员可通过单条kubectl命令或Helm可执行程序安装。有关Helm的使用详情,请参阅 ...
