Linux Security Cookbook

2.22. Building Complex Rule Trees

Problem

You want to construct complex firewall behaviors, but you are getting lost in the complexity.

Solution

Be modular: isolate behaviors into their own chains. Then connect the chains in the desired manner.

For iptables :

# iptables -N CHAIN1
# iptables -N CHAIN2
# iptables -N CHAIN3
# iptables -N CHAIN4
# iptables -N CHAIN5

Add your rules to each chain. Then connect the chains; for example:

# iptables -A INPUT ...specification... -j CHAIN1
# iptables -A CHAIN1 ...specification... -j CHAIN2
# iptables -A CHAIN2 ...specification... -j CHAIN3
# iptables -A INPUT ...specification... -j CHAIN4
# iptables -A INPUT ...specification... -j CHAIN5

to create a rule structure as in Figure 2-1.

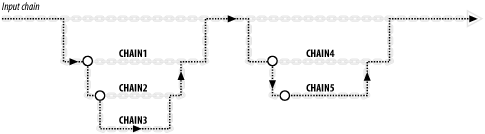

Figure 2-1. Building rule chain structures in iptables or ipchains

For ipchains :

# ipchains -N chain1
# ipchains -N chain2
# ipchains -N chain3
# ipchains -N chain4
# ipchains -N chain5

Add your rules to each chain. Then connect the chains, for example:

# ipchains -A input ...specification... -j chain1
# ipchains -A chain1 ...specification... -j chain2
# ipchains -A chain2 ...specification... -j chain3
# ipchains -A input ...specification... -j chain4
# ipchains -A input ...specification... -j chain5

to create the same rule structure as in Figure 2-1.

Discussion

Connecting chains is like modular programming with subroutines. The rule:

# iptables -A CHAIN1 ...specification... -j CHAIN2 ...
