Mac OS X Tiger for Unix Geeks, 3rd Edition

Chapter 17. System Management Tools

Mac OS X comes with many tools for tweaking and spying on various aspects of your system, including memory, kernel modules, and kernel state variables. Some of these tools come directly from BSD, while others are unique to Mac OS X. Most of the BSD-derived utilities have been filtered through Mach and NeXTSTEP on their way to Mac OS X.

For more details on any of these utilities, see their respective manpages.

Diagnostic Utilities

Mac OS X includes many diagnostic utilities that you can use to monitor your system and investigate problems.

top

The top utility displays memory statistics and a list of running processes. It is divided into two regions: the top region contains memory statistics, and the bottom region contains details on each process.

You can specify the number of processes to show by supplying a numeric argument. By default, top refreshes its display every second and sorts the list of processes by process ID (PID) in descending order. You can set top to sort by CPU utilization with - u, and you can specify the refresh delay with the - s option. Figure 17-1 shows the output of top -u 16 (if you wanted to refresh the output every 3 seconds, you could run top -s3 -u 16).

Table 17-1 describes the values shown in the top region, and Table 17-2 describes the columns in the bottom region (process information).

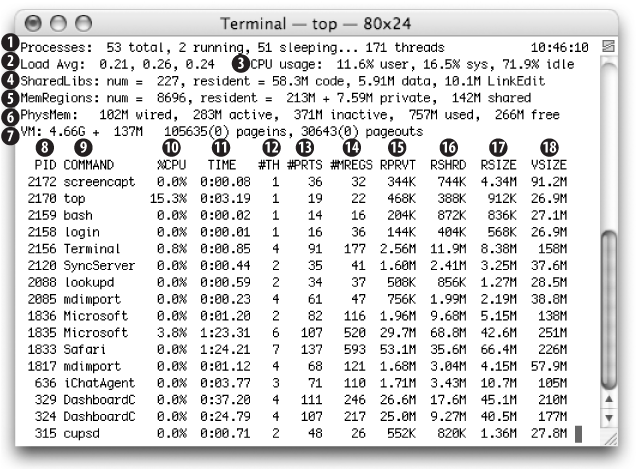

Figure 17-1. Sample output from top

Table 17-1. Memory ...
