PROJECT 16: ELECTRONIC DIE
BOARD GAMES ARE PERILOUS ENOUGH WITHOUT ARGUMENTS OVER NUMBER READINGS FROM FALLEN OR LOST DICE. THE PERFECT SOLUTION: AN ELECTRONIC DIE.

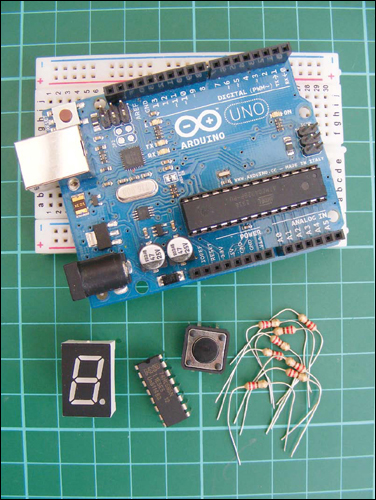

PARTS REQUIRED
• Arduino board
• Breadboard
• Jumper wires
• 8 220-ohm resistors
• Seven-segment LED display
• 74HC595 shift register
• Momentary tactile four-pin pushbutton
HOW IT WORKS

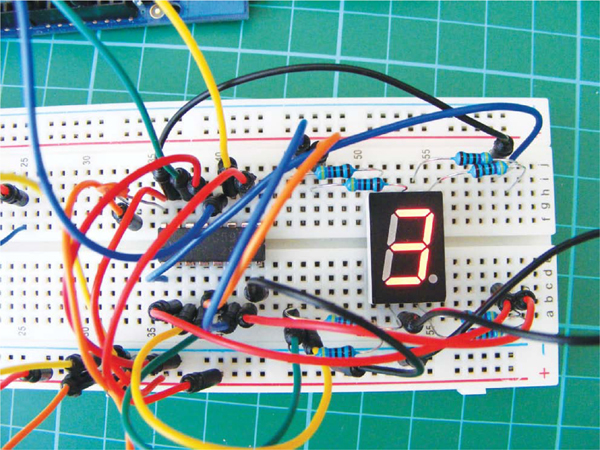

In this project we’ll create a die using a seven-segment LED display. When the pushbutton is pressed, a pulse is sent to the Arduino, and the LED “shakes” and displays a random digit between 1 and ...
