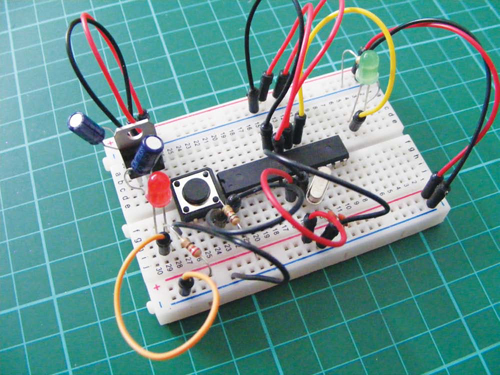

PROJECT 25: BUILD YOUR OWN ARDUINO!
THIS PROJECT WILL TEACH YOU HOW TO BUILD YOUR OWN ARDUINO USING MINIMAL INDIVIDUAL COMPONENTS.

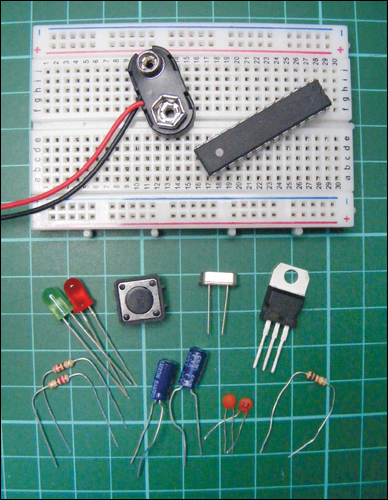

PARTS REQUIRED
• ATMEL ATmega328p chip
• Breadboard
• Green LED
• Red LED
• 3 220-ohm resistors
• 16 MHz crystal oscillator (HC-495)
• L7805cv 5V regulator
• 2 100 μF electrolytic capacitors
• PP3 9V battery clip
• Momentary tactile four-pin pushbutton
• 2 22 pF disc capacitors
• Jumper wires
• 9V battery
This is a fun and inexpensive little board with the same functionality as an Arduino, so it can be used as part ...
