CICS System Manager in the WUI as the Principle Management Interface

Chapter 4. CICSPlex SM Web User Interface default menus and views 109

8. Systems SCSCPAA1 and SCSCPAA4 will be target regions for the new

application. Select these definitions by clicking their check boxes, and click

Add to CICS system group. See Figure 4-9.

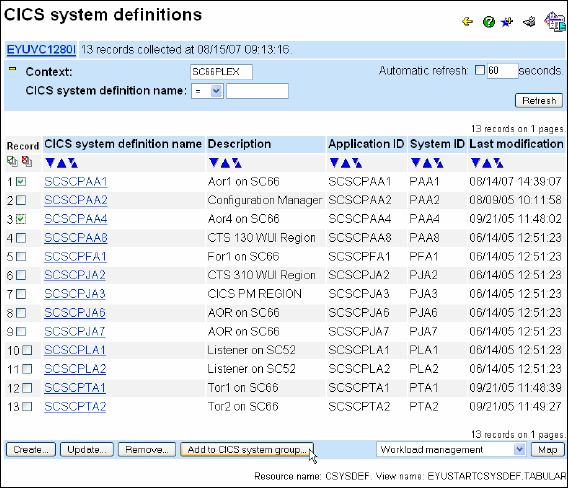

Figure 4-9 CICS system definitions

110 CICS System Manager in the WUI as the Principle Management Interface

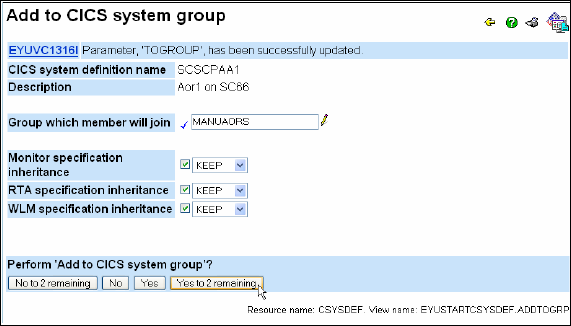

9. Click the pencil icon to display a pick list of available CICS system groups

(Figure 4-7 on page 107). Select MANUAORS and click the OK button. The

three inheritance list boxes control ...
