950 IBM Tivoli Storage Manager in a Clustered Environment

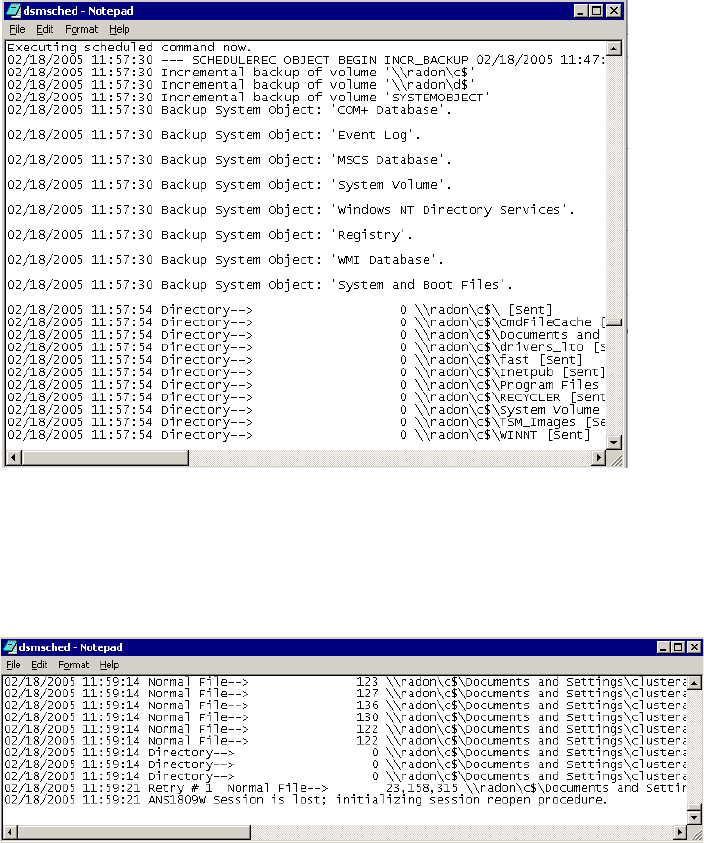

Figure 22-71 Schedule log file in RADON shows the start of the scheduled backup
5. While the client continues sending files to the server, we force SALVADOR to
fail. The following sequence occurs:
a. In the client, the connection is lost, just as we can see in Figure 22-72.
Figure 22-72 RADON loses its connection with the TSMSRV06 server
b. In the Veritas Cluster Manager console, SALVADOR goes down and
OTTAWA receives the resources.
c. When the Tivoli Storage Manager server instance resource is online (now
hosted by OTTAWA), the schedule restarts as shown on the activity log in
Figure 22-73. ...
