APPENDIX 1

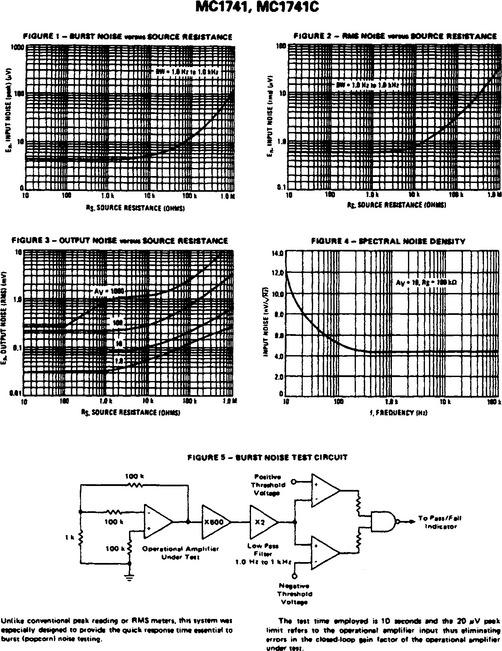

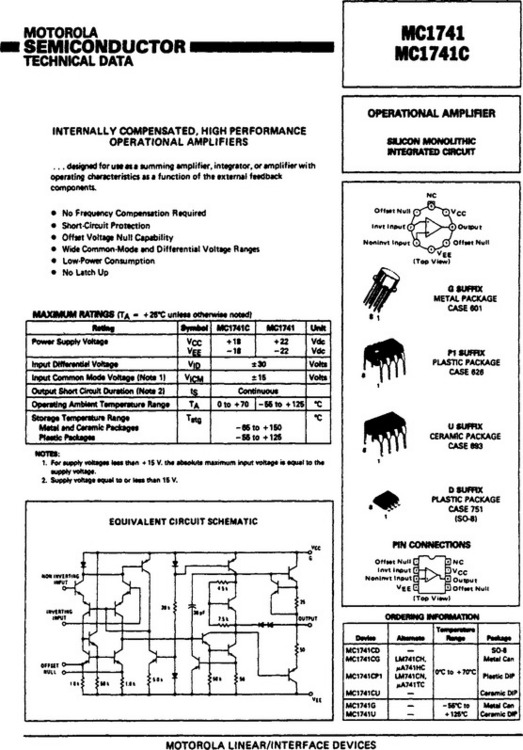

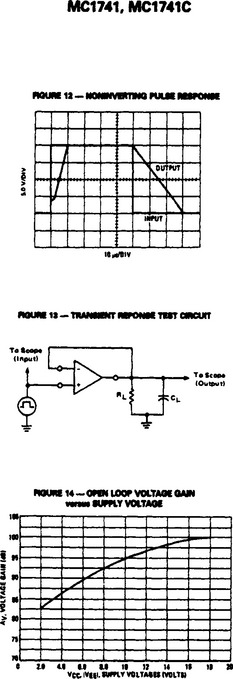

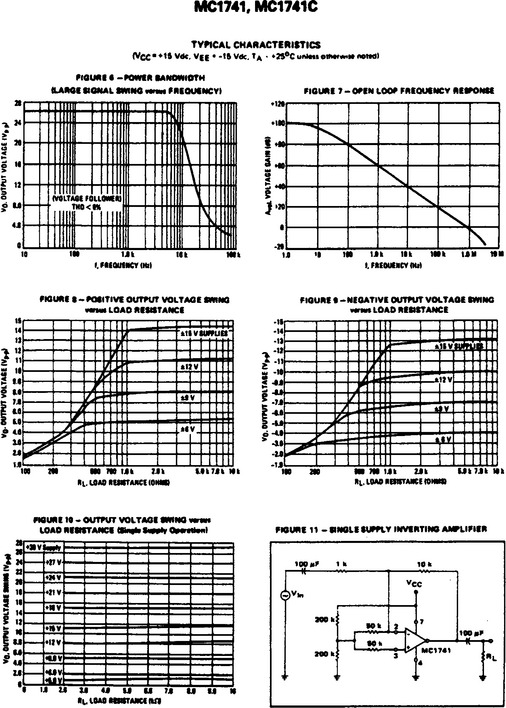

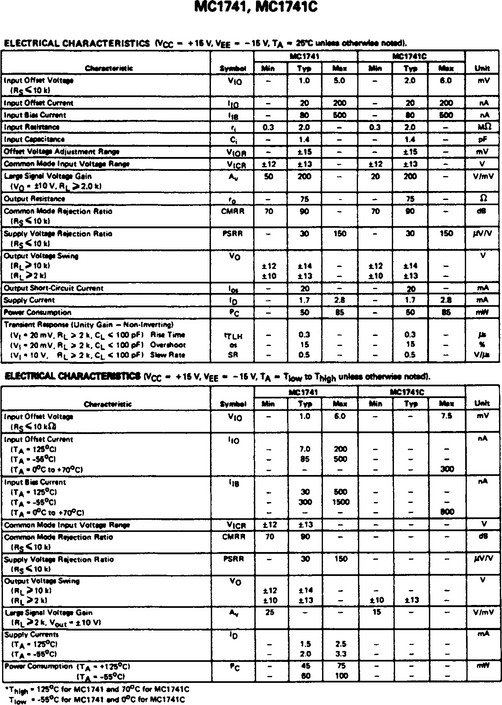

Data sheets for the Motorola MC1741 operational amplifier (pages 2–170 through 2–174). Copyright of Motorola, Inc. Used by permission.
