Content preview from Principles of Power Integrity for PDN Design--Simplified: Robust and Cost Effective Design for High Speed Digital Products

Chapter 1. Engineering the Power Delivery Network

1.1 What Is the Power Delivery Network (PDN) and Why Should I Care?

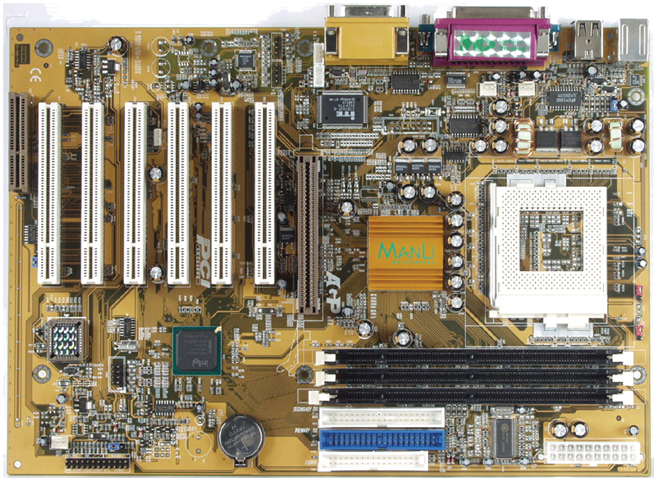

The power delivery network consists of all the interconnects in the power supply path from the voltage regulator modules (VRMs) to the circuits on the die. Generally, these include the power and ground planes in the boards, cables, connectors, and all the capacitors associated with the power supply. Figure 1.1 is an example of a typical computer board with multiple VRMs and paths delivering the power and ground to the pads of all the active devices.
