B.3. Subsystem Shipping
The Shipping subsystem contains those classes that deal with the work of packing and shipping orders to customers.

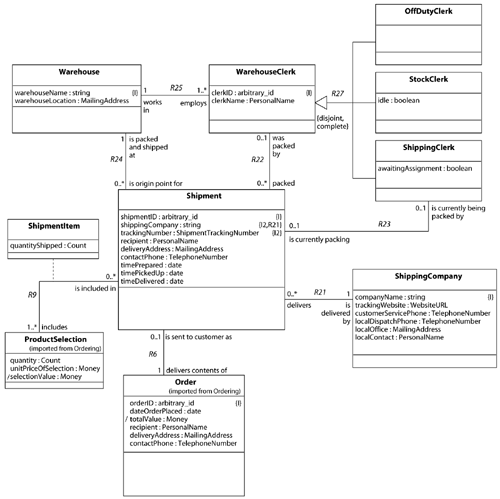

The class diagram for this subsystem is shown in Figure B.7.
Figure B.7. Shipping Subsystem Class Diagram
Shipment
A Shipment is prepared to send a customer's product selections to the customer.
State Machine

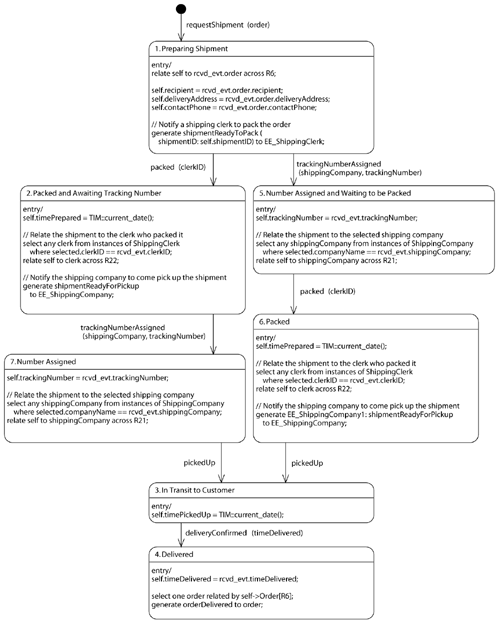

See Figure B.8.
Figure B.8. Shipment Statechart
Attributes
shipmentID: arbitrary_id
A unique ID assigned by the bookstore to the shipment.
shippingCompany: same_as
The shipping company who delivers the shipment. ...
