Appendix C. Installing Bind: Getting a Server to talk DNS

Every good network professional needs a good DNS server.

And the most commonly used DNS server on the Internet is BIND. Installing BIND is fairly simple, but just in case you need some extra reassurance, here are some handy instructions on how to do it.

#1 Installing BIND on Windows (XP, 2000, Vista)

Download the installer from https://www.isc.org/downloadables/11
Unzip the file.
Run the BINDInstall.exe program located in the unzip directory.

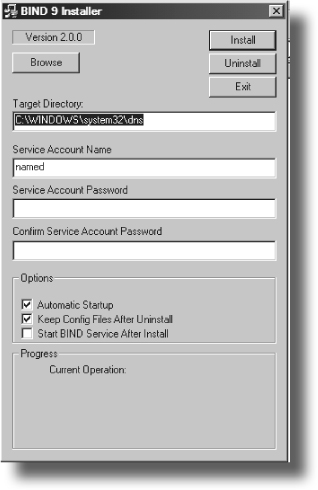

Enter a password for your service and hit the Install Button.
Create a directory C:\named\zones

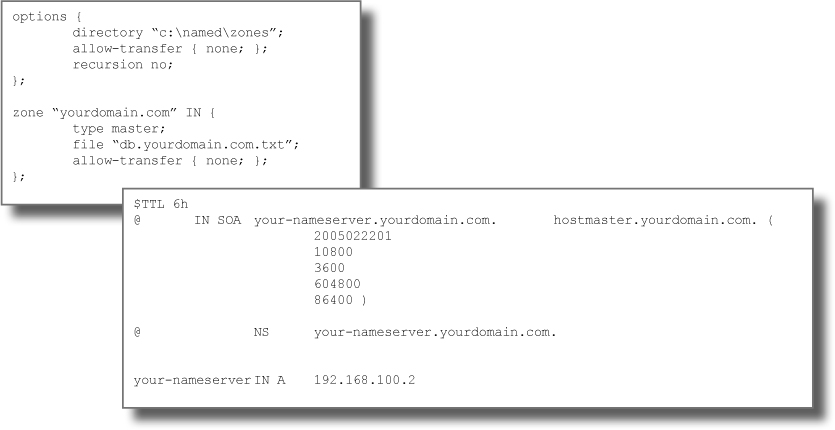

Create the file called named.conf (see an example below).
Create the file called db.yourdomain.com (see an example below).
Start it up!

#2 Installing BIND Mac OS X Server

BIND is already installed on Mac OS X Server; just turn it on in Server Manager.
Use Server Manager to configure your domain.

#3 Installing BIND Mac OS X Client & Linux

Download the installer from https://www.isc.org/downloadables/11
Unzip the file.
Open a Terminal window.
Switch to the directory where the bind file unzipped.
Type ./configure
Type make
Type sudo make install.
Edit the named.conf and create the db.yourdomain.com files. They should be ...
