Integrating Backup Recovery and Media Services and IBM Tivoli Storage Manager on the IBM eServer iSeries Server

Chapter 8. Backup Recovery and Media Services up and running 181

4. In the New Media Pool Based on window (Figure 8-9), enter a name and description for

the media pool.

Note that you only select the Share media across systems option if you are in a BRMS

network. When complete, click OK.

Figure 8-9 Creating a new media pool

5. You return to the Media Pools window shown in Figure 8-8. Press F5 to refresh the

window.

6. Repeat this procedure until you create all your media pools.

8.7 Adding media to the pool

You now have a media pool and want to add media to it.

8.7.1 Adding media using a tape library device

To add media using a tape library device, follow these steps:

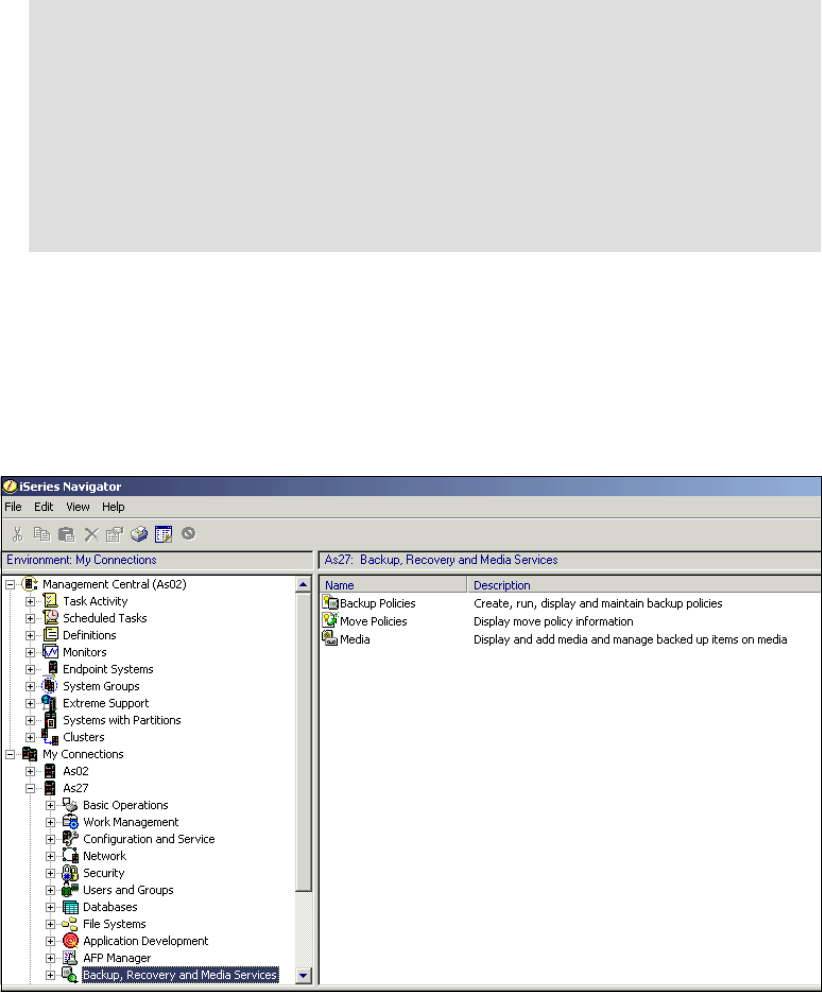

1. In iSeries Navigator, select Backup, Recovery and Media Services-> Media-> Tape

Volumes. Right-click Tape Volumes and select Add. See Figure 8-10.

182 Integrating Backup Recovery and Media Services and IBM Tivoli Storage Manager

Figure 8-10 Selecting the option to add media

2. On the Welcome wizard window that opens, click Next.

3. In the Add Media - Select Media Pool window (Figure 8-11), select the pool that you

created. Click Next.

Figure 8-11 Add Media - Select the Media Pool window

4. In this example, there is a tape library device. On the Add Media - Display Media Library

Volumes window (Figure 8-12), select Yes and choose a library device if you have more

than one. Click Next.

Note: If you select a pool that does not have a library device, the next window does not

appear. Then you must manually add tape volumes.

Chapter 8. Backup Recovery and Media Services up and running 183

Figure 8-12 Add Media - Display Media Library Volumes window

5. After you physically insert your volumes, you can take advantage of the library. On the Add

Media - Specify Media Library Category window (Figure 8-13), select All inserted

volumes, which is the default (for example, those with the Category INSERTED). Click

Next.

Figure 8-13 Add Media - Specify Media Library Category window

6. On the Add Media - Select Media Library volumes window (Figure 8-14), select each

volume to add and click Add.

Figure 8-14 Add Media - Select Media Library Volumes window

184 Integrating Backup Recovery and Media Services and IBM Tivoli Storage Manager

7. The new volumes should be initialized. On the Add Media - Initialize Volumes window

(Figure 8-15), select the volumes to initialize if required. Click Next.

Figure 8-15 Add Media - Initialize Volumes window

8. On the Add Media - Summary window (Figure 8-16), review the summary details. If you

change your mind about some of the details, you may click Back to change them. Since

you are done adding media, click Finish.

Figure 8-16 Add Media - Summary window

Chapter 8. Backup Recovery and Media Services up and running 185

8.7.2 Removing media

To remove volumes from BRMS, follow these steps as shown in Figure 8-17:

1. Select Backup, Recovery and Media Services-> Media-> Tape Volumes.

2. Right-click Tape volumes and select Remove Backup, Recovery and Media Services->

Media-> Tape Volumes. Right-click Tape Volumes and select Remove.

3. Confirm the removal.

Figure 8-17 Removing media

8.7.3 Manually adding media

Adding volumes manually is essentially the same as adding them using a media library. The

difference is that this time, you select

No for a media library.

Note: Volumes do not have to exist when you add them. However, BRMS assumes that

they exist in the location specified.
