Power Transmission

5.1 Power transmission: gear drives

5.1.1 Some typical gear drives

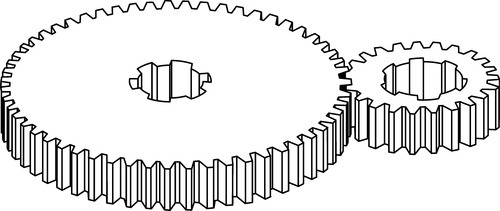

Straight tooth spur gears

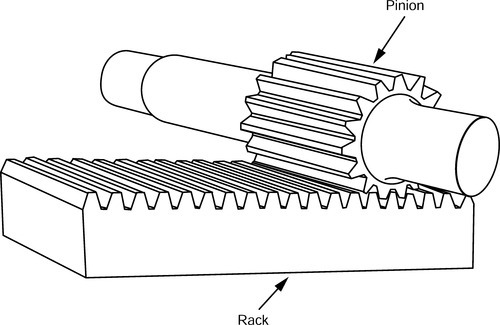

Rack and pinion: converts rotary to linear motion

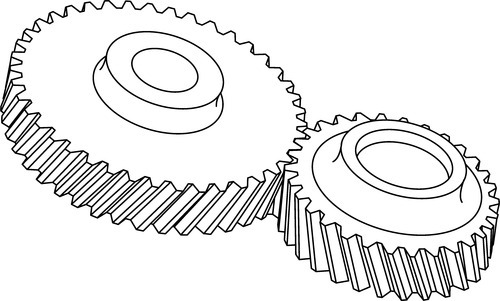

Single-helical tooth spur gears

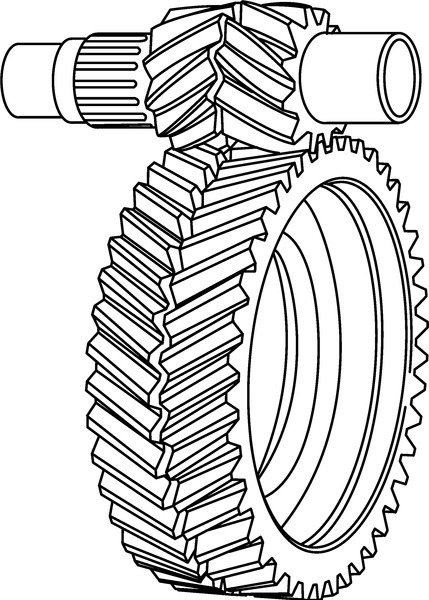

Double-helical tooth spur gears

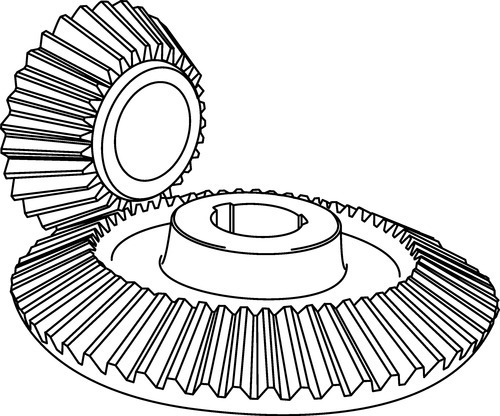

Straight tooth bevel gears

Worm and ...
