Configuring OSPF on NSX Edge

Configuring OSPF routing on NSX Edge (Perimeter Edge) allows logical networks to be learned by the logical router and distributed through a transit network. The steps are as follows:

  1. In the routing categories list, select Global Configuration.

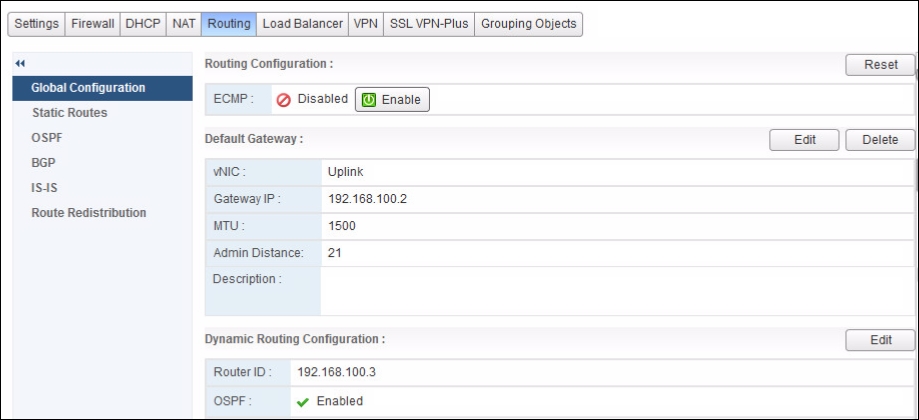

  2. In the Dynamic Routing Configuration panel, click Edit to open Edit Dynamic Routing, as shown in the following screenshot:

    Configuring OSPF on NSX Edge

  3. In the Dynamic Routing Configuration dialog box, perform the following actions:
    • Select Uplink - 192.168.100.3 from the Router ID drop-down menu.
    • Check the Enable OSPF checkbox.
    • Leave all other fields at the default value and click Save, as shown in the following ...
