Chapter 4. Exploring your inventory 141
Show structure diagram
Show Program diagram
The last two items fall under the category of visual relationships. The e-business function is
geared for business analysts. The rest are geared to Fix.
4.4 Visual relationships
As you have seen, there are three key visuals that WSAA uses to help you understand your
application:
Impact analysis diagram
Graphic run-time flow
Program structure
We describe aspects of each in further detail in this section.

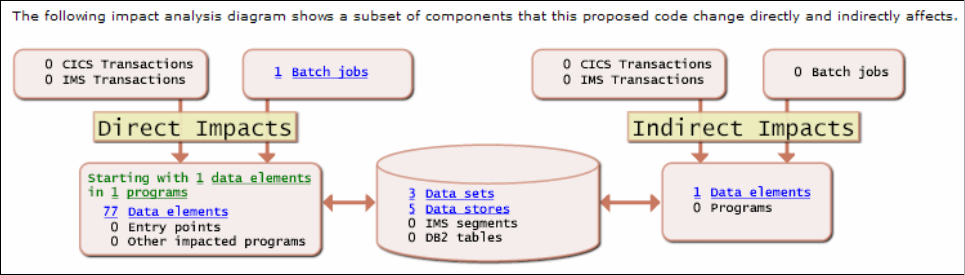

Impact analysis diagram
The impact analysis diagram is one of the more powerful displays in WSAA. In one
concentrated view, you can see the number of compo
