In this chapter, we will use voltage and current sources and perform transformations and simplify circuits, a very powerful technique of circuit analysis.
16.2 The Technique
The technique involves converting voltage sources to current sources and vice versa.
According to the technique:

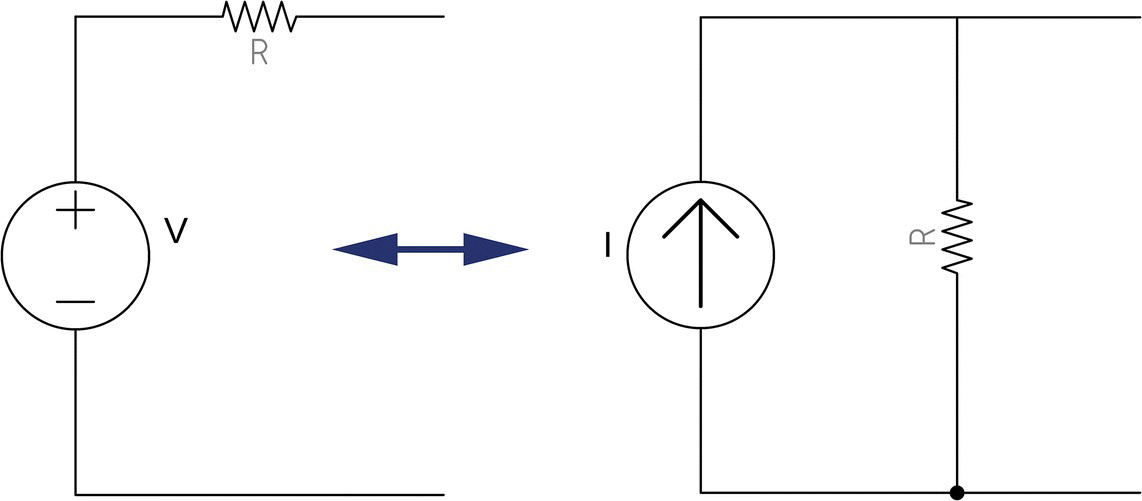

A voltage source in series with a resistor can be converted into a current source in parallel with the same resistor and vice versa, as shown in Figure 16.1.
