B
树基础知识
｜
43

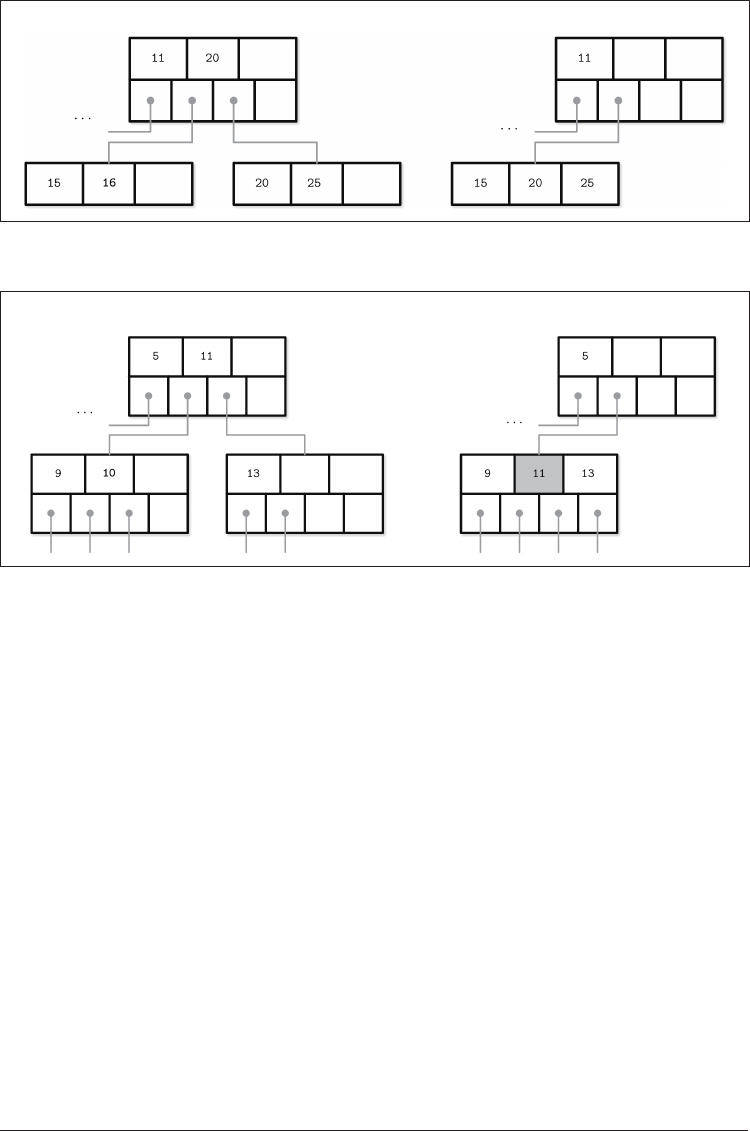

合并前 合并后
图
2-13
：叶节点的合并
合并前 合并后
图
2-14
：非叶节点的合并
总之，假设元素已经被删除，节点合并分为三步：
1. 从
右
节点复制所有元素到
左
节点。
2. 从父节点删除
右
节点指针（如果是非叶子节点合并，则将此指针进行
降级
）。
3. 删除右节点。
为了减少分裂和合并的次数，B 树经常采用的技术之一是再平衡，我们将在 4.4 节中讨
论它。
2.4
本章小结
在本章中，我们首先介绍了创建磁盘存储专用结构的动机。我们指出了二分搜索树可能
具有相似的复杂度特性，但因为其扇出低，且平衡会引起的大量数据移动与指针更新，
所以不是特别适用于磁盘。而 B 树通过增加每个节点中存储的数据项的数目（高扇出）
和减少平衡操作的频率来解决这两个问题。
44
｜
第
2
章
随后，我们讨论了 B 树结构的内部原理以及其查找、插入和删除操作的算法概要。分裂
和合并操作有助于重新构造树，以便在添加和删除元素时保持树的平衡。我们将树的深
度保持在最小值，并在节点中仍有一些可用空间时向现有节点中添加数据项。
我们可以利用这些知识在内存中构造一个 B 树。为了实现一个基于磁盘的 B 树，我们需
要深入了解如何在磁盘上布局 B 树的节点，以及如何使用数据编码格式来构建磁盘上的
布局。
更多阅读
如果你想了解更多本章中提到的概念，可以参考以下资料： ...
