Background network infrastructure
Luckily, the customer already has a fully meshed MPLS network from one of the major Internet service providers in place. He also has a different subnetwork with IPv4 in all of his office locations.

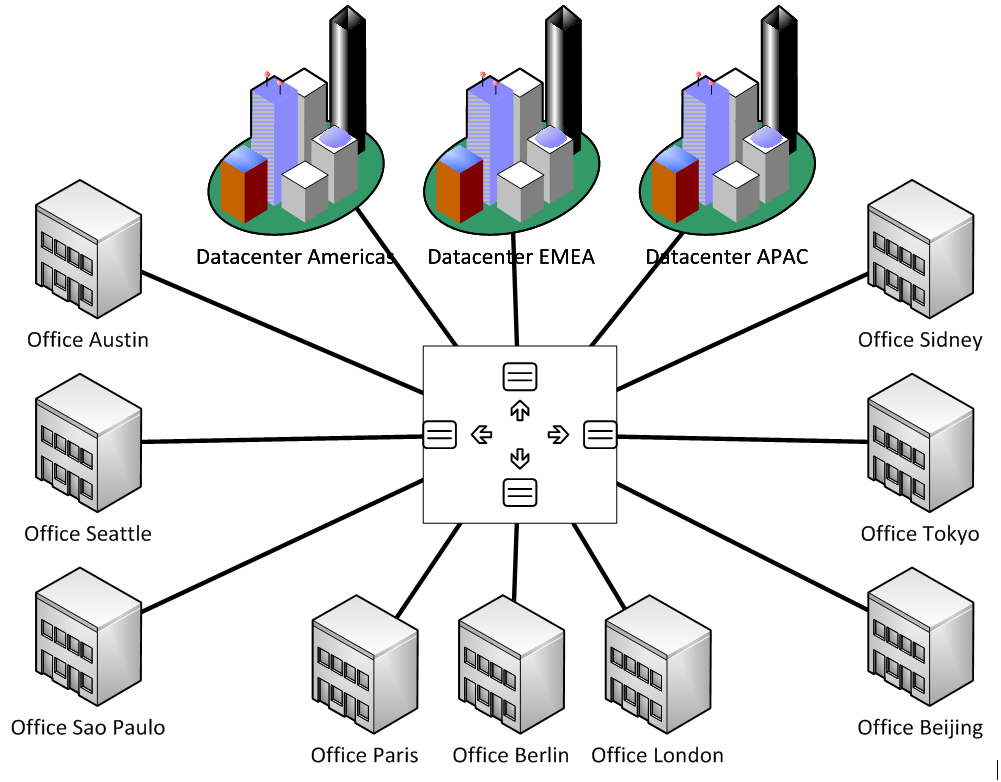

The MPLS network looks like the following:
Currently, the customer uses the following IP ranges for his environment:
|
Region |
Location |
IP Range/Subnet (CIDR) |
|
EMEA |
Global |
010. 000.xxx.xxx/8 |
|
EMEA |
DMZ |
010.010.xxx.xxx/16 |
|
EMEA |
DC EMEA |
010.011.xxx.xxx/16 |
|
EMEA |
Office Berlin |
010.012.xxx.xxx/16 |
|
EMEA |
Office Paris |
010.013.xxx.xxx/16 |
|
EMEA |
Office London |
010.014.xxx.xxx/16 ... |
