domestic bell installation, where the transformer is to BS 3535.

Note that bell wire is usually only suitable for 50-60

V,

which

means that it should not be run together with circuit cables of

higher voltages.

Reduced voltage systems

[IEE Regs 471-15]

The Health and Safety Executive accepts that a voltage of

65 V

to

earth, three phase, or

55 V

to earth, single phase, will give protec-

tion against severe electric shock. They therefore recommend that

portable tools used on construction sites etc. be fed from a

110 V

centre-tapped transformer to BS

4343.

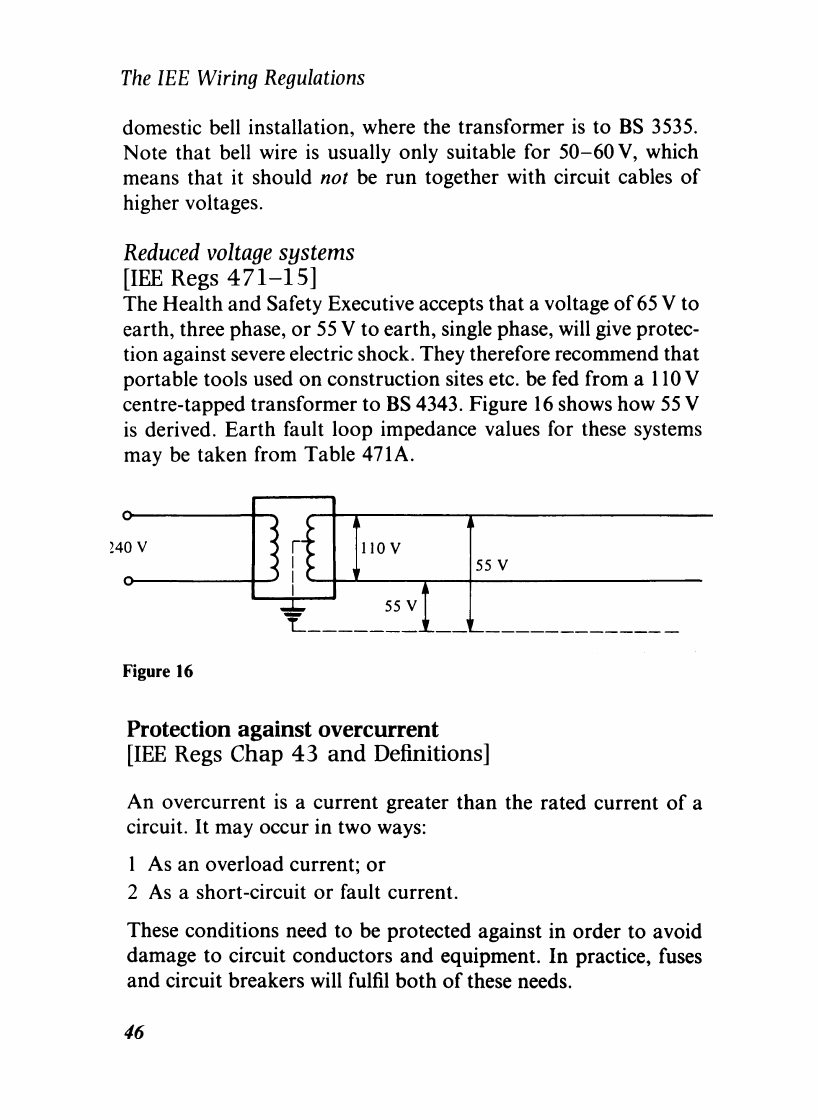

Figure 16 shows how

55

V

is derived. Earth fault loop impedanc
