32 PHYSICAL FOUNDATIONS OF MICROWAVE TECHNOLOGY

G

~////////////////////,~

F

|

W

, , ,

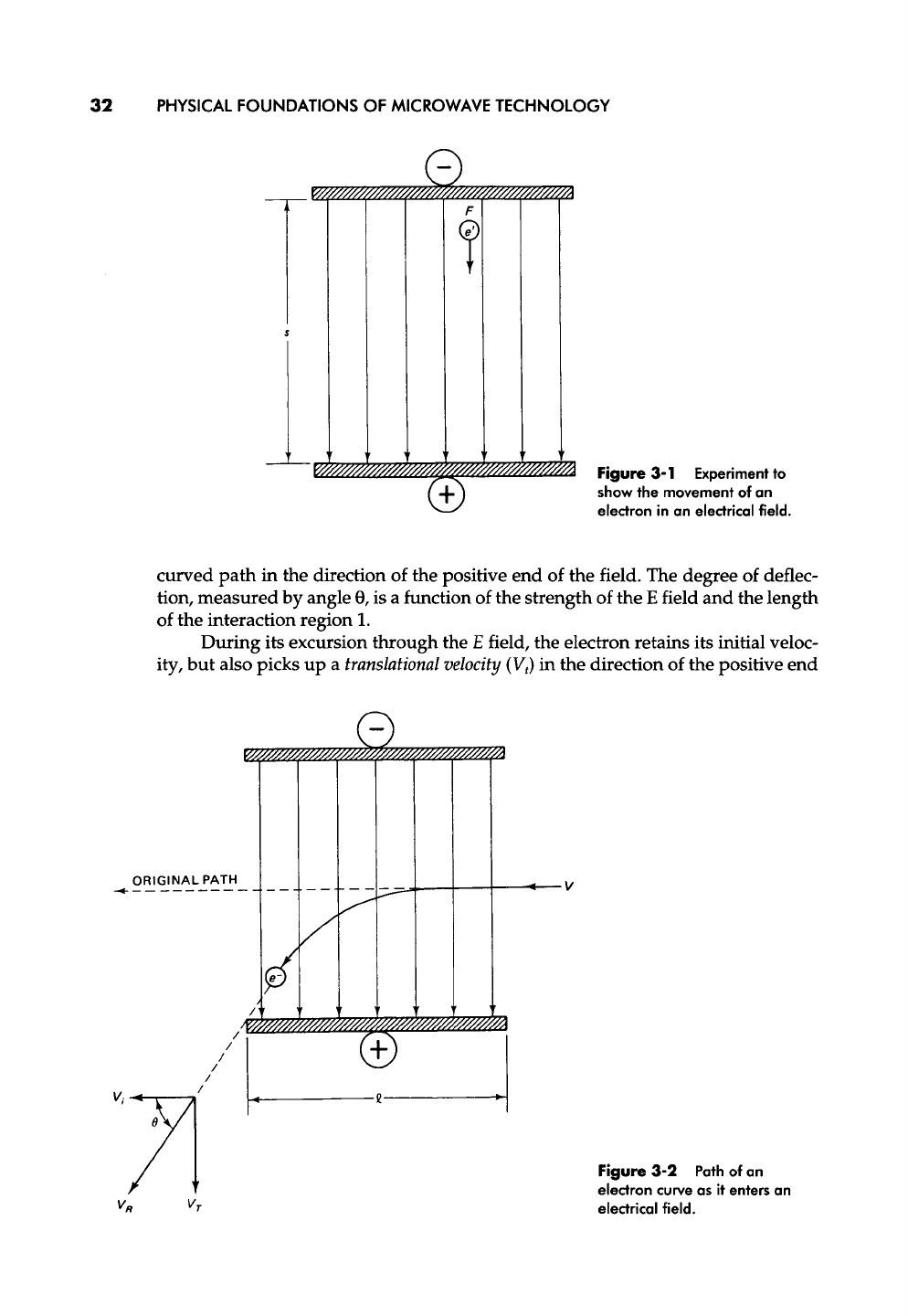

Figure 3-1 Experiment to

show the movement of an

electron in an electrical field.

curved path in the direction of the positive end of the field. The degree of deflec-

tion, measured by angle O, is a function of the strength of the E field and the length

of the interaction region 1.

During its excursion through the E field, the electron retains its initial veloc-

ity, but also picks up a

translational velocity (Vt)

in the direction of the positive end

0

ORIGINA L

PATH_

_

VA Vr

Figure 3-2 Path of an

electron curve as it enters an

electrical ...
