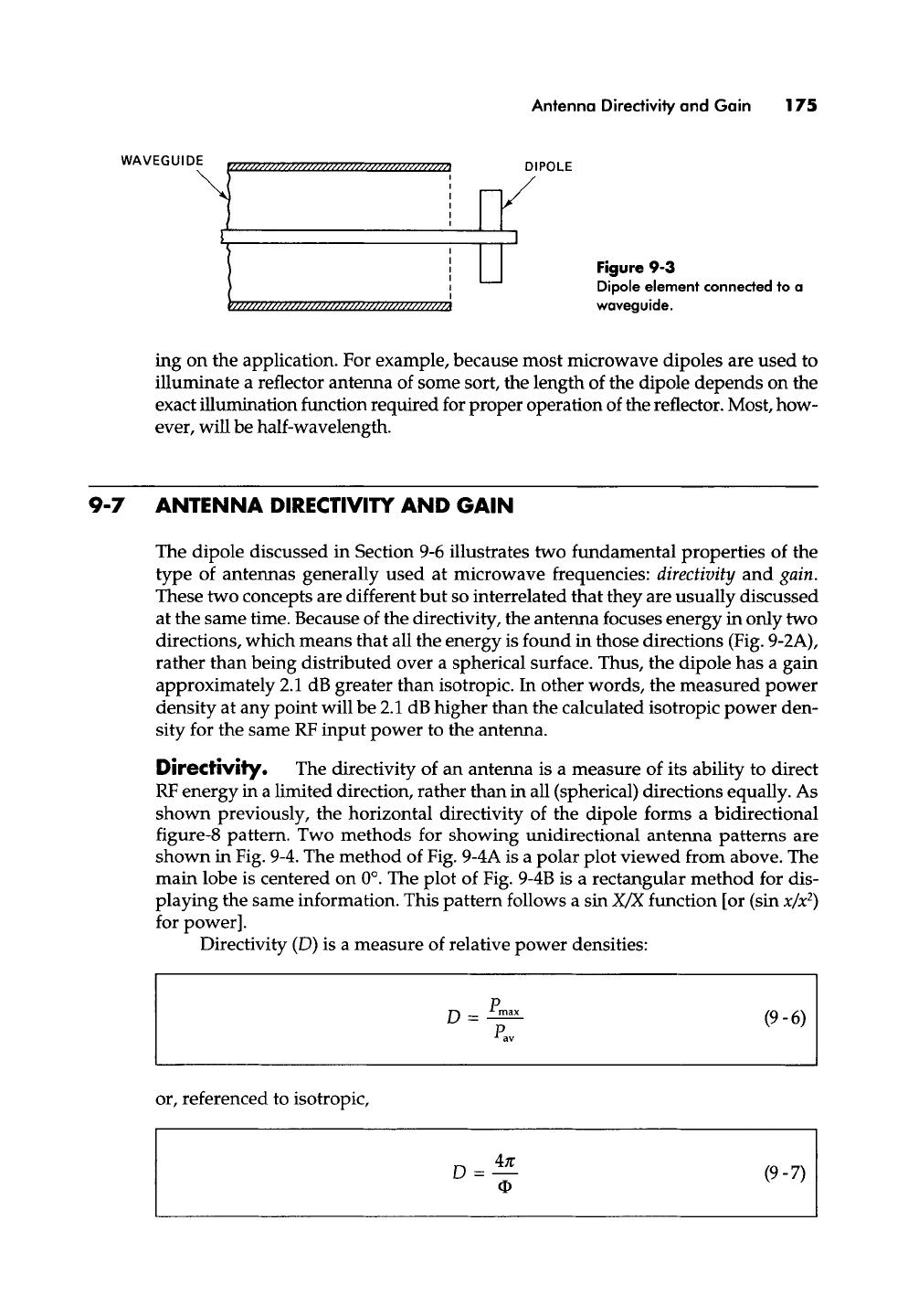

Microwave and Wireless Communications Technology

Antenna Directivity and Gain 175

WAVEGUIDE

r/I///////////////////////////////////////////]

,

I

I

I

I

i

////////////////////////////////////////////]l

DIPOLE

n/

!

!1

Figure 9-3

Dipole element connected to a

waveguide.

ing on the application. For example, because most microwave dipoles are used to

illuminate a reflector antenna of some sort, the length of the dipole depends on the

exact illumination function required for proper operation of the reflector. Most, how-

ever, will be half-wavelength.

9-7 ANTENNA DIRECTIVITY AND GAIN

The dipole discussed in Section 9-6 illustrates two fundamental properties of the

type of antennas generally ...
