Directional Couplers
157
!ii•i•i•iiiiiii••iiii•iiiiiii•i•iii••ii•••i•i•iii•ii•ii•iiii•iiiii•iii•i•i••i•ii••i•i•i•i••ii•iii•i•iii•iiiiii•i!i•iiii•i•i•ii
(A)
(B)
S

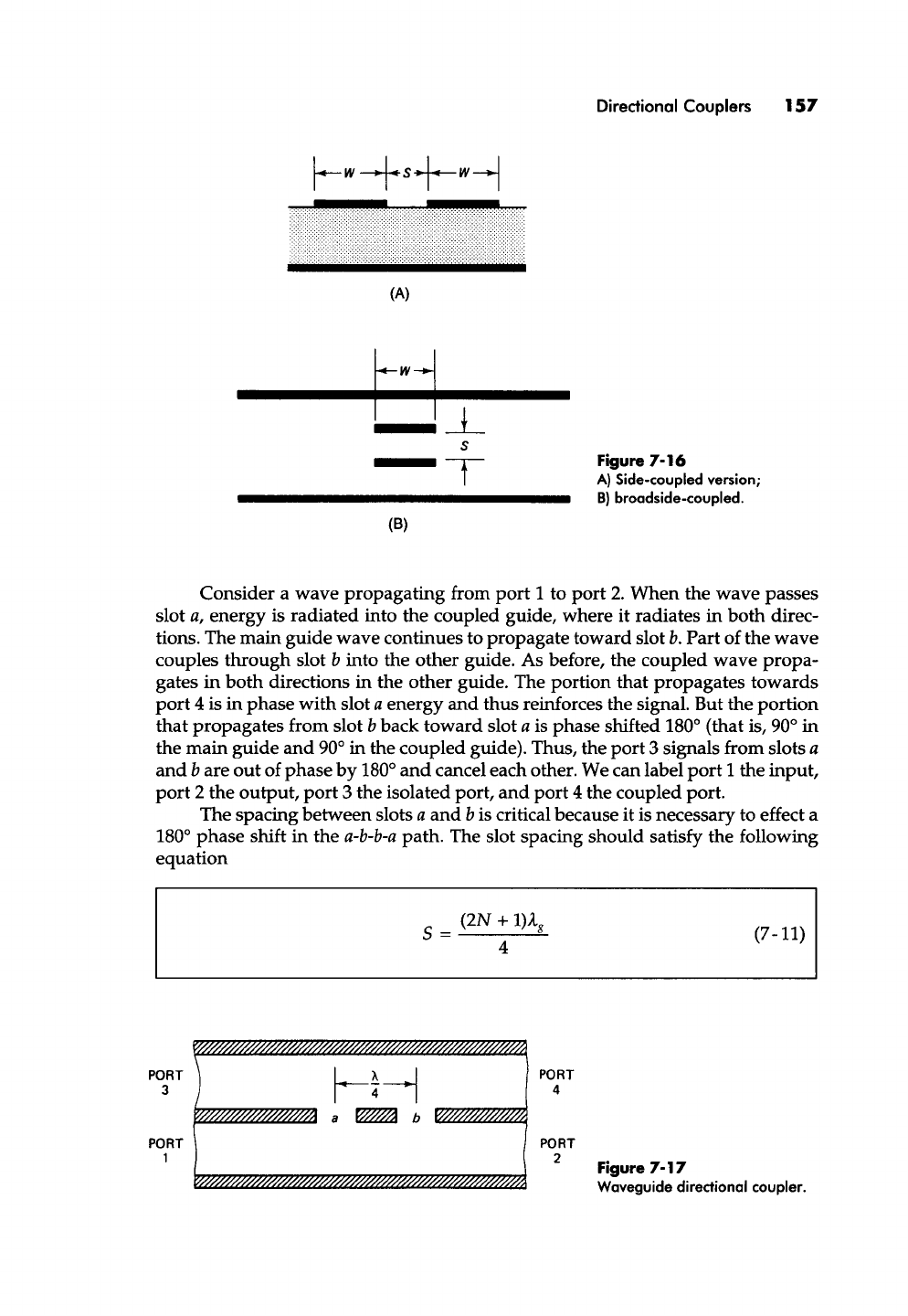

Figure 7-16
A) Side-coupled version;
B) broadside-coupled.
Consider a wave propagating from port I to port 2. When the wave passes
slot a, energy is radiated into the coupled guide, where it radiates in both direc-
tions. The main guide wave continues to propagate toward slot b. Part of the wave
couples through slot b into the other guide. As before, the coupled wave propa-
gates in both directions in the other guide. The portion that propagates towards
port 4 is in
