第 36 章 如何制作甘特图 如何制作甘特图

本作品已使用人工智能进行翻译。欢迎您提供反馈和意见:translation-feedback@oreilly.com

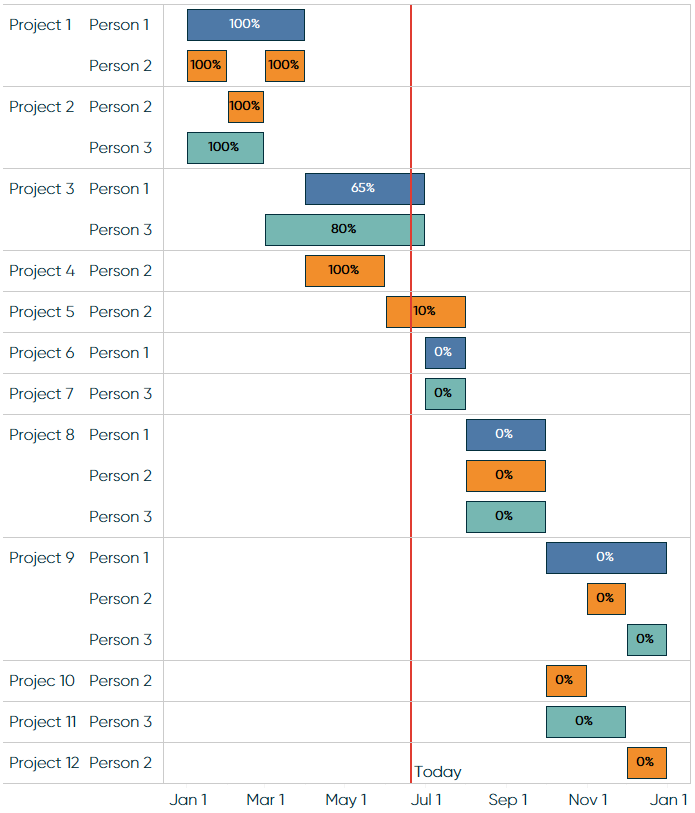

甘特图传统上用于项目进度的可视化。 甘特图可以有效地说明大型业务运营背景下的任务工期和依赖关系。与使用 Tableau 构建的多种可视化一样,"Gantt Bar(甘特图条)"也是一个标记类型选项,它具有一定的灵活性,允许您以多种其他方式使用这种图表类型。 为了开始演示甘特条形图标记类型的实用性,我们将使用传统的应用构建一个甘特图来说明项目进度。最终结果如下

prta 3601

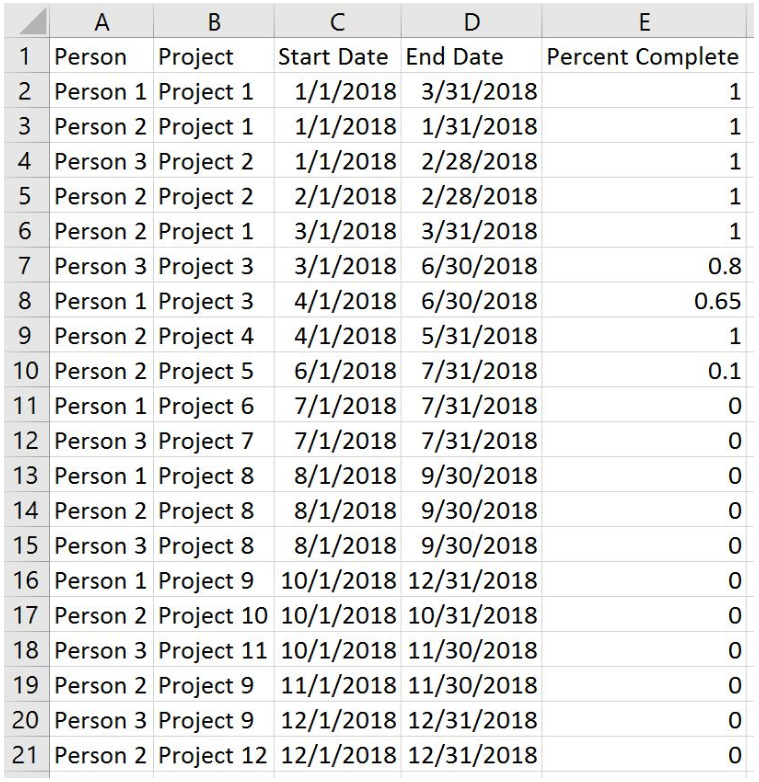

这是为数不多的无法使用 "示例 - 超级市场 "数据源进行说明的示例之一,因此我将使用以下数据集:

prta 3602

在本示例中,假设我们是一位拥有三名员工的经理,我们正在绘制他们全年十二个项目的日程表。 我们已经在 Excel 中创建了时间表,但希望利用数据可视化来:(a)更好地了解项目和员工之间的关系;(b)跟踪每个项目的完成进度;以及(c)为员工提供可视化时间表。这三个功能都可以通过甘特图来实现。

甘特图是用一个日期、一个或多个维度以及零到两个测量值创建的。日期提供了坐标轴;维度提供了我们希望可视化的细目和/或甘特图条的编码;度量创建了甘特图条的长度和/或其编码。

对于这个甘特图,我希望有一个从左到右的连续坐标轴,因此我会将日期维度(作为连续字段使用)放在列层上。查看之前显示的最终产品,项目和人员的每种组合都有行,这说明这些细分项位于行架上。 对于这种维度和度量的组合,甘特图条是 Tableau 中的默认标记类型,因此将字段放在视图上就会得到甘特图这个基础:

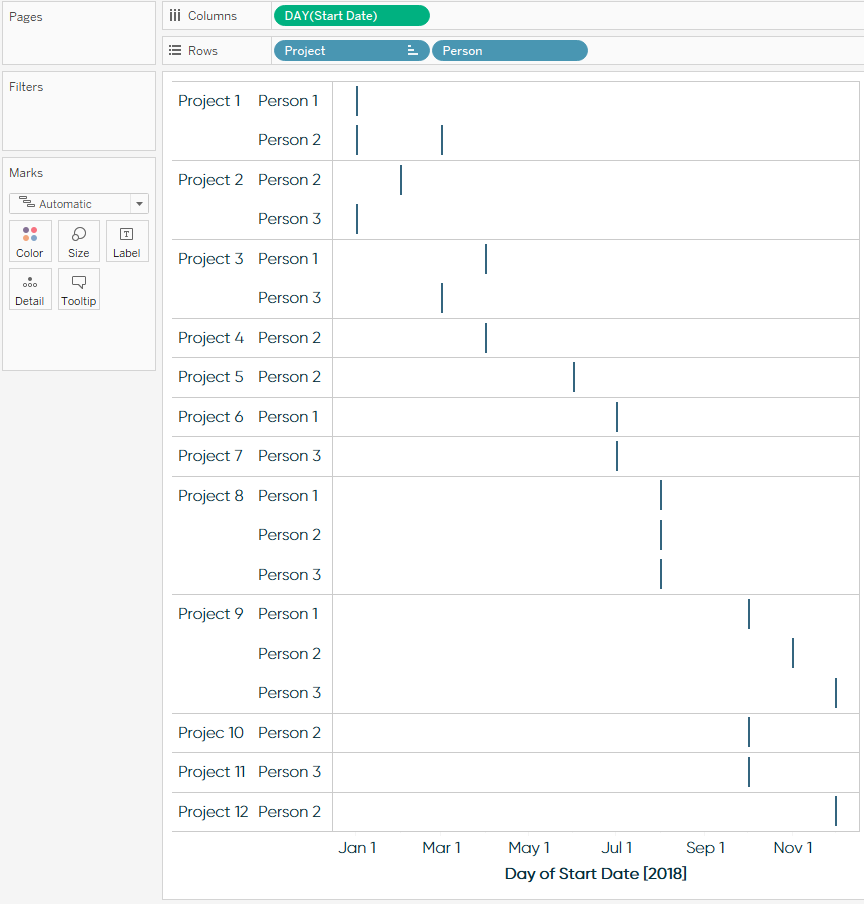

prta 3603

Tableau 的做法是在每个项目和人员组合的开始日期处放置一个甘特图标记。 要扩展甘特图条以说明任务持续时间,我们需要根据每个项目/人员组合的天数来确定每个标记的大小。 您可能在底层数据集中有一个工期字段,但也可以在 Tableau 中使用计算字段来创建。在这种情况下,工期就等于 [结束日期] - [开始日期]:

prta 3604

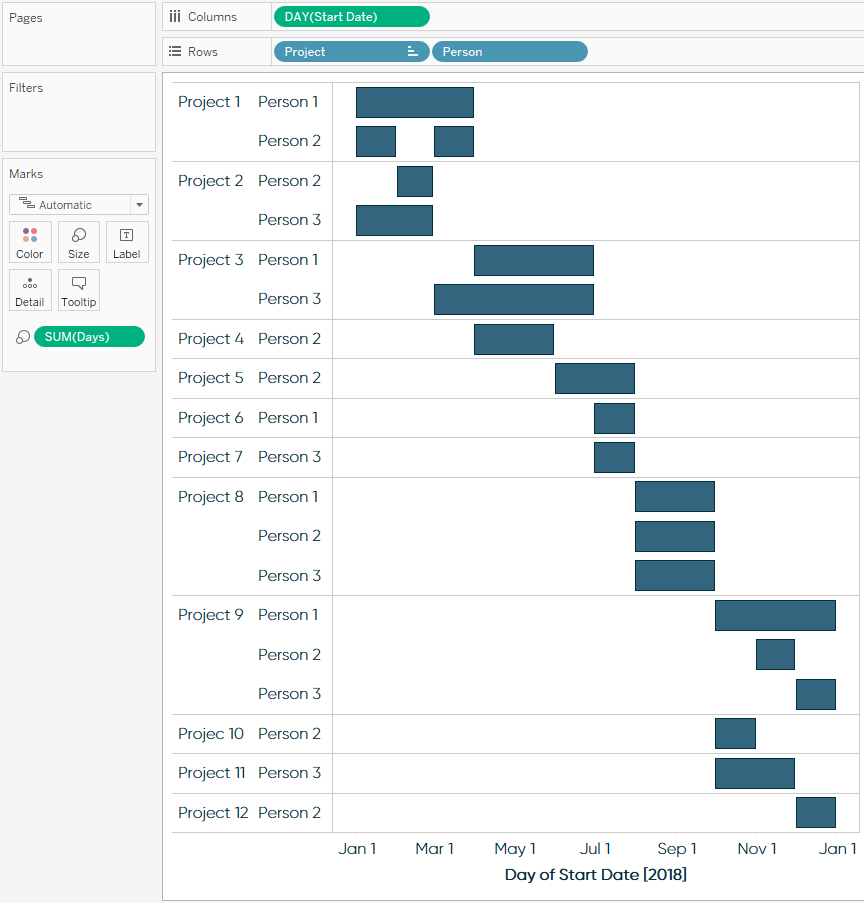

将工期放在 "尺寸标记卡 "上可以扩展甘特图标记,这样工期较长的项目/人员组合将显示较长的条形图,而工期较短的项目/人员组合将显示较短的条形图:

prta 3605

至此,我们有了一个可用的甘特图,但在 Tableau 中仍有通过格式化、编码和参考线增加很多价值的空间。 这一步可根据您自己的要求灵活掌握,但作为一个示例,我做了以下工作: ...
