第 44 章 如何制作动态双轴凹凸图 如何制作动态双轴凹凸图

本作品已使用人工智能进行翻译。欢迎您提供反馈和意见:translation-feedback@oreilly.com

凹凸图是显示维度成员在不同时间段内的排名情况的有效方法。 例如,您可能想了解特定产品类别在贵公司不同年份的销售排名情况。或者,您可能想使用离散月份作为时间元素,查看产品类别的排名是否会因季节性而发生变化。又或者,您想做一些工作之外的事情,看看您的梦幻足球运动员在不同的统计数据中每周的排名如何!

不管是什么情况,我都发现凹凸图是一种引人入胜、易于理解的可视化排名随时间变化的方法。 Tableau Zen 大师马特-钱伯斯(Matt Chambers)用凹凸图创建了今年最受欢迎的 Tableau 公共可视化之一,并在他的网站Sir Viz-a-Lot 上提供了他的技术。

除了引人入胜、易于理解之外,这种图表类型在 Tableau 中的制作也非常简单。

本教程将向您介绍如何在 Tableau 中制作凹凸图,还将介绍如何利用双轴在视图上提供额外的上下文,以及如何让最终用户选择被排序的度量和被比较的维度成员。

如何在 Tableau 中制作凹凸图

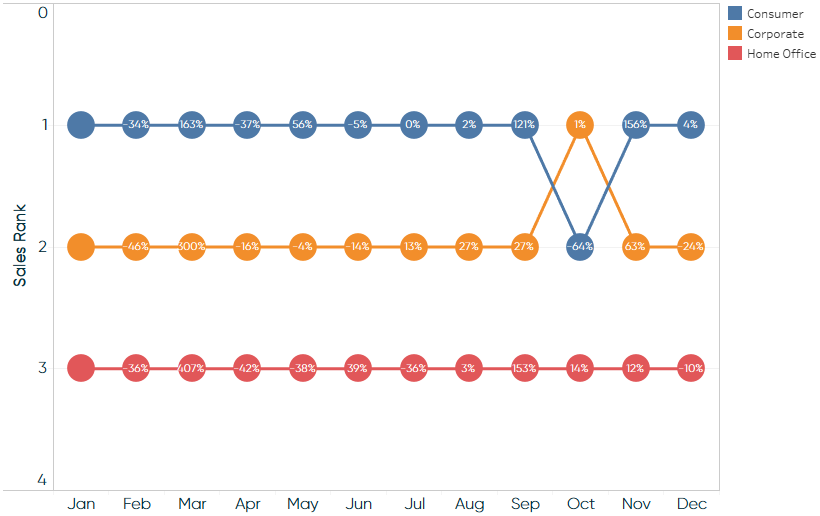

在教程的第一部分,我们将重新创建这个凹凸 图表,显示样本 - 超级市场数据集的细分市场在 1 月和 12 月间的 SUM(销售额)指标排名情况:

prta 4401

要创建凹凸图,首先要将要评估的时间元素放到列架上。为了重新创建如图所示的凹凸图,我在列架上放置了离散的 MONTH(订单日期)。我想指出的是,由于选择了月份日期部分,而且我在这里使用的数据集有四年的数据,因此十二个月中的每个月都将有四年的数据汇总在一起。我这样做是为了说明问题,但如果您要使用这种图表类型来显示随时间的变化,请确保您选择的日期最适合您的分析。

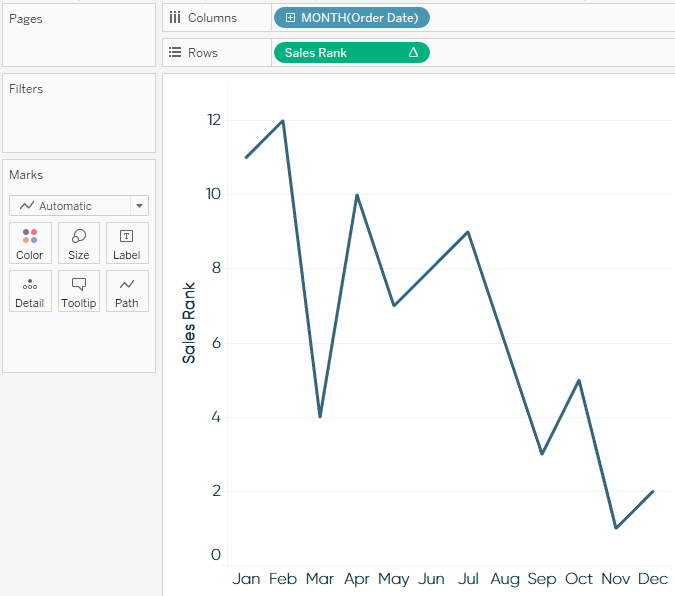

在 "措施 "架上,我将为我们要进行排名的措施放置一个计算字段;在本例中是销售额。计算字段的公式是 RANK(SUM(Sales))。此时,视图如下:

prta 4402

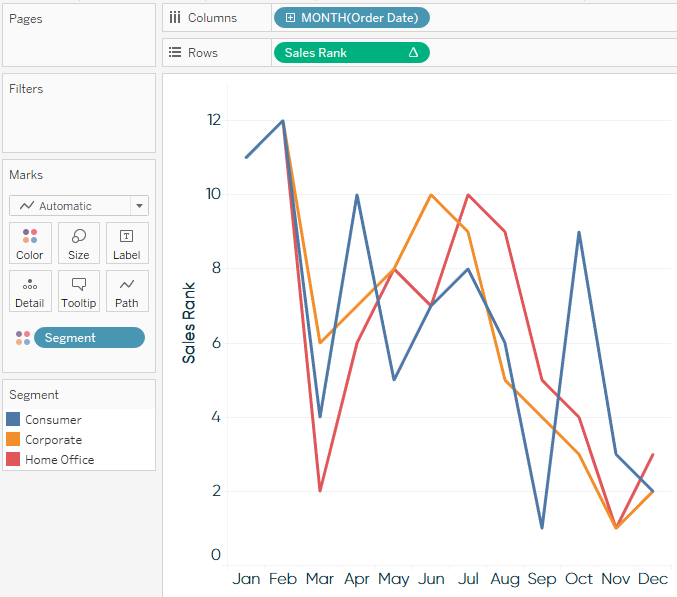

在 Tableau 中,RANK 函数就像表格计算一样,因此当它被添加到视图中时, ,它是在整个表格中从左到右进行计算的。 要按 "分段 "维度对销售金额进行排序,我们可以将 "分段 "维度拖到 "颜色标记卡 "上,使视图的详细程度更加细化:

prta 4403

这样我们就更接近目标了,但我们仍然需要更改 RANK 表的计算方法,以便对每个分段进行计算。销售排名测量值上的 delta 符号告诉我们正在进行表格计算。要编辑表格计算的方式,请右键单击销售排名测量值,将鼠标悬停在 "使用计算 "上,然后选择 "分段":

此时,从技术上讲,我们已经在 Tableau 中得到了一个凹凸图。最好的排名(即 1)放在最上面可能更直观,因此我将右键单击销售排名轴,单击编辑轴,然后选中反转比例复选框,从而反转坐标轴: ...
