Outer shell

Ho

od

Focal plane assembly

Primary mirror

Tertiary

mirror

Outer truss

(a)

(b)

Fore telescope

Nadir telescope

Aft telescope

Optical bench

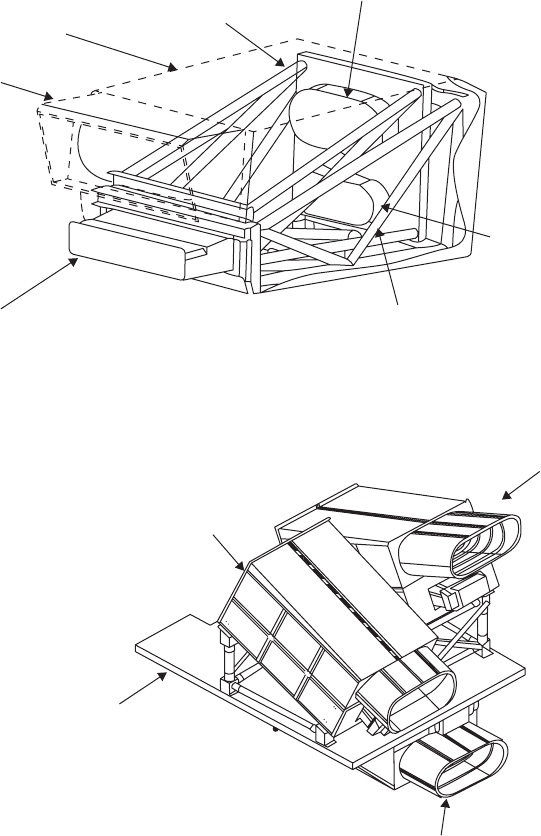

FIGURE 9.10

Schematics of the mechanical conguration of the Panchromatic Remote Sensing Instrument

for Stereo Mapping EO module. (a) Single telescope and (b) three telescope assembly on the

optical bench. (Adapted from Osawa, Y., PRISM, AVNIR-2, PALSAR—ALOS's major mission

instruments at ALOS Symposium, http://www.eorc.jaxa.jp/ALOS/conf/symp/2001/5.pdf,

accessed on May 15, 2014, 2001.)

297Adding the Third Dimension: Stereo Imaging

along-track, threefold stereo imaging usi ...
