Chapter 8. Advanced host and volume administration 291

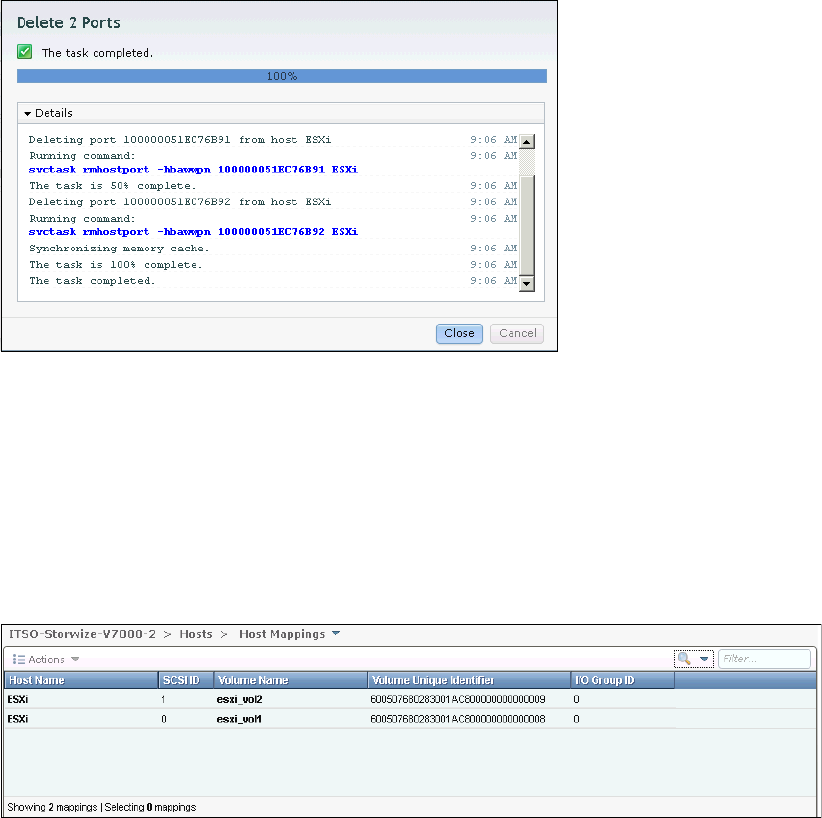

Click Delete and the changes are applied to the system (Figure 8-50).
Figure 8-50 Delete host ports
Click Close to return to the Host by Ports window.
8.3 Host mappings overview
Select Host Mappings (Figure 8-1 on page 270) to open the host mappings overview
(Figure 8-51).
Figure 8-51 Host mappings
This window shows a list of all the host and volumes. In our example, you can see that the
host “ESXi” has two volumes mapped, and the associated SCSI ID, Volume Name, and the
Volume Unique Identifier (UID). If you have more than one I/O group, you also see which
volume is handled by which I/O group ...
