Chapter 9. External storage virtualization 337
Figure 9-3 shows an example of how to cable devices to the SAN. Refer to this example as
we describe the zoning.

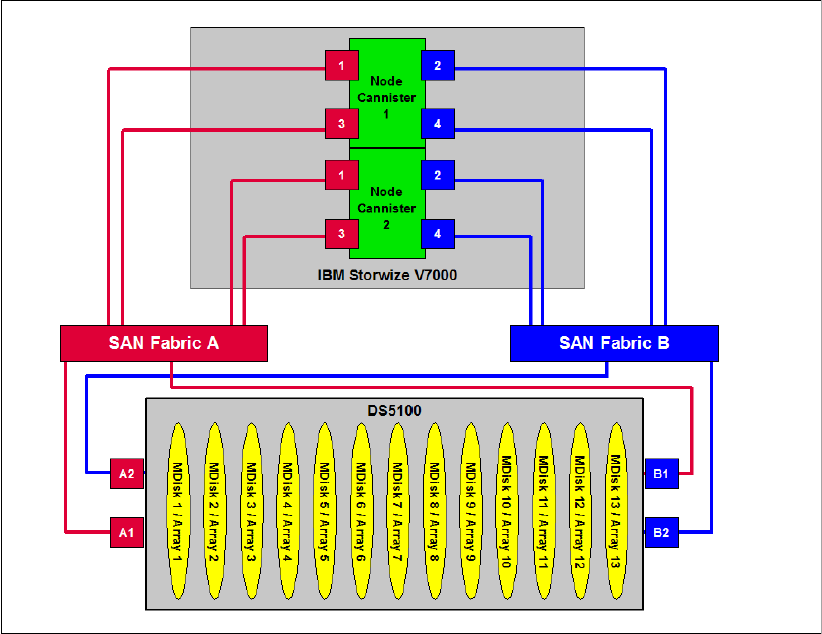

Figure 9-3 SAN cabling and zoning example diagram
Create an IBM Storwize V7000 / external storage zone for each storage system to be
virtualized. For example:
Zone DS5100 controller ports A1 and B1 with all node ports 1 and 3 in the RED fabric
Zone DS5100 controller ports A2 and B2 with all node ports 2 and 4 in the BLUE fabric
9.1.3 External storage configuration planning
External storage systems provide redundancy through various RAID levels, which prevents a
single physical disk failure ...
