ESP8266 Robotics Projects

Assembling the Zumo chassis Kit

Pololu's Zumo chassis kit contains the components you will need to build a small, high-performance tracked robot platform. Tracked robots are a type of robot that use treads or caterpillar tracks instead of wheels. The kit includes the following components:

1. The Zumo chassis main body
2. 1/16" black acrylic mounting plate
3. Two drive sprockets
4. Two idler sprockets
5. Two 22-tooth silicone tracks
6. Two shoulder bolts with washers and M3 nuts
7. Four 1/4" #2-56 screws and nuts
8. Battery terminals

Figure 5.1 shows the components of the Zumo chassis kit:

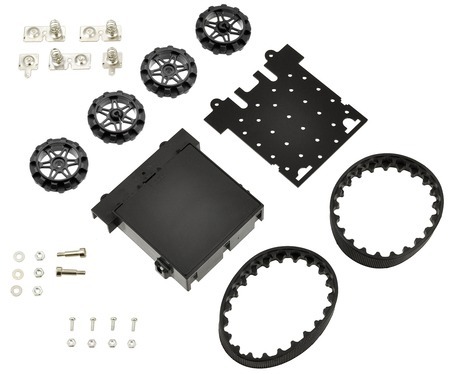

Figure 5.1: Components of the Zumo chassis kit. Image courtesy of Pololu ...
