The DC Motor + Stepper FeatherWing
The DC Motor + Stepper FeatherWing allows you to drive the two DC motors that are attached to the bottom chassis layer. Figure 4.2 shows the pinout of the DC Motor + Stepper FeatherWing, which includes the following things:
- Motor power pins: Supply 5-12V DC through these pins to drive the motors
- Motor outputs: You can connect up to 4 DC gear motors with M1, M2, M3, and M4 terminal blocks
- I2C pins: SDA and SCL

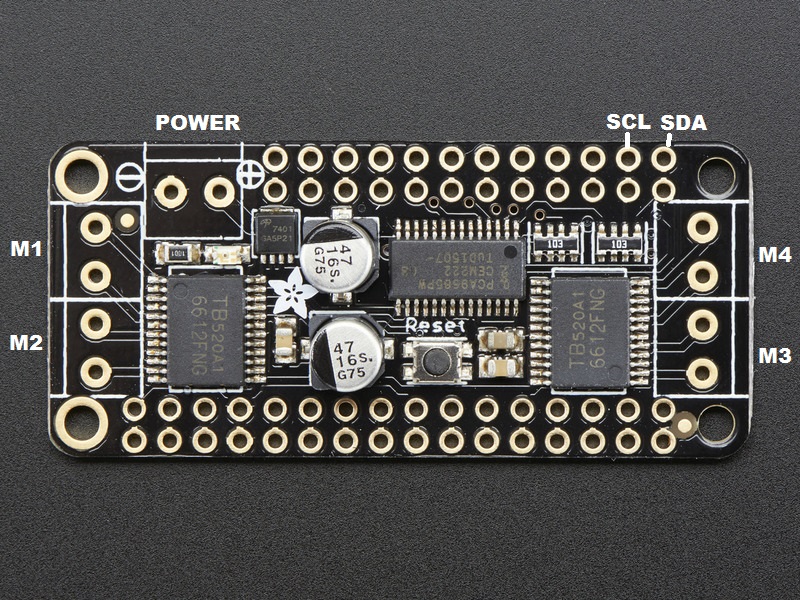

Figure 4.2: Pinout of the DC Motor + Stepper FeatherWing. Image courtesy of Adafruit Industries—https://www.adafruit.com
