Battery contacts
Before inserting batteries in the battery box of the Romi Robot Chassis, you should install the battery contacts to the slots. The following steps will describe how to install them:
- Push the two double-sided battery contacts to the slots (Figure 6.8):

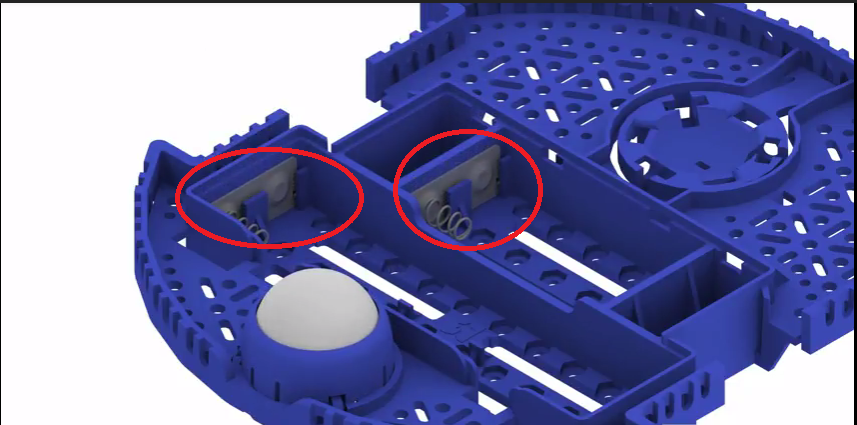

Figure 6.8: Connecting the double-sided battery contacts. Image courtesy of Pololu—https://www.pololu.com
- Turn the chassis over, and place the four individual battery contact terminals into the chassis from the top of the battery box (Figure 6.9):
Figure 6.9: Connecting the ...
