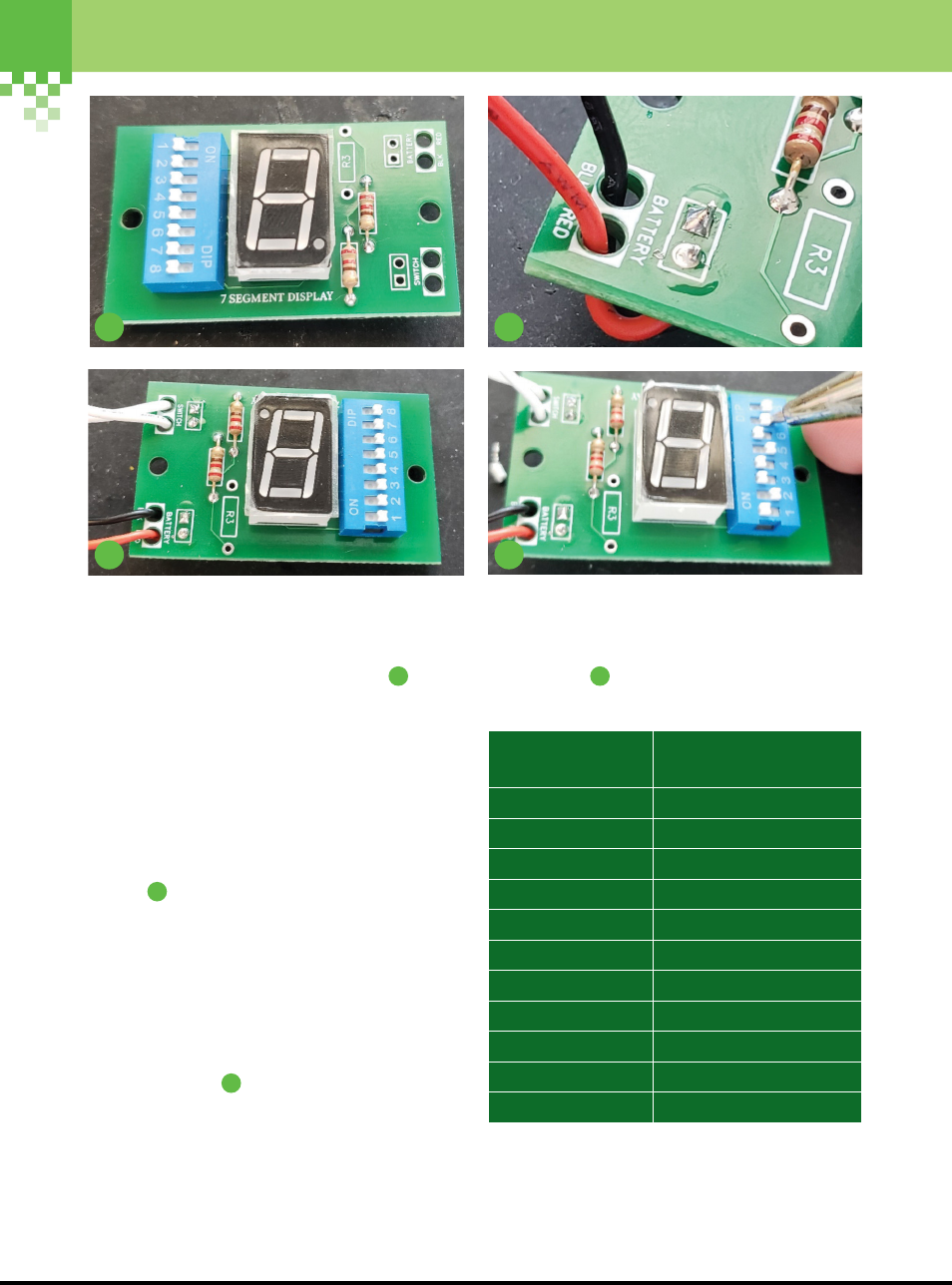

1. Following Table 2 and the letter labels printed
on the PCB, set your DIP switches to the ON
position for the digit you selected on each magic
block (Figure
H
).
TABLE 2
Selected Digit Switches to Activate
(PCB Labels)
0 A,B,C,D,E,F
1 B,C
2 A,B,D,E,G
3 A,B,C,D,G
4 B,C,F,G
5 A,C,D,F,G
6 A,C,D,E,F,G
7 A,B,C
8 A,B,C,D,E,F,G
9 A,B,C,D,F,G
Decimal point dp
2. Insert two AA batteries in each battery holder,
ensuring correct polarity.
3. Place a magnet close to each reed switch. The
digit you selected for that magic block should
If needed, reflow the connection to make sure it’s
flat. Then solder the remaining leads and trim.
5. Insert the 7-segment display (Figur ...
