Engineering Graphic Modelling

required

function

!

structure

form

material

dimension

surface

properties

achieved

required

function

j

structure

form

material

dimension

surface

properties

achieved

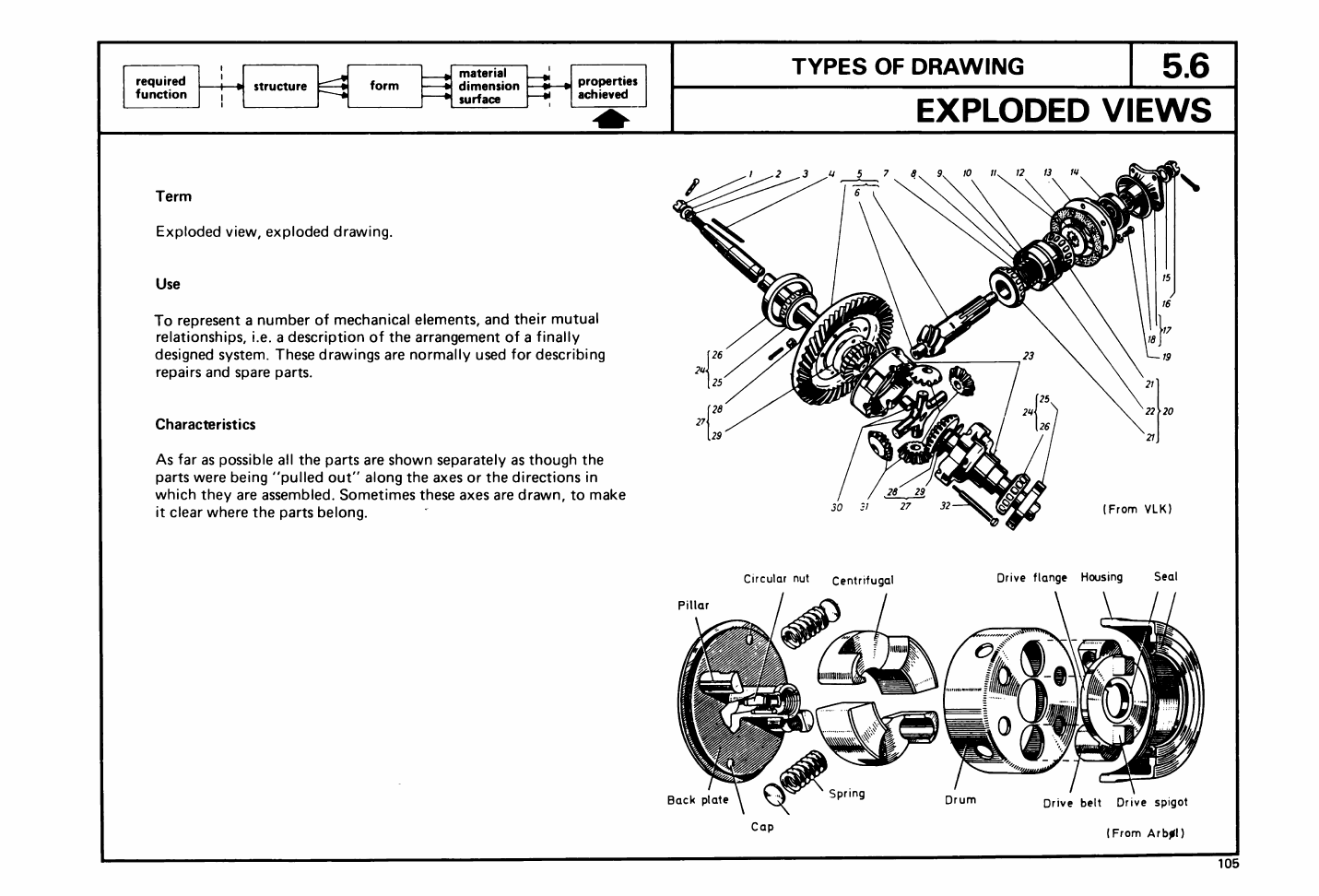

TYPES OF DRAWING

5.6

EXPLODED VIEWS

Term

Exploded view, exploded drawing.

Use

To represent a number of mechanical elements, and their mutual

relationships, i.e. a description of the arrangement of a finally

designed system. These drawings are normally used for describing

repairs and spare parts.

Characteristics

As far as possible all the parts are shown separately as though the

parts were being "pulled out" along the axes or the directions in

which they are assembled. Sometimes thes ...
