Scaling both the axes equally

By default, matplotlib will use a different scale for both the axes of a figure. In this recipe, we are going to see how to use the same scale for the two axes of a figure.

How to do it...

To accomplish this, we will need to play with the pyplot API and the Axes object, as shown in the following code:

import numpy as np
import matplotlib.pyplot as plt
T = np.linspace(0, 2 * np.pi, 1024)

plt.plot(2. * np.cos(T), np.sin(T), c = 'k', lw = 3.)
plt.axes().set_aspect('equal')

plt.show()

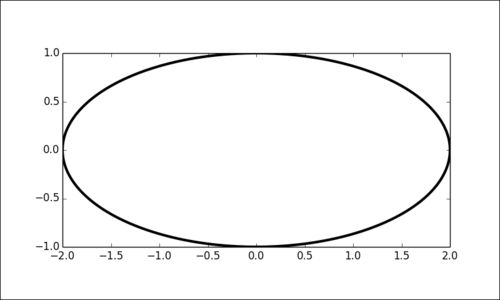

The preceding script draws an ellipse with its real aspect ratio, as follows:

How it works...

In this example, we display an ellipse where the ...
