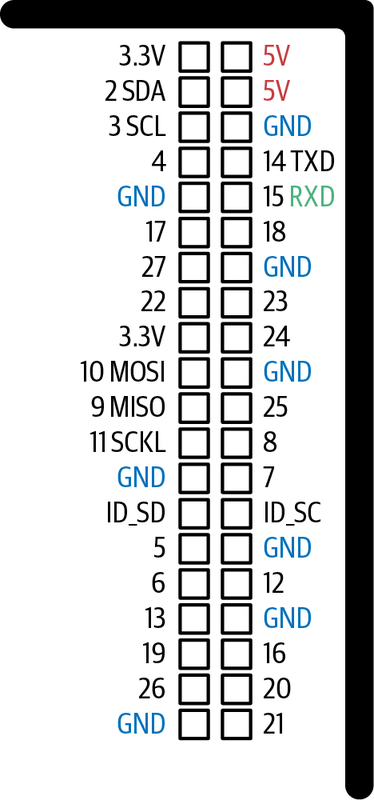

Abbildung B-1 zeigt die Pinbelegung für den aktuellen 40-poligen GPIO (General-Purpose Input/Output) Raspberry Pi.
Abbildung B-1. 40-polige GPIO-Pinbelegung des Raspberry Pi
Raspberry Pi Modell B Revision 2, A

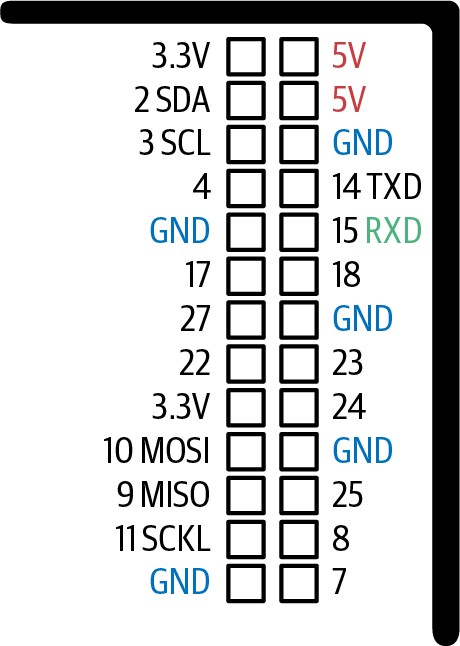

Wenn du einen der frühen 26-poligen Raspberry Pis gekauft hast, handelt es sich höchstwahrscheinlich um ein Modell B Revision 2, wie in Abbildung B-2 dargestellt. (Wenn du eine dieser ersten Ausgaben des Raspberry Pi besitzt, solltest du sie aufbewahren, denn sie könnte eines Tages wertvoll sein).
Abbildung B-2. Raspberry Pi Modell B Revision 2 und Modell A GPIO Pinbelegung
Raspberry Pi Model B Revision 1

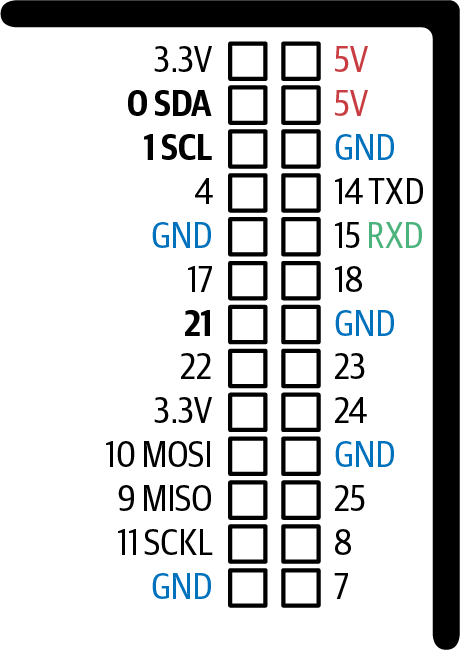

Die allererste veröffentlichte Version des Raspberry Pi Modell B (Revision 1) hat einige kleine Unterschiede in der Pinbelegung gegenüber der darauf folgenden Revision 2. Dies ist die einzige Version des Raspberry Pi, die nicht mit den späteren Pinbelegungen kompatibel ist. Die inkompatiblen Pins, die sich geändert haben, sind in Abbildung B-3 fett hervorgehoben.
Abbildung B-3. Raspberry Pi Modell B Revision 1 GPIO-Pinbelegung
Raspberry Pi Pico
Der Raspberry Pi Pico hat zwar auch ...
