Self-Test
The following problems test your understanding of the basic concepts presented in this chapter. Use a separate sheet of paper for calculations if necessary. Compare your answers with the answers provided following the test.
1. Convert the following peak or peak-to-peak values to rms values:
A. Vp = 12 V
Vrms = _____
B. Vp = 80 mV
Vrms = _____
C. Vpp = 100 V
Vrms = _____
2. Convert the following rms values to the required values shown:
A. Vrms = 120 V
Vp = _____
B. Vrms = 100 mV
Vp = _____
C. Vrms = 12 V
Vpp = _____
3. For the given value, find the period or frequency:
A. T = 16.7 ms
f = _____
B. f = 15 kHz
T = _____

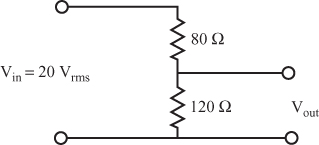

4. For the circuit shown in Figure 5.7, find the total current flow and the voltage across R2, (Vout). _____
5. Find the reactance of the following components:
A. C = 0.16 μF, f = 12 kHz
XC = _____
B. L = 5 mH, f = 30 kHz
XL = _____
6. Find the frequency necessary to cause each reactance shown:
A. C = 1 μF, XC = 200 ohms
f = _____
B. L = 50 mH, XL = 320 ohms
f = _____
7. What would be the resonant frequency for the capacitor and inductor values given in A and B of question = if they were connected in series? _____
8. What would be the resonant frequency for the capacitor and inductor values given in A and B of question 6 if they were connected in parallel? What assumption would you need to make? _____
Answers to ...
