23.5 Making the Cutout
A full isometric view of the object is now ready. But, in order to demonstrate some additional techniques, I decided to create a cutout of the object showing its two perpendicular cross-sections.
Since everything we have done so far is snapped to the grid, adding the cutout shape is very easy. Switch to the Pen tool (14.1 The Pen Tool) and click near the corners of the left side of the cross-section. Then, starting with
pressed to create a second subpath of the same path, click through for the right side:

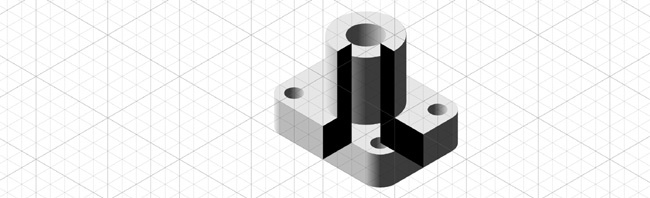

Figure 23-10. Adding ...
